U Type Teminal Connectors (U Type Terminal Blocks)

Name: U Type Teminal Connectors (U Type Terminal Blocks)
Brand: all-electronics-online.com
SKU: 837211835
Availability: InStock
Rating: 4.3 (109 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

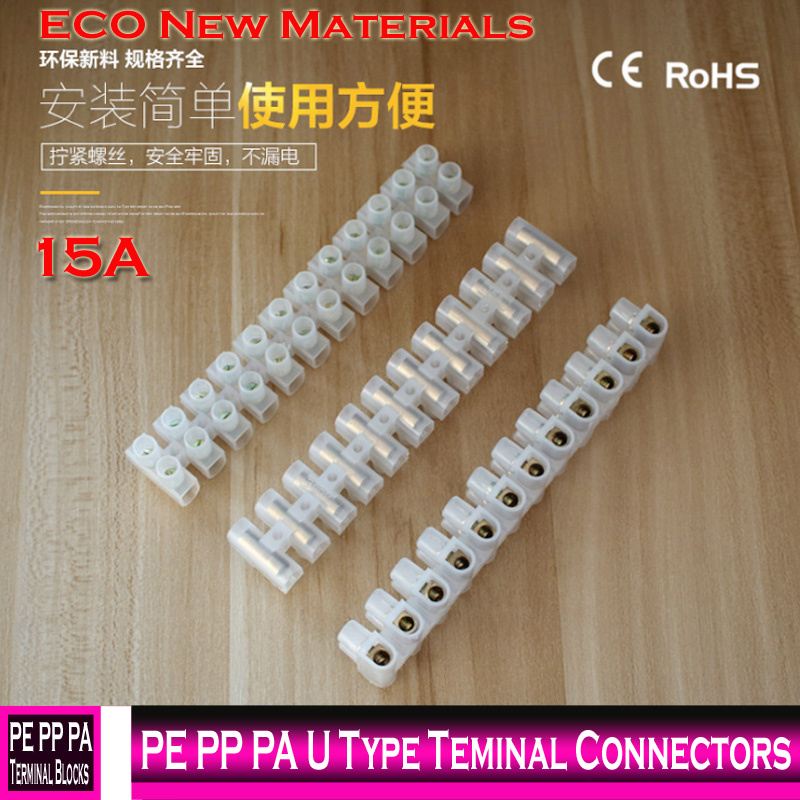

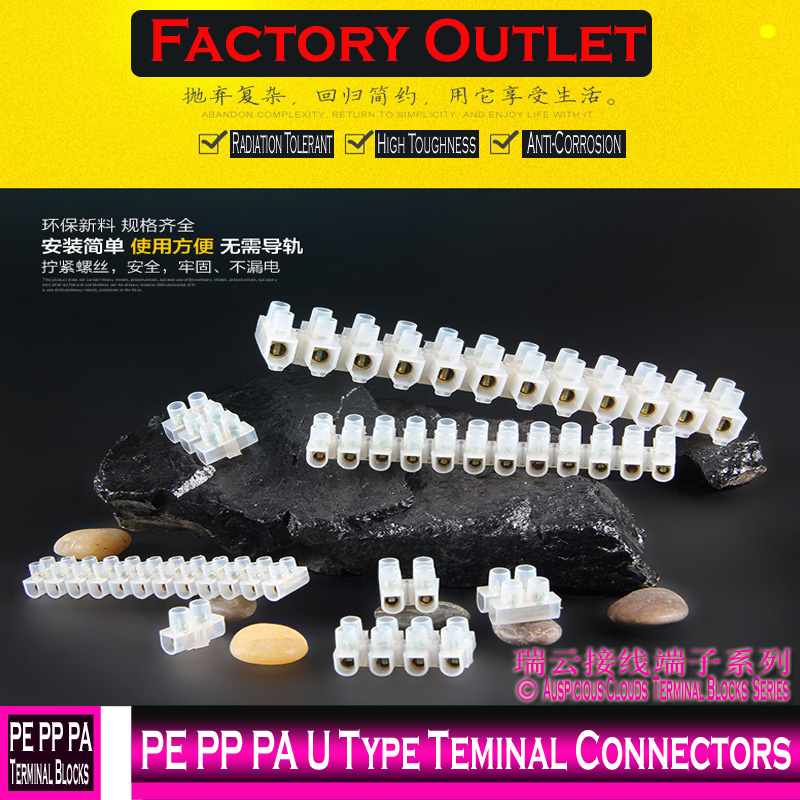

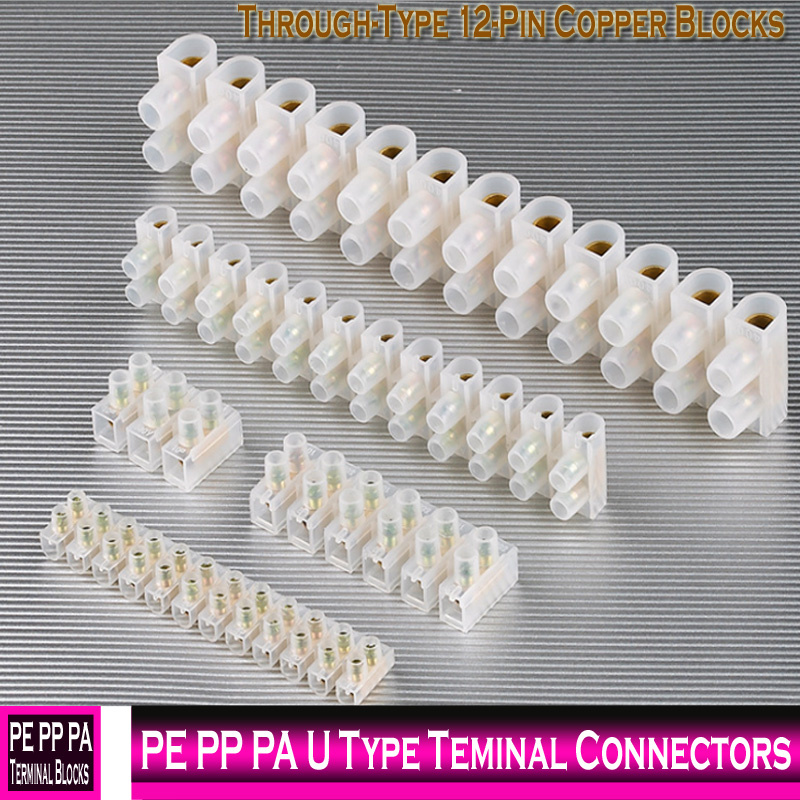

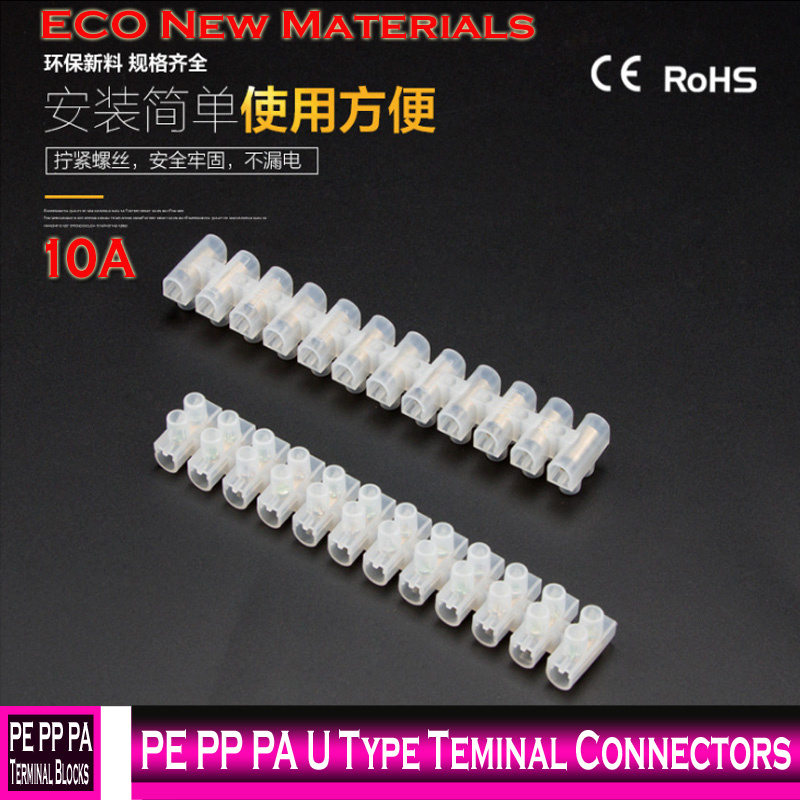

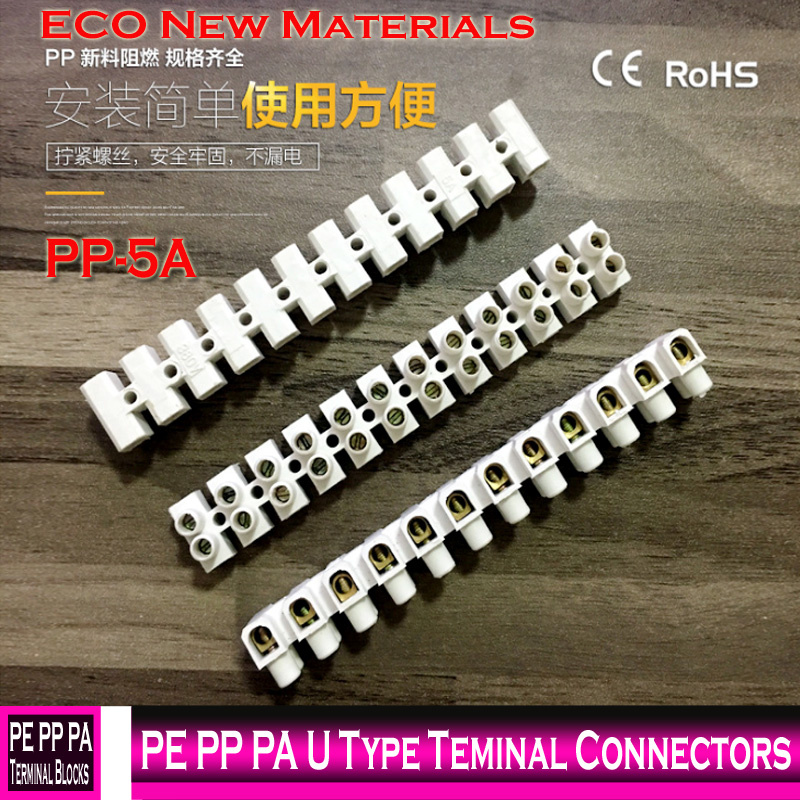

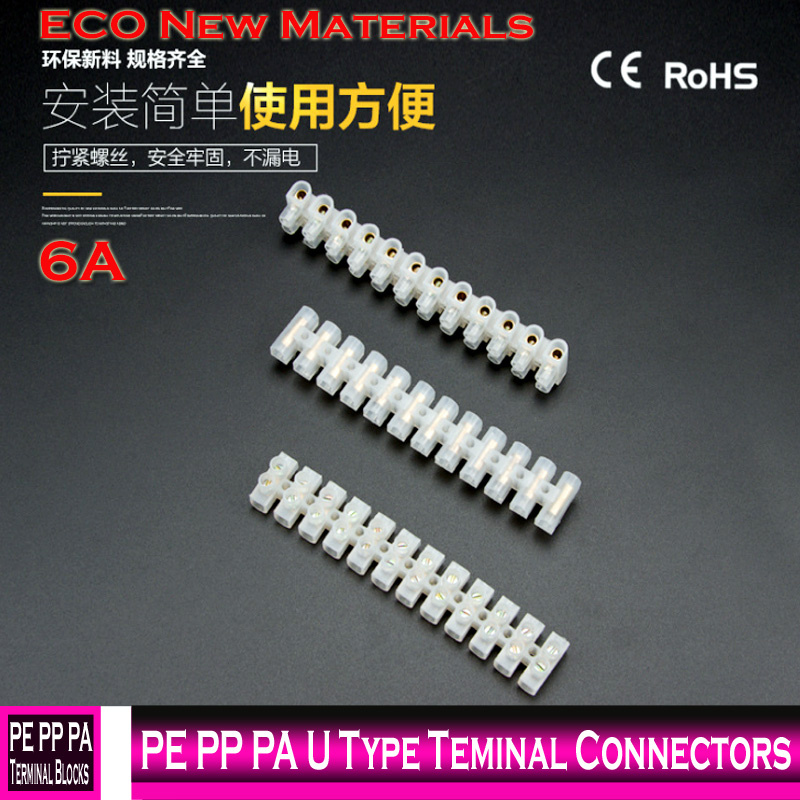

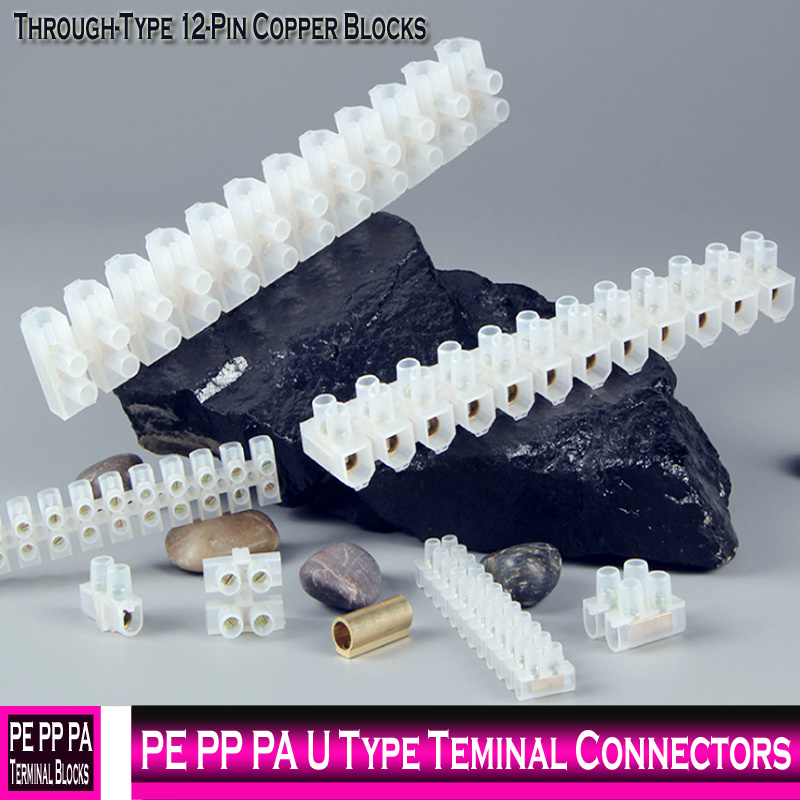

Descriptions	U Type Teminal Connectors (Terminal Blocks)
Model Type	U Type
Material	PE,PA,PP
Working Temperature	PE: -40ºC to 65ºC. PA: -30ºC to 110ºC. PP: -20ºC to 90ºC.
Color	Natural, Black, White, Yellow, Orange and any colour is available upon your request.
Material Feature	PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. PA, Polyamide 66, 94-2 grade .Inflaming retarding, good resist dissolve, good bounce impact fore. PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.
Voltage	380V

Model No.	Section Size (mm² )	L (mm)	W (mm)	H (mm)	A (mm)	B (mm)
U-3A	4mm²	93	15.5	12	5	8.2
U-5A	6mm ²	107	15	13	6	9
U-6A	6mm ²	112	17	14	7.8	9.2
U-10A	10mm²	125	21	16.5	8.7	11.1
U-15A	12mm²	134	22	18	9.8	12
U-20A	14mm ²	143	22	19	10.1	12.2
U-30A	16mm²	168	24	21	11.2	15.1
U-60A	25mm ²	193	31	24	13.8	17.2
U-80A	30mm²	208	37	30	15	19
U-100A	40mm ²	230	38	33	17.1	21
U-150A	50mm ²	260	43	34	23.1	25.2

Prod Model:	X3
Quality:	A1
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	Ce RoHS
Brand:	OEM

We are keen to offer auto parts and accessories, such as, Mass Air Flow Sensors, Nylon Cable Ties, Auto Lightings, Car Decorations, Sunglasses etc. Products. We also prouce PVC Profiles, , PVC Integrated Wall Panels, WPC, SPC etc. Plastic products.

OEM and ODM orders are welcome at any time. And, we'll regard every inquiries very seriously. So, we'll offer our professional quotations and best services to meet with any reasonable demand.

Your satisfaction is our mission. And, we'll keep insistant move with your markets. Therefore, the good and timely negotations and interflowing is very important to you and us, as well. Your correct and soon feedback information to us is the key factor of possible success cooperations between us.
