Shenzhen Fidelity Technology Co., Ltd. >> UHF RFID Middle Range Integrated Access Control Reader

UHF RFID Middle Range Integrated Access Control Reader

UHF RFID Middle Range Integrated Access Control Reader
Price: US $ 399-529/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: FDY-8120M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 300*300mm
Weight: 1.9kg
Working Frequency: 860MHz~960MHz
Air Interface Protocol: EPC Class 1 Gen 2 / ISO 18000-6c
Multi-Tags Identification: > 500 PCS
Type: UHF RFID Reader
Card Type: UHF RFID Tag

Product Description

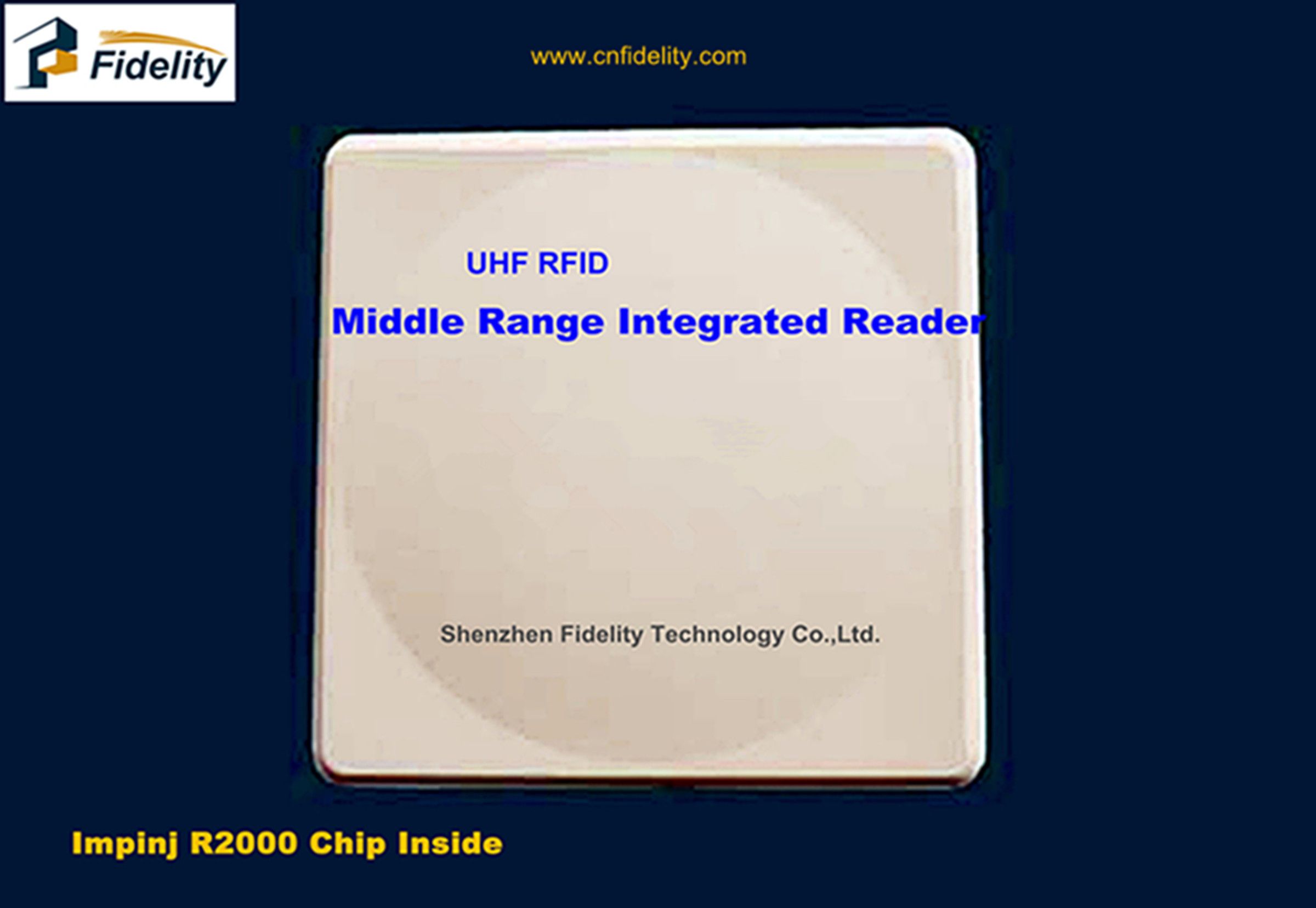

UHF RFID Middle Range Integrated Access Control Reader


Features:

Based on Indy R2000 chip.

The performance of INDY R2000 to an extreme.

Excellent thermal performance, long working hours without significant thermal.

Full industrial-grade design, the core components are military grade.

Ultra-low-power design, reducing energy consumption.

Internal software is optimized repeatedly.

Multiple protection circuit, providing comprehensive protection.

Parameters:
Dimension300mm X 300mm
Weight1.9KG
MaterialDie-cast aluminum body & Engineering plastic antenna panel
Operating Temperature- 20 °C - + 55 °C
Storage Temperature- 20 °C - + 85 °C
Humidity< 95% ( + 25 °C)
Air Interface ProtocolEPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Working Frequency860MHz - 960MHz
Supported RegionsUS, Canada and other regions following U. S. FCC
Europe and other regions following ETSI EN 302 208 with & without LBT regulations
Mainland China
Japan
Korea
Malaysia
Taiwan
RF output interface4 N-type connector / Integrated Antenna 10dBi
Output Power30dBm
Read Range3~5M
Multi-tags Identification> 500 PCS
Read Speed> 500 PCS/s
Tag RSSISupported
Antenna DetectorSupported
Working ModeSingle/DRM
Communication InterfaceSerial: RS-232 Console (dB9)
Wiegand 26
I/O4 configurable IO
Max Power Consumption< 7W (RF Output 30dBm)
Heat DissipationAir cooling
Shenzhen Fidelity Technology Co., Ltd. is a high-tech corporation, which specialise in researching and developing of RFID reader and tags. As the leading supplier of RFID euipments in China, we commit ourselves to supply our customers for products with reliable reading range, excellent performance and good prices. Fidelity Co. Has its independent RFID technology and splendid passionate team----outstanding professional experienced engineers, and aspiring sales. Our production line covers 860~960MHz integrated readers, HF&UHF RFID handheld reader, UHF multi-channel readers, 2.45G readers, antennas, electronic tags and RFID applying system.

At present, Fidelity series RFID readers has very full-blown application in intelligent vehicle management field. Many vehicle management projects of famous residential area, army, dock&port, large oil&chemical industry, and iron group all use our products. Besides, we are expanding our products spread such fields: Personnel alleyway, garment management, tabacco logistics, inventory management, library management, production management, finance escort in transportation, asset management, etc. And we also have trial projects in these fields now.

Fidelity Technology is based in shenzhen, China. Our sales network has covered all over the world: North America, North Europe, Middle East, Africa, Southeast Asia, and East Asia. Fidelity people will work hard all the time to satisfy and benefit our customers.
