| Prod Model: |
CEWP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
20A-80A |
| IP: |
56 |
| Models: |
Other Models Can Be Supplied |
| Type: |
Low-voltage |
| Certification: |
CE |
| Installation: |
External Application for Cables |
| Brand: |
Cea |
Product Description

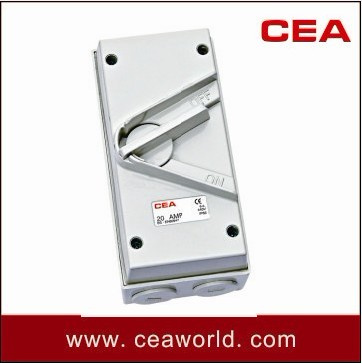

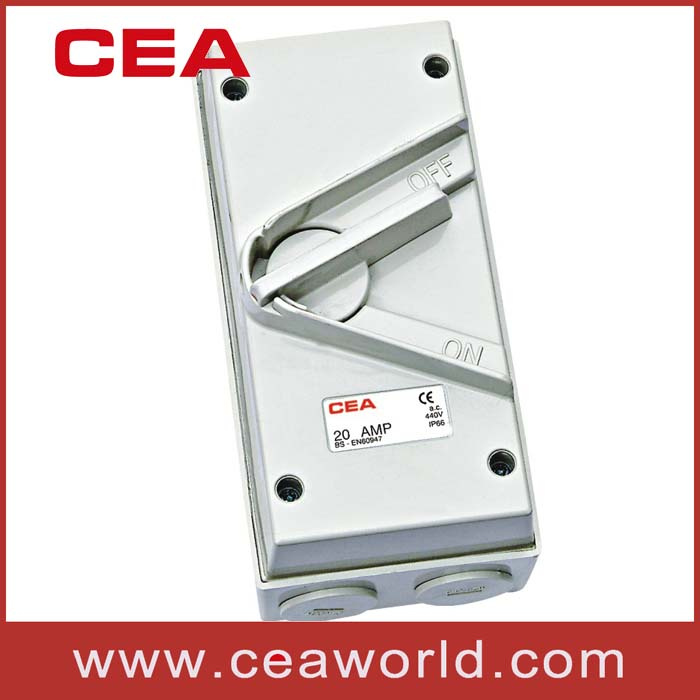

Weather Protected Isolation Switch, UKF Isolator Switch
The Series of weather protected isolating switch is a robust range of switch suitable virtually for any external application. Included in the range is single, double and triple pole switches from 20 to 80A. The base mounted mechanism provides for easier termination and more wiring room, switch dimensions are 165mmx82mm with an overall height of 85mm.
Isolating switches
Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal stripping lengths and secure clamping for all cables. Terminal bore size 5x6.6mm. A safety feature for mounting switches to metal structures is the insulting caps that cover base mounting screws to protect them from any live cables.
| Products Available | Phase& Voltage | In Rating |
| CEWP1-20 | 20A 250V Single pole surface switch
Terminals accommodate 16mm 2 cables. M Rating220 | 56 |
| CEWP1-35 | 35A/63A 250V Single pole.
Terminals accommodate 16mm 2 cables. M Rating220 | 56 |
CEWP1-20A-16
CEWP1-35A-16
CEWP1-63A-25 | Single phase 250V
Conduit: 25mm | 56 |
CEWP2-20A-16
CEWP2-35A-16
CEWP2-63A-25 | Double phase 440V
Conduit: 25mm | 56 |
CEWP3-20A-16
CEWP3-35A-16
CEWP3-63A-25 | Three phase 440V
Conduit: 25mm | 56 |
CEWP3-55A-25
CEWP3-63A-25
CEWP3-80A-25 | Three phase 440V
Conduit: 32mm | 56 |
| CEWP2-20 | 20A 440V Double pole
Terminals accommodate 16mm 2 cables. M Rating180 | 56 |
| CEWP2-35 | 35A 440V Double pole
Terminals accommodate 16mm 2 cables. M Rating180 | 56 |
| CEWP2-63 | 63A 440V Double pole.
Terminals accommodate 25mm 2 cables. M Rating160 | 56 |
| CEWP3-20 | 20A 440V Triple pole
Terminals accommodate 16mm 2 cables. M Rating180 | 56 |
| CEWP3-35 | 35A 440V Triple pole
Terminals accommodate 16mm 2 cables. M Rating180 | 56 |
| CEWP3-55 | 55A 440V Triple pole
Terminals accommodate 16mm 2 cables. M Rating160 | 56 |
| CEWP3-55-32CE | 55A 440V Triple pole. with 32mm
conduit entry at each end.
Terminals accommodate 25mm 2 cables. M Rating160 | 56 |
| CEWP3-63-32CE | 63A 440V Triple pole. with 32mm
conduit entry at each end.
Terminals accommodate 25mm 2 cables. M Rating160 | 56 |
| CEWP3-80-32CE | 80A 440V Triple pole. with 32mm
conduit entry at each end.
Terminals accommodate 25mm 2 cables. M Rating150 | 56 |
Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.
The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
