UL 1332 AWG 18 FEP Teflon Insulated Wire

Name: UL 1332 AWG 18 FEP Teflon Insulated Wire
Brand: all-electronics-online.com
SKU: 669716741
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 0.2-2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

DETAILED SPECIFICATIONS

UL 1332 AWG 18 FEP Teflon insulated wire

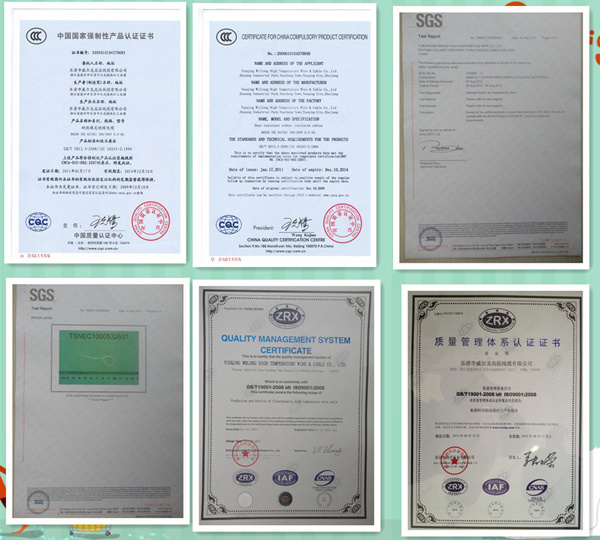

UL certificate RoHS CCC

GB/T19001 ISO9001

Nominal Voltage: 300V

Temperature Range: -100~+200

O. D. Tolerance: ± 0.10mm

Testing Volta: 2500V

Conductor: Tinned Copper

Insulator: FEP TEFLON

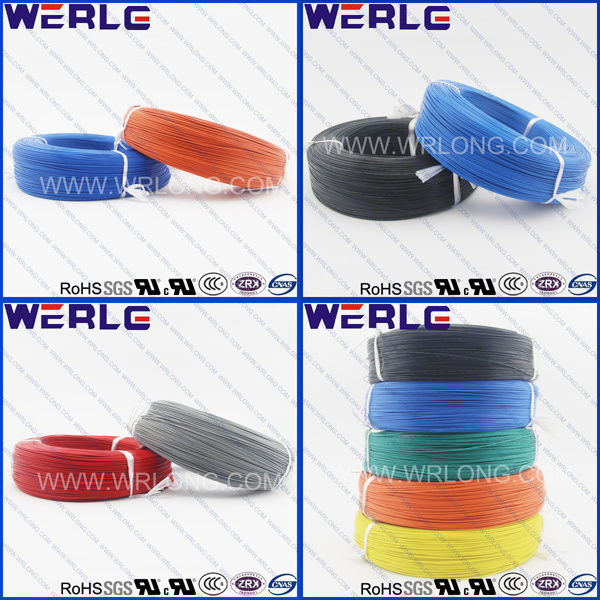

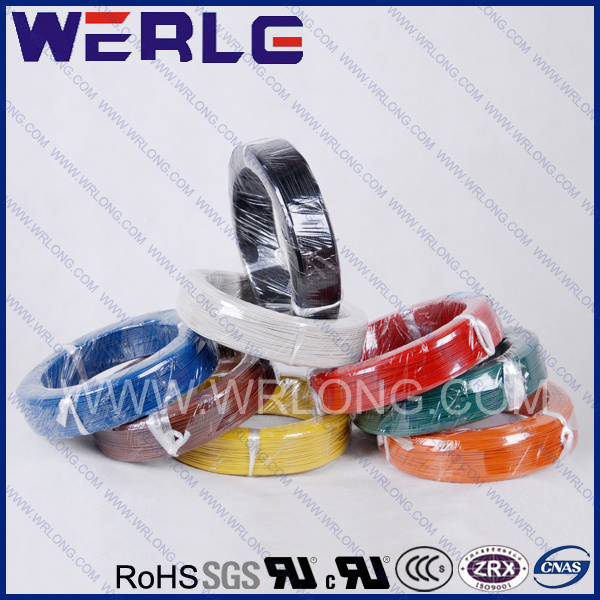

Colours: Whit-bule-red-black-brown-yello-wgreen-transparent-yellow/green

They are the same with then inner fixed wires for Home Electric applinaces, Lighthing equipments, mechanical electrical machines

Conductor			Insulator		Electrical Characteristic		Packing
AWG	Conductor Construction No./mm	Diameter mm	Insulator Thickness mm	Over Diamter mm	Realst.max Cuc,c20ocohm/km	Permissible ampacity 20oc-AMP	mt/coils
30	7x0.10	0.33	0.33	0.96	376.96	0.66	610
28	7x0.12	0.36	0.33	1.02	237.25	1.05	610
26	7X0.16	0.48	0.33	1.14	148.94	1.61	610
26	1x0.4		0.33	1.06	148.94	1.61	610
24	7X0.20	0.60	0.33	1.26	93.25	2.57	610
24	19X0.12	0.60	0.33	1.26	93.25	2.57	610
22	7X0.25	0.75	0.33	1.41	55.00	4.36	610
22	19X0.15	0.75	0.33	1.41	55.00	4.36	610
20	7X0.31	0.93	0.33	1.59	34.60	6.94	610
20	19X0.19	0.95	0.33	1.61	34.60	6.94	610
18	7X0.39	1.17	0.33	1.83	21.80	11.01	610
18	19X0.235	1.18	0.33	1.84	21.80	11.01	610
16	7X0.50	1.50	0.33	2.16	13.70	17.52	305
16	19X0.30	1.50	0.33	2.16	13.70	17.52	305
14	19X0.37	1.85	0.33	2.51	8.62	27.84	305
12	19X0.48	2.40	0.33	3.06	5.43	44.20	305
10	37X0.43	3.01	0.33	3.67	3.41	70.38	305

Prod Model:	UL 1332
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
UL Certificate:	UL 1332
Size:	AWG 18
Insulator Material:	FEP Teflon
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Insulation Material:	Teflon
Certification:	RoHS
Conductor Material:	Tinned Copper
Sheath Material:	Teflon
Range Of Application:	Heat Resistant
Brand:	Werle

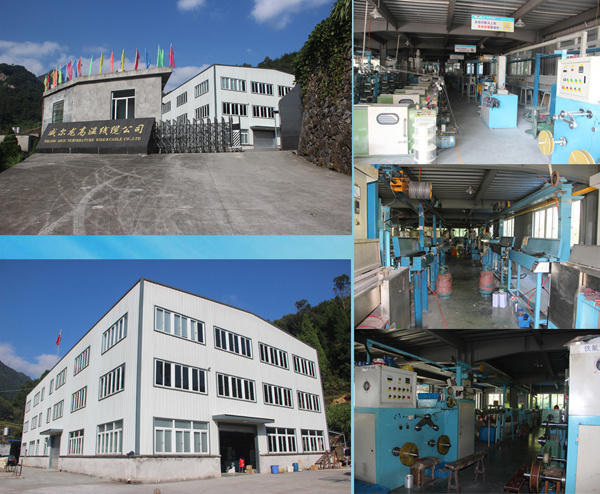

ZHEJIANG WRLONG HIGH TEMPERATURE WIRE & CABLE Co., Ltd is a modernized enterprise which has specialized in high-temperature wire and cable for many years. It locates in the biggest production base of low-voltage appliance in China_YUEQING CITY, ZHEJIANG PROVINCE and it is next to OUJIANG rivers whose throughput is beyond thousands of ton every day as well. It is obvious that its transportation or traffic is very convenient and expeditious.

Our company owns the most advanced production equipment in China at present and we have imported the direct inverter microcomputer-controlled production line device from England. It has all sorts of detection device, abundant funds and trained professionally technicians as well.

Our leading products contain the teflon wire and cable which is used in Aerospace and Astronautics and high - temperature wire and cable which contains the fluoropolymers. Its types have AF46-200, AFK-250, AFPF-200, KFFR-250 and so on. Our company also produce high-temperature precise compensating conductor and its types are KX, KC, BC, SC, EX, IX, TX, NX, NC, EX and so on.

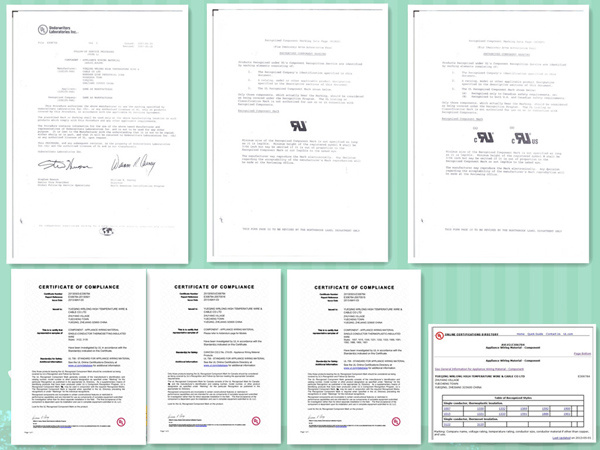

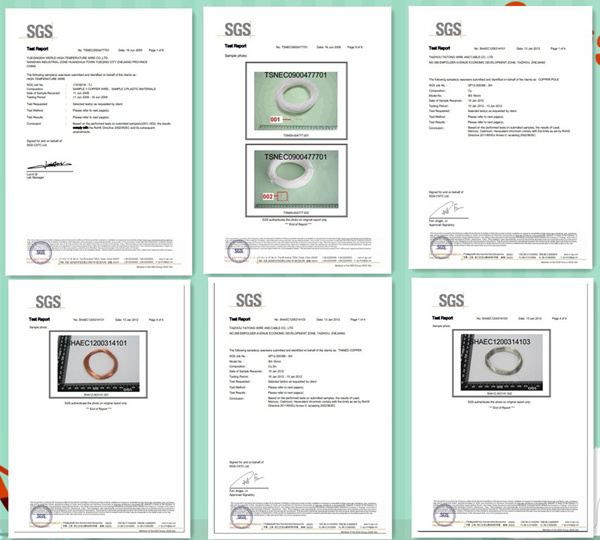

Our products have passed the certification of ISO9001-200, CCC, RoHS, UL and other test reports for the products from relevant organizations or institutions with the persistent efforts of all of the staff in WERLE and the products can find a ready market all over the world.

Our company sticks to regard the technology as guide, quality in pursuit of development as management ideas, quality create famous brands as tenet and thinks highly of quality management of the products in order to realize the integration of production, detection, selling and service and internationalization of the markets.

Society developping and make progresses gradually, WERLE strives with pressure, explore with urgence, struggle with blueprint and contend with smile for better future with the new and old clients together!
