| Prod Model: |
UL PV |
| Fire-Resistant Performance: |
UL1581 VW-1 |
| Low-Temperature Properties: |
UL854 |
| Stability Factor: |
UL854 |
| UV Resistant: |
UL2556 |
| Executive Standard: |
UL 4703 |
| Free Sample: |
Available |
| Cable Flexibility: |
Flexible |
| Test Voltage: |
600V |
| Conformity Standard: |
RoHS |
| Item Name: |
Tinned Copper Single Core Solar PV Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Solar Power System/Construction |
| Insulation Material: |
XLPE |
| Certification: |
TUV/PSE/SAA |
| Conductor Material: |
Bare Copper or Tinned Copper |
| Sheath Material: |
XLPE |
| Material Shape: |
Round Cable |
| Range Of Application: |
LSZH, Flame Retardant,UV Resistant |
| Brand: |
Jiukai/OEM |
Product Description

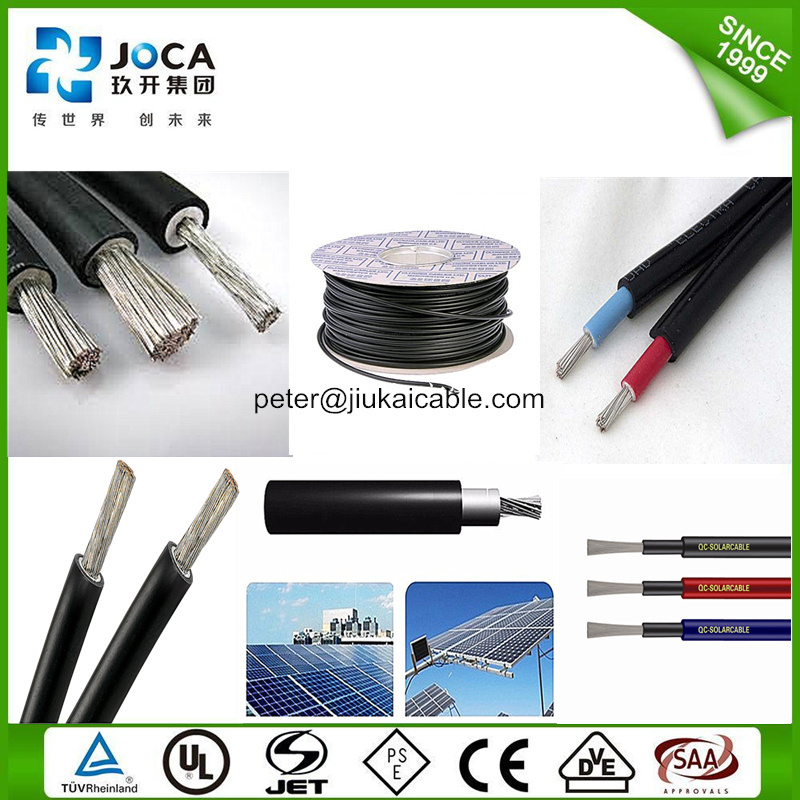

UL Approved Tinned Copper Single Core Solar PV CableApplication: Mainly used in wiring of solar power system with earth or no earth.
Construction1.Conductor: Stranded bare copper or tinned copper, electric property&Structure in accordance with ASTMB33 or ASTM B172 flexible conductor requirement.
2.Insulation:ROHS thermosetting insulation material, prior color black or as per customer's request.
3.Outer Sheath:LSZH&UV-resistant electron-beam cross-linked thermosetting Polyolefin copolymer ROHS material, prior color black or as per customer's request.
Technical Specification1.Nominal Voltage: 600V(AC),1000V(AC) 2000V(AC)
2.Test Voltage: U=600V
18-10AWG U0=3000V 50HZ 1min
8-2AWG U0=3500V 50HZ 1min
1-4/0AWG U0=4000V 50HZ 1min
1000V(AC) 2000V(AC)
18-10AWG U0=6000V 50HZ 1min
8-2AWG U0=7500V 50HZ 1min
1-4/0AWG U0=9000V 50HZ 1min
3.Temperature Rating:Working Temperature -40ºC~+90ºC, max conductor Temperature 125ºC, Allowable short circuit temperature 200ºC in 5 second.
4.Service life: Expected life span≥25years
5.Bending Radius: Fixed installation>4D , occasionally moved>5D .
Material Properties/Standards1.Fire-resistant Performance: UL1581 VW-1
2.Low-Temperature Properties:UL854
3.Stability Factor: UL854
4.UV Resistant: UL2556
5.Executive Standard: UL4703
Dimensions&Parameter for UL PV cable| Size(AWG) | Conductor Construction(n/mm) | 600V Finished Cable OD(mm) | 1000V&2000V Finished Cable OD(mm) | Max. DC Resistance(20ºC)(Ω/km) |
| 18 | 16/0.254 | 4.25 | 5.00 | 23.2 |
| 16 | 26/0.254 | 4.55 | 5.30 | 14.6 |
| 14 | 41/0.254 | 4.95 | 5.70 | 8.96 |
| 12 | 65/0.254 | 5.40 | 6.20 | 5.64 |
| 10 | 105/0.254 | 6.20 | 6.90 | 3.546 |
| 8 | 168/0.254 | 7.90 | 8.40 | 2.23 |
| 6 | 266/0.254 | 9.80 | 10.30 | 1.403 |
| 4 | 420/0.254 | 11.7 | 11.70 | 0.882 |
| 2 | 665/0.254 | 13.3 | 13.40 | 0.5548 |
| 1 | 836/0.254 | 15.2 | 16.10 | 0.4398 |
| 1/0 | 1045/0.254 | 17.0 | 17.10 | 0.3487 |
| 2/0 | 1330/0.254 | 18.3 | 18.80 | 0.2766 |
| 3/0 | 1672/0.254 | 19.8 | 20.40 | 0.2194 |
| 4/0 | 2109/0.254 | 21.5 | 22.10 | 0.1722 |
Advantages of this UL PV cable1.Electron-beam cross-linked compounds.
2.UV,ozone and hydrolysis resistant.
3.High temperature resistant,the materials do not melt or flow.
4.Good cold flexibility
5.Very long service life>25 years at 90ºC.
6.Compatible to all popular connectors.

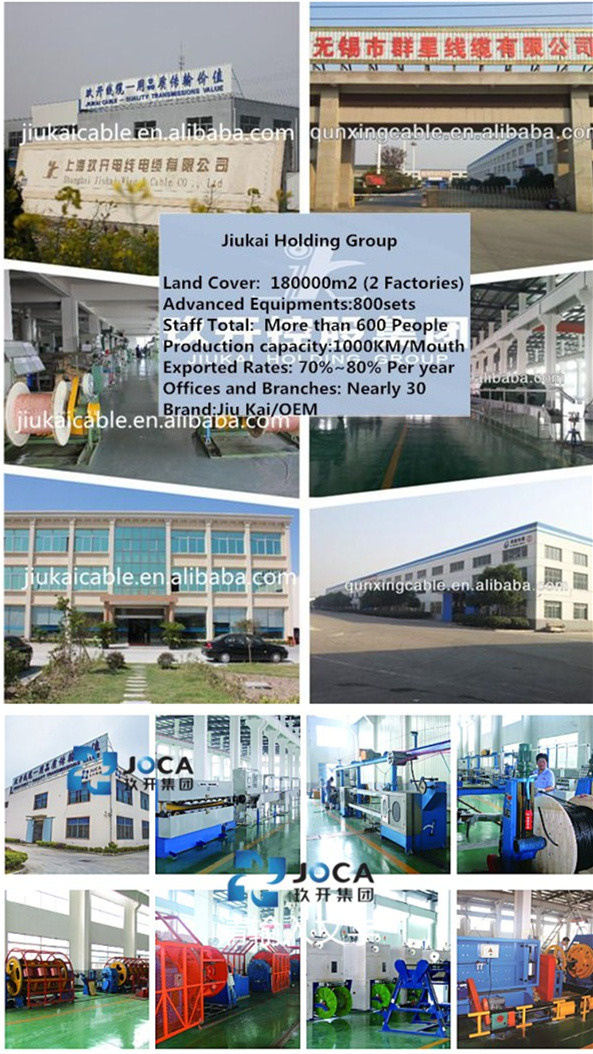

Group Profile JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry. We mainly produce 10 categories(thousands of kinds)cables, such as audio&video cable, elevator cable, data cables,computer cable, CAT5E LAN cable, CAT6E cable, solar PV cable, UL Wire,flexible cable and special cable.
With so many years' manufacturing experience, our cables are well sold to America, Europe,Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE Certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises","China Top Brand" and "China Cable Manufacturer TOP100.
Main Products1.Solar Cable2.IP67 MC4 Connector3.Elevator Cable4.TPS Cable5.Coxial Cable6.Flexible Power Cable 0.6/1kv7.CE Sheathed Cable8.UL&CE Standard WireAdvantages1.Large Scale Factory-Encolsed Company Information File.2.Complete Qualified Approvals.3.OEM, Quality is guaranteed.4.Wire&Cable with High Quality&Competitive Price.5.Import-Exported Operating Licence.6.Short Dlivery Time.Packing&Shipping for Tinned Copper Single Core Solar PV Cable
Our Services1.Jiukai sends all the items with Outgoing Quality Inspection Report.
2.The Copy of UL Certification will be sent along with the products.
3.We guarantee 100% good quality when the products are sent out of factory.
4.Jiukai ships to the Worldwide.
5.Most orders will be shipped within 7days on payment received.
6.We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most of the countries within 7days.
7.Once we shipped the products, our after-sale service will send you the tracking number.
8.If your item is not as described or faulty when you receive it, we will replace it for you with no additional charge.
9.If the item is found non-defective, the item will be sent back to the buyer at buyer's expense.Why Choose Us1.Many Years of experience for supplying the OEM and customized cables to many World Leader Cable Group.
2..Always Work for more profit for customer with our competitive Price .
3.TUV, UL,CCC Certificate etc has been passed .Quality Guarantee for 15years. FAQQ1. What is your terms of packing?A: Generally, we pack our goods in wooden pallet or wooden case. And we aslo can put your brand or LOGO on packaging after getting your authorization letters.Q2. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your terms of delivery?A: EXW, FOB, CFR, CIF, DDU.Q4. How about your delivery time?A: Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q5. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q6. What is your sample policy?A: We can supply free sample if we have ready parts in stock.Q7. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ8: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.Contact Us
UL Approved Tinned Copper Single Core Solar PV Cable
"...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.

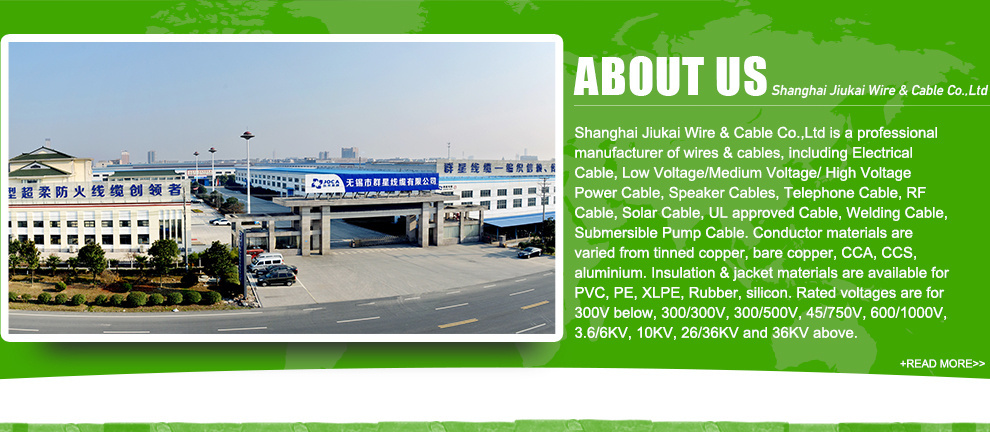

Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
