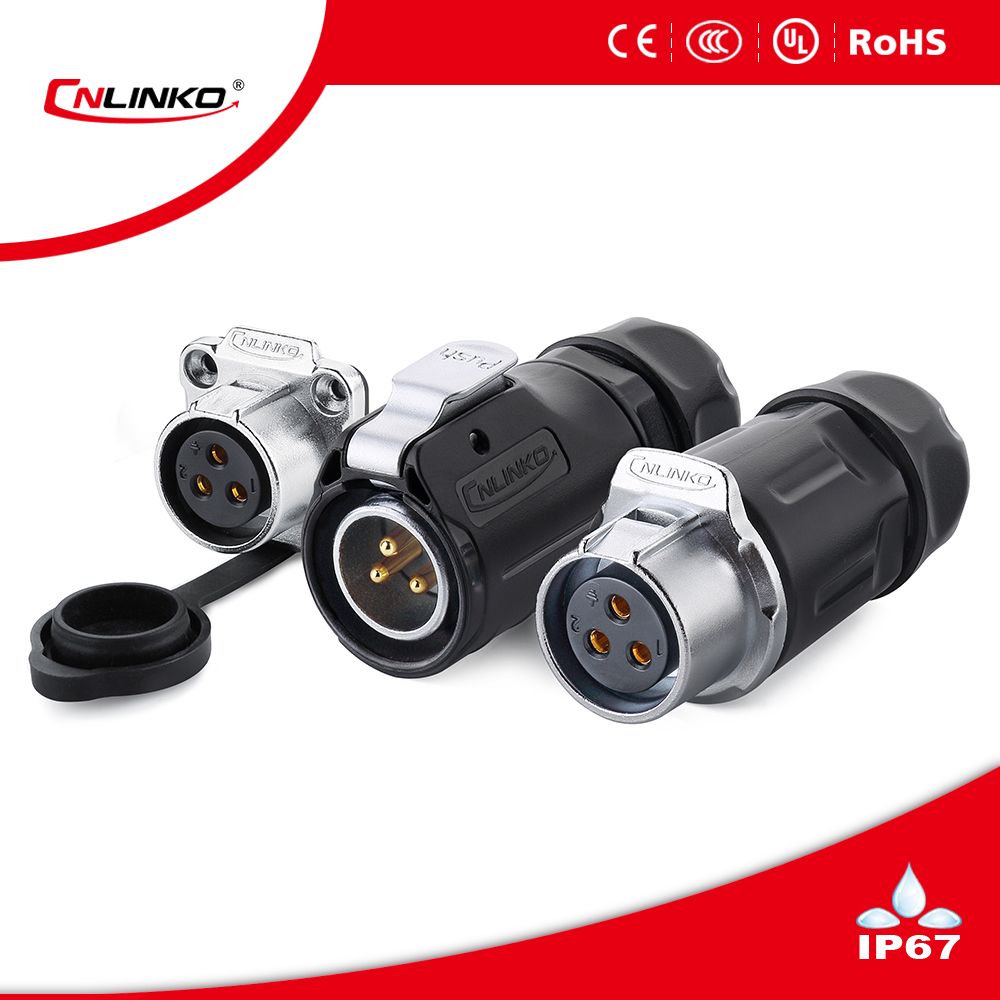

UL Approved Waterproof IP68 Power Connector/3pin Connector

Name: UL Approved Waterproof IP68 Power Connector/3pin Connector
Brand: all-electronics-online.com
SKU: 775665405
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 2.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

UL Approved Waterproof IP68 Power Connector/3pin Connector

Cnlinko waterproof connector has been widely used in:

1: LED outdoor lighting
2: solar panel
3: power equipment
4: LED display or LED screen
5: LED tri-proof lighting

Data Sheet:

- Cable Specification: 2.5mm² ~ 4 mm² /14~12AWG
- Diameter Range: Φ8mm ~Φ12mm
- Contact Diameter x number: Φ2.7×3
- Rated Current (A): 20A
- Operating voltage(AC.V.rms): 500V
- Contact resistance: <1mΩ
- Withstanding voltage(AC.V)1minute: 2500V
- Insulation resistance:>500mΩ
- Protection Level: IP67
- Durability:≥500 times plugin /out
- Working Temperature:-40°C~80°C
- Connecting mode: easy locking type
- Assembly wire: Soldering
- Housing&Insulation parts materials: High-performance engineering plastics
- with zinc alloy hardware and copper pins
- with silica gel materials waterproof cap
- UL94-V0 Flammability

Packaging & Payment term & Shippment
Packaging: 10pcs/small box, 240pcs/ctn
Payment term: T/T, Western Union, Paypal
Shippment: By express, by sea, by air

Prod Model:	LP-20-C03PE-01-001, LP-20-J03SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	UL, Ce, CCC, TUV, ISO9001, RoHS, IP67
Used For:	LED Outdoor Lighting
Current Rated:	20A
Operating Voltage:	500V
Protection Level:	IP67
Sample:	Free Avaliable
Connecting Mode:	Easy Locking Type
Assembly Wire:	Soldering/ Crimping
Flammability Rating:	UL94-V0
Hardware:	Zinc Alloy (Pearl Hard Chrome)
Application:	UHF
Gender:	Male Plug and Female Socket

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
