| Prod Model: |
SHPT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
230V,120V, |
| Heating Cable Lengths: |
1~61m |
| Power: |
16W/M, 7W/FT |
| With Thermostat: |
Imported From Japan |
| Certificate: |
Ce, GS, VDE,IP68 |
| Cold Cable Length: |
2m or You Need |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Heating |
| Insulation Material: |
PVC |
| Certification: |
IP68 |
| Conductor Material: |
Alloy Wire |
| Range Of Application: |
Water Pipe |
| Brand: |
Senphus |
Product Description

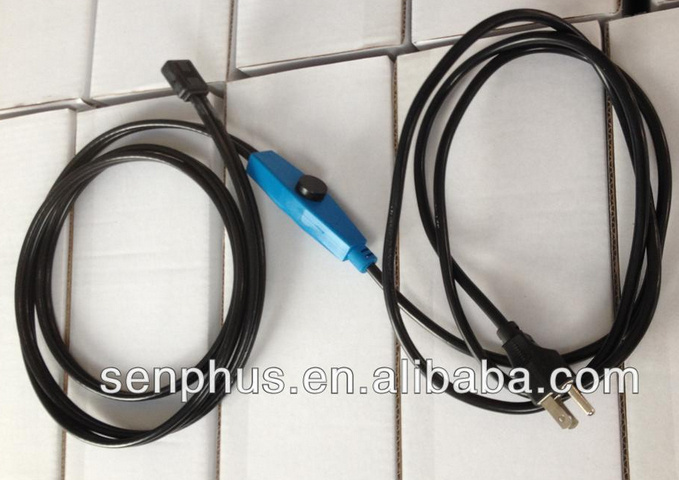

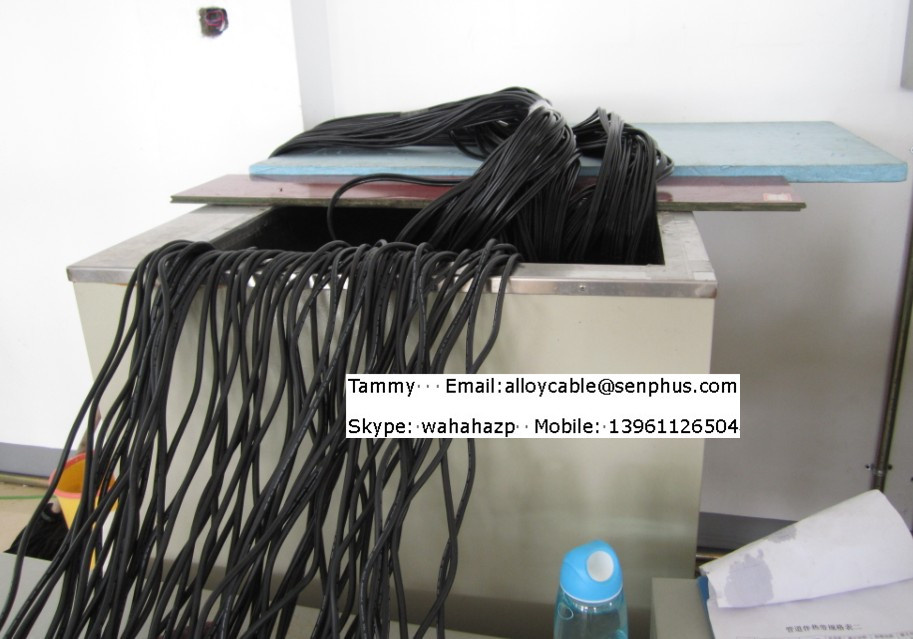

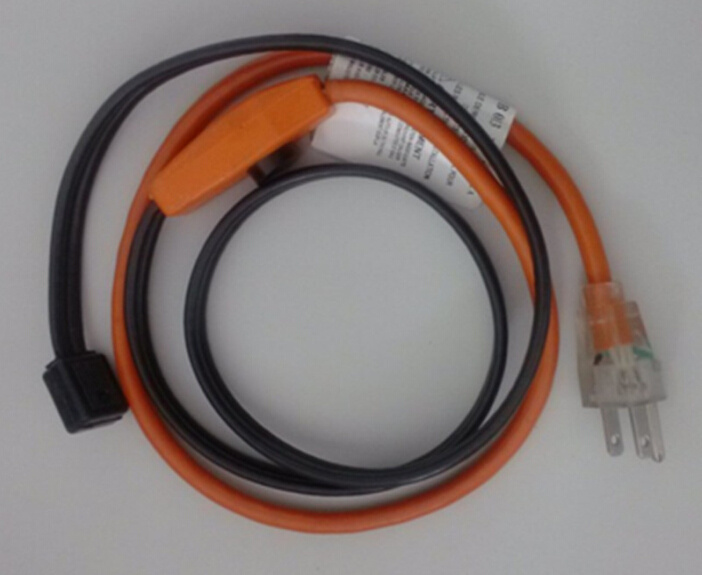

UL GS CE water pipe tracing cable The cables are tested more than 10 times procedures. Very Safe and high quality. You could buy and use confidently.Specification of water pipe tracing cable :
Senphus type |
Heated section Length |
Power |
With thermostat |
Without thermostat |
M |
W |
SHPT-16-2M-2 |
SHPT-16-2M |
2 |
32 |
SHPT-16-4M-2 |
SHPT-16-4M |
4 |
64 |
SHPT-16-6M-2 |
SHPT-16-6M |
6 |
96 |
SHPT-16-8M-2 |
SHPT-16-8M |
8 |
128 |
SHPT-16-10M-2 |
SHPT-16-10M |
10 |
160 |
SHPT-16-12M-2 |
SHPT-16-12M |
12 |
192 |
SHPT-16-13M-2 |
SHPT-16-13M |
13 |
208 |
SHPT-16-14M-2 |
SHPT-16-14M |
14 |
224 |
SHPT-16-16M-2 |
SHPT-16-16M |
16 |
256 |
SHPT-16-19M-2 |
SHPT-16-19M |
19 |
304 |
SHPT-16-22M-2 |
SHPT-16-22M |
22 |
352 |
SHPT-16-25M-2 |
SHPT-16-25M |
25 |
400 |
SHPT-16-36M-2 |
SHPT-16-36M |
36 |
576 |
SHPT-16-37M-2 |
SHPT-16-37M |
37 |
592 |
SHPT-16-48M-2 |
SHPT-16-48M |
48 |
768 |
SHPT-16-49M-2 |
SHPT-16-49M |
49 |
784 |
Note
Voltage, Power, Cold Lead Plug, ect, can be designed according to customer's requirements. For example, 220/230V, 17w/m,16w/m or 20w/m,23w/m,etc.
Thermostat: imported from Japan
Package: plastic bag+small carton + big carton(16 or 10 small in one big carton)
The advantage of water pipe heating cable:
Easy
Fit heating cable with insulating tape to the water pipe. Then only plug in the mains cord-READY
Safe
CE-approved
Comfortable
Never thaw out water pipes again or carry heavy water buckets in winter. Suitable for all
water pipes whatever plastic or copper
Trusty
The thermostat automatically switches the heating cable as soon as the water pipe drops below +3
degree. Additionally an insulating tube can be used for maximum protection down to -45 degree.
Attention!
Do not cut the heating cable!
Do not install where it can be damaged by game animals.-protect against biting.
Basically do not use tie wrap by installation
Frost-proof water pipes with this heating cable:
calibre |
15mm |
22mm |
28mm |
35mm |
42mm |
48mm |
60mm |
76mm |
Without pipe insulation |
-20°C. |
-13°C. |
-10°C. |
-7°C. |
-5°C. |
-4°C. |
-3°C. |
-2°C. |
With 13mm pipe insulation |
-45°C. |
-45°C. |
-40°C. |
-40°C. |
-35°C. |
-30°C. |
-25°C. |
-20°C. |
Installation: first unwind the heating cable. The cable must never be connected to the power line when it is wound up.
if the cable is too inflexible because of low temperatures, unwind it and put it for some minutes into the plug.
afterwards you can pass the cable.
the area around the pipe where you want to connect it with the cable must be accessibly and non-attached.
the heating cable can not be passed behind walls
put the thermostat with the round black contact area tightly on the coolest point of the pipe and fix it with insulating tape.
finally put the whole cable on the pipe and fasten it every 30~60cm with insulating tape.
attention: the cable must be fastening straight on the pipe
now you can check if your cable
works.
afterwards insulate the water pipe and the heating cable with mineral rock wool or foam. Attention: never use more than 13mm of this material to insulate.
in general the heating cable must be protected against mechanical damage or biting.
the heating cable can not be put into liquids.
finally plug the cable into a 230V main plug
