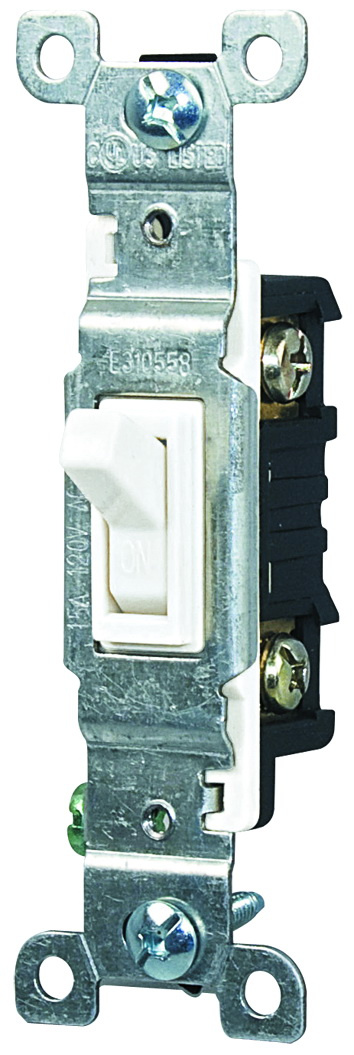

UL Listing, Toggle Framed Single-Pole AC Quiet Switch

Name: UL Listing, Toggle Framed Single-Pole AC Quiet Switch
Brand: all-electronics-online.com
SKU: 689003122
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 0.32/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

SPECIFICATIONS
· Part No.: LMS111
· Description: 15 A, 120/277V, Toggle Framed Single-Pole AC Quiet Switch, Residential Grade, Grounding, Quickwire Push-In & Side Wired
· Color: White, Ivory, Almond, Black
· Rating: 15A, 120/277VAC
· HP Rating: 1/2HP-120V 2HP-240V-277V
· Termination: Side/Back Push-in
· Actuator Material: Thermoplastic PC
· Body Material: Thermoplastic Nylon

CODE COMPLIANCE
· UL Listed 20, UL file #E310558
· ROHS comply

MATERIAL CHARACTERISTICS
· Environmental: Flammability, UL-94, Rated V0
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)

FEATURES
· Extra-long, through-body strap elimanates floating installations and imperfect applications
· Heavy-duty impact-resistant thermoplastic construction for long service life
· Back and side-wiring terminals accept both solid and stranded wire to ease installation
· Smooth, quiet paddle and toggle action
· Narrow back body leaves more room for wires in the box
· Tri-Drive ground, terminal and mounting screws ease installation
· Terminal screw backed out ready for wiring
· Limited Two-Year Warranty

Prod Model:	LMS111
Markets:	North America,South America,Mid East
Usage:	Electrical Appliance
Standard:	Standard
Lamp:	Without Lamp
Color:	White
Condition:	New
Certification:	UL

Lumex is a specialized manufacturer of custom and standard electrical wiring devices, Founded in 1997, Lumex offers nearly 18 years of proven performance in producing superior quality products.

Quality is the founding principal of Lumex' manufacturing philosophy. Lumex is certified ISO 9001: 2008, Most of the electrical wiring devices in Lumex are UL, ETL and RoHS approved. All our products are 100% quality guaranteed.

Lumex incorporates the most advanced design and manufacturing technologies. All Lumex's products have been designed and prototyped for sales using the most advanced testing techniques and methods.

In nearly 18 years, Lumex has invested the most modern manufacturing technology and equipments, and as a result, we have consistently provided large OEMs with the most cost effective alternatives globally.

Customer Satisfaction, Design Engineering, Quality, and On-Time Delivery are four key areas we are focusing on to insure high quality electrical wiring devices and total customer satisfaction. Our partner companies rely upon us to create superior quality, budget conscious solutions for complex challenges. At Lumex, we view solutions as the key to our continued growth and success.
