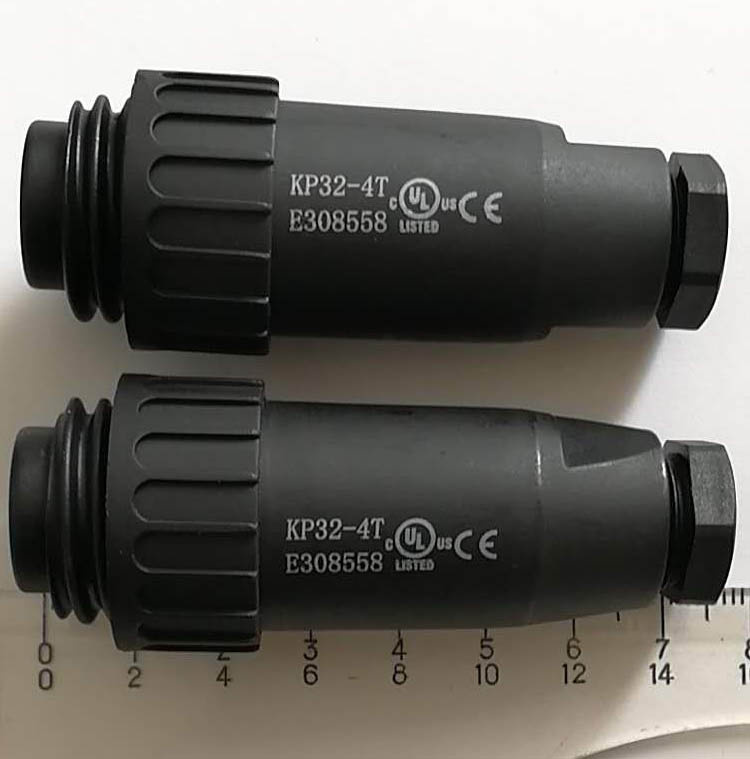

UL Proved Power 4 POS Circular Connector

Name: UL Proved Power 4 POS Circular Connector
Brand: all-electronics-online.com
SKU: 664853272
Availability: InStock
Rating: 4.6 (85 reviews)

Price:	US $ 3.2-5/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

UL proved connector, KP32 series circular water proof connectors made of plastic shell. It can be useed in the water-proof place. It have new type contacts - schrauben contacts. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof etc. They are widely used for the electrical connection between electrical equipment. It has protection IP67, it can be interchanged with Binder's series 693, UL 94 V-0. UL certificate file: E308558. Meet CE, RoHS.

Product Ordering
KP 32 - 4 T - 8
1 2 3 4 5
1. Name of series: KP
2. Design No.: 32
3. Number of contacts: 2,3,4,7
4. T: Plug with pins, Z: Receptacle with sockets, ZP: Cable receptacle
5. Wire gauge: 6,7, 8, 9,10,11,12 3.Technical characteristics

Temperature	Relative humidity		Atmosphere		Vibration	Shock
-40°C~+100°C	(90~96)% at40°C		101Kpa~6.67Pa		50~500Hz,100m/s²	200m/s²
Current		Voltage		Contact resistance		Endurance
16A		400VAC		≤5mΩ		500cycles
12A		600VAC
10A(7 pins)		400VAC

Environment	Voltage proof	Insulation resistance
Normal	2500V	≥5000MΩ

Prod Model:	KP32-4T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Kp32-4t
Size1:	Kp32-4tk
Size2:	Kp32-3tk
Size3:	Kp32-3t
Size4:	Kp32-7t
Application:	Battery
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Round
Contact Termination Form:	Screws Fixed
Brand:	Kaipu

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
