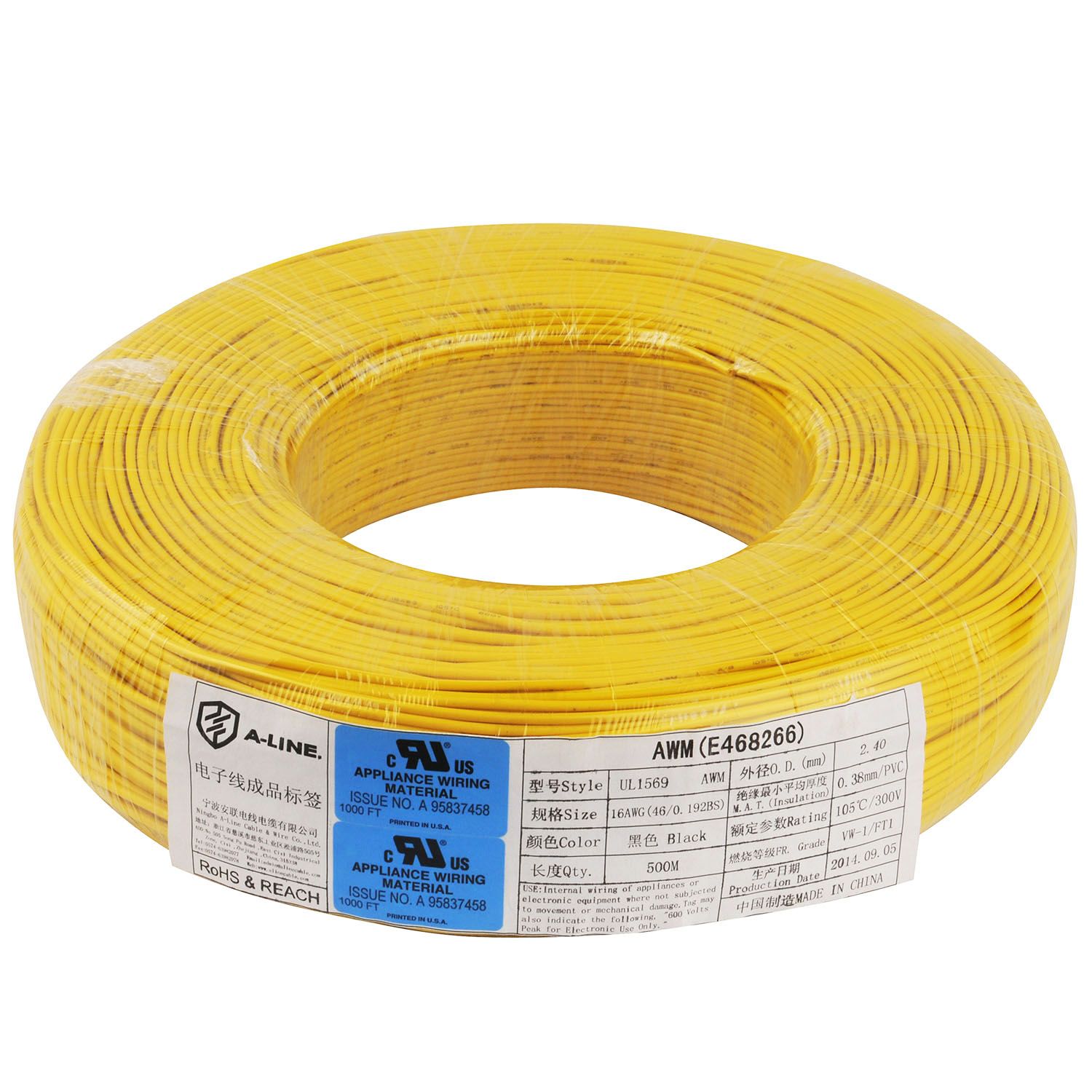

UL1569 PVC Insulated Electrical Wire

Name: UL1569 PVC Insulated Electrical Wire
Brand: all-electronics-online.com
SKU: 750859175
Availability: InStock
Rating: 5 (118 reviews)

Price:	US $ 0.49/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Name:UL1569 PVC Insulated Electrical Wire
Rated Temperature: 80°C 90C° 105°°C
Conductor:Copper
Insulationl:PVC
Rated Voltage:330V
Environmental Standard:RoHS
Export Markets:Southeast Asia, Africa, M
Jacket Material:Environment-friendly PVC
Length of Cable:As Per Customer's Requirement
Color:As Per Customer's Requirement

Welcome to contact with us!

Conductor			Insulation		Maximum Resistance At 20ºC Ω/km	Packing
Spec AWG	Conductor construction No./φmm	Diameter (mm)	Nominal thickness (mm)	Nominal outer diameter (mm)	Maximum Resistance At 20ºC Ω/km	M/Coils
30	7/0.102	0.3	0.40	1.10	381	610
28	7/0.127	0.38	0.41	1.20	239	610
26	7/0.16	0.48	0.41	1.30	150	610
24	11/0.16	0.61	0.40	1.40	94.2	610
22	17/0.16	0.76	0.42	1.60	59.4	610
20	26/0.16	0.94	0.43	1.80	36.7	610
18	41/0.16	1.18	0.46	2.10	23.2	610
16	26/0.254	1.49	0.46	2.40	14.6	305
14	41/0.254	1.88	0.41	2.7	8.96	305
12	65/0.254	2.36	0.42	3.2	5.64	305
10	105/0.254	3.00	0.45	3.9	3.546	305

Quality certification

Why choose us ?
1.More than 15 years in this line

2.Good quality control and management ISO9001:2008 certified

3.Safety certificated by most countries all over the world

4.9^THyear gold suppier on the made -in -china.

Prod Model:	UL1569
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	PVC
Length:	as Per Customer's Requirement
Color:	as Per Customer's Requirement
Testing:	Passes UL Vw-1 Vertical Flame Test
Reference Standard:	UL758 UL1581
Rated Voltage:	300V
Environmental Standard:	RoHS
Conductor:	Copper
Type:	Insulated
Certification:	RoHS
Conductor Material:	Copper
Conductor Type:	Stranded
Insulation Material:	PVC

Ningbo A-Line Cable & Wire Co., Ltd. is located close to harbour of Ningbo, A place with convenient traffic. Since 1998, We have been dedicating ourselves to the manufacturing and exporting of high quality International Power cords, Power plugs, Power cable, DC cable, DC plug, Extension cord, Cable reel, Adaptors, Sockets, Lighting fixtures, Wiring harnesses, Cable assemblies, Plug insert, Plug inserts, Plug accessories compliance with RoHS, PAH, EuP, REACH etc, Or as a custom-made product. In accordance with multinational standards. Most of our products have been certified with all the important agency approvals, such as SAA, VDE, CE etc. Management system has been assessed and certified as meeting the requirements of ISO 9001: 2008.

Thanks to our strict quality control system and qualified service team, We have established very friendly and successful business relationships with customers all around the world, They are sold well to European, Oceania, South America, East south Asia, Middle East etc, And have gained reputation among our customers.

It's our consistent and sole goal that customers' satisfactions are always of the first importance. We sincerely welcome customers and friends from all over the world to be hand in hand with us, To develop together, and create the beautiful future together with you.

We welcome small orders and OEM projects, To learn more about our products and services, Please visit our website, E-mail us or call us today.
