| Nominal Voltage: |
600V |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Insulation Material: |
Silicone Rubber |
| Certification: |
CSA |
| Range Of Application: |
Household Appliances, Lightings |
| Brand: |
Yuanda |
| Conductor Material: |
Bare Copper or Tinned Copper |
Product Description

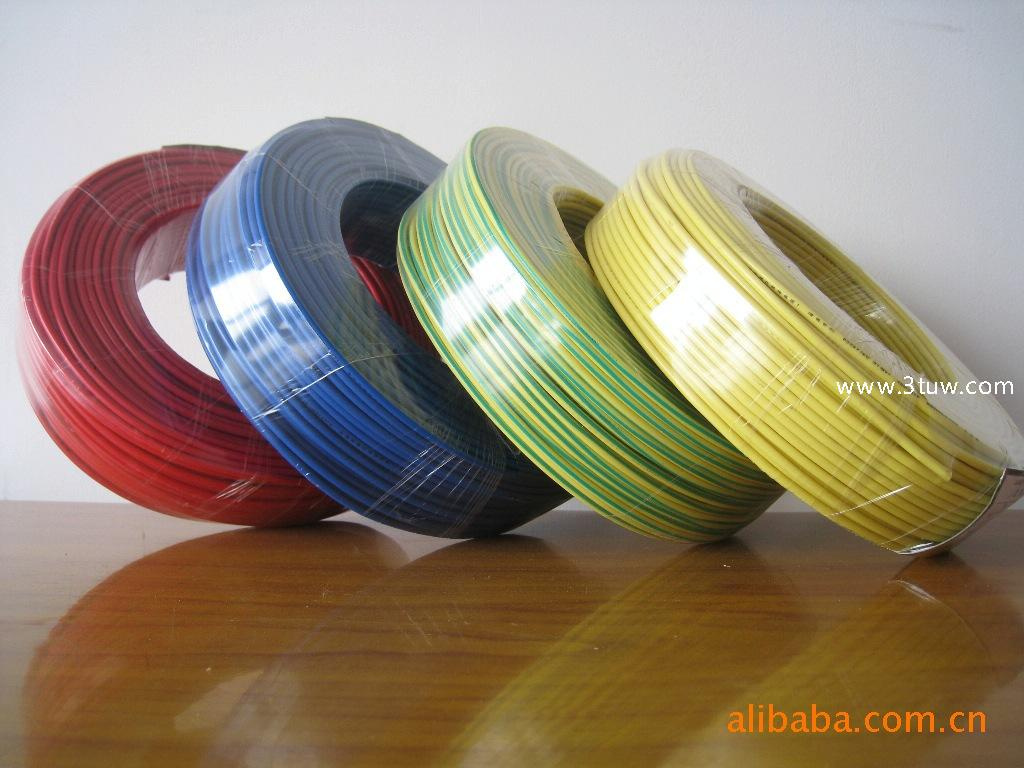

UL3604 Silicone rubber insulated wire:
Technical Data:
Nominal Voltage: 600V
Temperature Range: -60 ° C ~+150° C
Testing Voltage: 2000V
Conductor: Bare Copper or Tinned Copper
Insulator: Silicone Rubber
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Use: Inner fixed wires for Home electric Appliances, lightings, electronic equipment.
Certificate No.: E216252 CSA229260
Specification:
| Conductor | Insulation | Resistance
20ºC
Ω/km |
Spec
AWG | Conductor
construction
No./ φmm | Diameter
(mm) | Nominal
thickness
(mm) | Nominal outer
diameter
(mm) | Max outer
diameter
(mm) |
| 30 | 7/0.10 | 0.3 | 0.78 | 1.86 | 2.05 | 364.0 |
| 28 | 7/0.12 | 0.36 | 0.78 | 1.92 | 2.1 | 252.0 |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 2.2 | 143.0 |
| 24 | 7/0.20 | 0.6 | 0.78 | 2.16 | 2.4 | 92.0 |
| 22 | 7/0.25 | 0.75 | 0.78 | 2.31 | 2.5 | 56.8 |
| 20 | 7/0.31 | 0.93 | 0.78 | 2.49 | 2.7 | 40.1 |
| 18 | 7/0.395 | 1.19 | 0.78 | 2.75 | 3 | 23 |
| 16 | 7/0.495 | 1.49 | 0.78 | 3.05 | 3.4 | 14.6 |
| 14 | 41/0.25 | 1.82 | 0.78 | 3.38 | 3.7 | 9.9 |
| 12 | 45/0.32 | 2.5 | 0.78 | 4.06 | 4.5 | 5.38 |
| 10 | 35/0.45 | 3.08 | 0.78 | 4.64 | 5.1 | 3.5 |
| 8 | 44/0.50 | 3.9 | 1.18 | 6.26 | 6.9 | 2.19 |
| 6 | 70/0.50 | 5.5 | 1.53 | 8.56 | 9.4 | 1.41 |
| 4 | 110/0.50 | 6.9 | 1.53 | 9.96 | 11 | 0.92 |
| 2 | 175/0.50 | 8.7 | 1.53 | 11.76 | 12.9 | 0.59 |
| 1 | 217/0.50 | 10 | 2.03 | 14.06 | 15.5 | 0.449 |
| 1/0 | 276/0.50 | 11.2 | 2.03 | 15.26 | 16.8 | 0.335 |
| 2/0 | 342/0.50 | 12.2 | 2.03 | 16.26 | 17.9 | 0.282 |
| 3/0 | 437/0.50 | 13.8 | 2.03 | 17.86 | 19.6 | 0.223 |
| 4/0 | 551/0.50 | 15.5 | 2.03 | 19.56 | 21.5 | 0.177 |
| 250Kcmil | 1009/0.40 | 16.8 | 2.45 | 21.7 | 23.8 | 0.147 |
| 300Kcmil | 1216/0.40 | 18.5 | 2.45 | 23.4 | 25.7 | 0.122 |
| 350Kcmil | 1406/0.40 | 20 | 2.45 | 24.9 | 27.4 | 0.105 |
| 400Kcmil | 1615/0.40 | 21.5 | 2.45 | 26.4 | 29 | 0.091 |
| 450Kcmil | 1813/0.40 | 22.6 | 2.45 | 27.5 | 30.3 | 0.081 |
| 500Kcmil | 2010/0.40 | 23.9 | 2.45 | 28.8 | 31.7 | 0.073 |
| 550Kcmil | 2220/0.40 | 25 | 2.8 | 30.6 | 33.7 | 0.067 |
| 600Kcmil | 2420/0.40 | 26.2 | 2.8 | 31.8 | 34.9 | 0.061 |
| 650Kcmil | 1675/0.50 | 27.3 | 2.8 | 32.9 | 36.2 | 0.056 |
| 700Kcmil | 1808/0.50 | 28.2 | 2.8 | 33.8 | 37.2 | 0.052 |
| 750Kcmil | 1935/0.50 | 29.3 | 2.8 | 34.9 | 38.4 | 0.049 |
| 800Kcmil | 2060/0.50 | 30.1 | 2.8 | 35.7 | 39.3 | 0.046 |
| 900Kcmil | 2320/0.50 | 32 | 2.8 | 37.8 | 41.6 | 0.041 |
| 1000Kcmil | 2580/0.50 | 33.7 | 2.8 | 39.3 | 43.2 | 0.036 |
Company Information
Major products:
1. Cables used in household appliances,electronic instruments, namely UL1330,UL3122,UL5107,VDE HO5SJ-K and so on.
2. Auto cables that meet the national standard, Japanese standard, American standard, German standard, France and other countries' standards, etc..
3. Coaxial cables such as RG,RF that are widely used in various fields of communication systems.
4. Cables such as JG,JYJ that suitable for motor, railway, urban rail and rolling stock.
5. Sleeves such as FSG,SR,HST used for protection of wirings.
6. Cables used in special fields like photovoltaic, nuclear power, aviation and ships.
main customers:
Shanghai Sanzhi, Delphi, Lear-stec and Continental-corporation that matching Ashkenazi vehicle; THB Group and Ingersoll Rand eytc. ewire harness corporation that matching European and American vehicle; as well as Dell, Lenovo, Huawei and other matching communication cable customers and Panasonic, Siemens, Midea, Gree and other electronic cable customers.
With strong technical power, advanced production equipment, complete testing facilities and perfect quality ensurance system, we have many years' production experience in silicon rubber wires and cables. Our products are well sold around the world, including U. S. A, U. K., Germany, Denmark, Canada, India, and Japan etc...
FAQ:
1.Q: Are you trading company or manufacturer ?
A:We are factory, with the belief "Good faith makes quality, Quality wins market"
2.Q: How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.
3.Q:What certifications do you have?
A:We have UL, CUL, VDE, RoHS, REACH and SGS for our wires& cables.
3.Q:What is your payment term?
A:We have several payment terms for you, T/T, Western Union, L/C, etc.
4.Q:Can you do the design for us?
A:Yes, we have a professional team having rich experience in wire and cable design and manufacturing.Just tell us your demands, we will manufacture the cable as your requirement.And we can also print your Logo on the wire which can never be erased.
Contact US
| Name | Eileen Wang |
Tel/Mob
Fax |
0086-510-82408985
0086-510-82408985
|
Your enquiry will be highly appreciated!
|
Jiangyin Yuanda Electrical Material Co. Ltd. (Wuxi yuanda Electrical Materical Co. Ltd) is locked in Jiangyin, the most developed city in China, Jiangsu Province. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique advantages and convenient transportation could be your ideal business choice.
Our main products include:
1. Heat-resistant silicone rubber wires which are widely used in household appliances and electronic instruments such as UL3122, UL3135, UL3512 and VDE HO5S-K, VDE HO5SJ-K, CCC245IEC, H3Cable and teflon wires such as UL1330, UL1332, UL10362 and so on.
2. Steel industry heat-resistant cables applicable to aviation, navigation and such as YG, H05SS-F.
3. JG and JYJ cables applicable to electric machines metallurgy, engines, transformers and nuclear Powers.
4. Wires such as GXL, AEX and SGR used in automobiles.
5. Coaxial cables such as RG and RF series used for communications in cell phones, computers 3G and military industry.
We have abundant technical strength, advanced equipments, functional testing facilities and good quality-ensuring systems and have acquired the certificates of ISO9001-2000 and ISO/TS16949: 2009 for Automotive wires and tubes. Our main products, silicone rubber insulated wires and cables Teflon sires, silicone glass fiber pipers, rubber-inside and fiber-outside pipes are certified by UL, VDE, CSA and CCC and all our products can meet the requirements of RoHS.
Our annual output of heat resistant sleeve is 120, 000Km, all kinds of high temperature cable is 8, 600, 000Km, RF coaxial cable is 150, 000Km, and we can process all kinds of nonstandard cable according to the requirement of clients. With the excellent products, punctual delivery, we'll be your ideal partner.
With high qualify products, reasonable price and perfect after-sales service, we believe that we can achieve win-win situation with you. Looking forward to your cooperation!
