Ultrasonic Piezoelectric Transducer Ultrasonic Level Sensor Ultrasonic Flow Sensor (FBELE)

Name: Ultrasonic Piezoelectric Transducer Ultrasonic Level Sensor Ultrasonic Flow Sensor (FBELE)
Brand: all-electronics-online.com
SKU: 776625815
Availability: InStock
Rating: 4.4 (87 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FBULS1000KB-03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bandwidth:	10%
Beam Angle (-3dB Full Angle):	9
Output:	Analog Sensor
Maxim Operating Voltage:	<200 V

Product Description

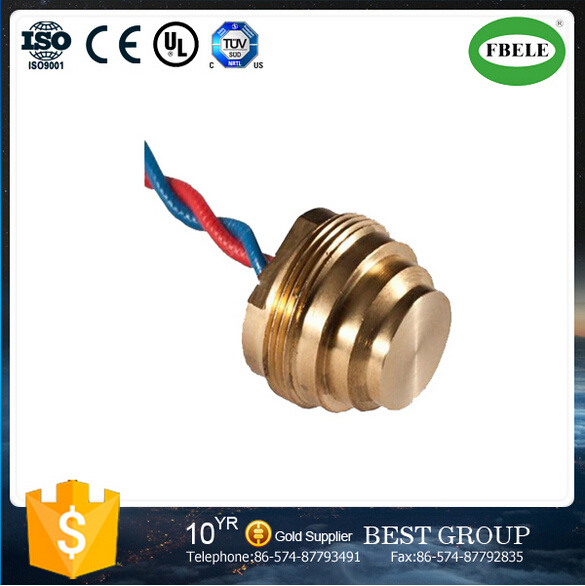

FBULS1000KB-03 ultrasonic piezoelectric transducer ultrasonic level sensor ultrasonic flow sensor (FBELE)

Model	FBULS1000KB-03
Center working frequency (kHz)	1.0MHZ±5%
Bandwidth	10%
overall sensitivity 3 Vp-p; cycle:8; distance:6cm (transmitter and receiver)	>80mV
Beam angle (-3dB full angle)	9°
Electrostatic capacity	400PF±20%
Minimal parallel impedance	500Ω±30%
Maxim operating voltage (Pulse duty cycle ratio 2% )	<200 V
Operating temperature	0-95°C
Maxim pressure	1.6Mpa
The material of the housing	PPS
protection class	IP68

FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.

Fast is our principle, our normal delivery time as below:

Sample delivery date is: 1-3days.

Production delivery time: 7-10days.

New product development: 15-20days

Our Company Advantage:

1, Reliability production

2, Famouse Brand "FBELE", Best Reputation

3, well experienced R&D engineer

4, Effective working Team

5, Aggressive Price

6, Constant New products

Don't hesitate, E-mail us immediately now.

You will get your best solution.
