Ultrasonic Sensor, Liquid Level Sensor M30 4 Meters

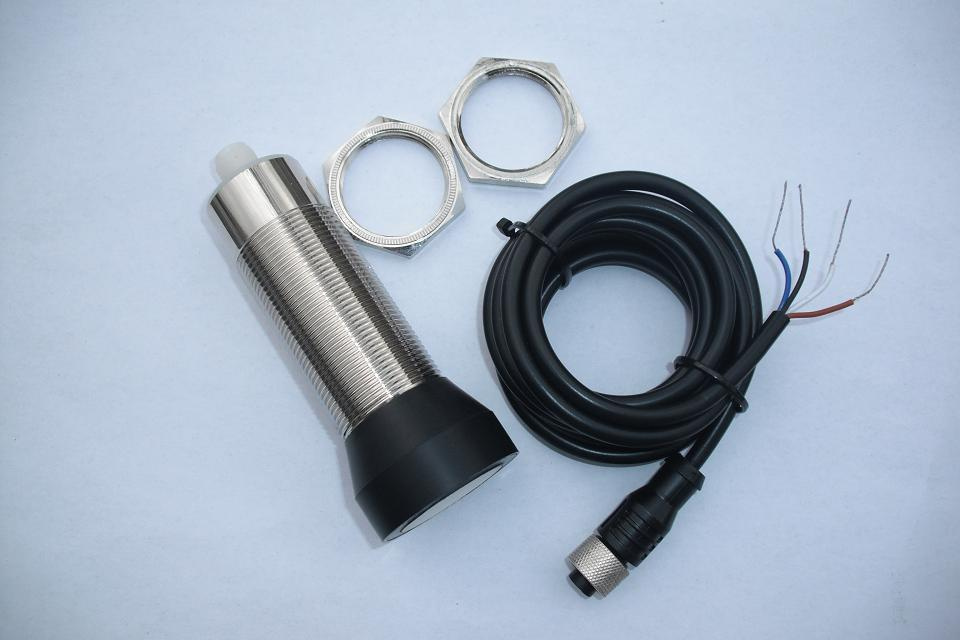

Name: Ultrasonic Sensor, Liquid Level Sensor M30 4 Meters
Brand: all-electronics-online.com
SKU: 835153695
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	US $ 60-100/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CB4000-30GM-E5-V15-#2830
Housing:	Stainless Steel
Corrosion Proof:	Yes

Product Description

Ultrasonic sensor water/oil level meter

Features of water tank input ultrasonic sensor water level meter :

Programmable cable interface using the PC software for proximity switch parameter settings
Current and voltage outputs
Synchronization
You can adjust the sensitivity of the acoustic energy and
Temperature compensation

Characteristic of water tank input ultrasonic sensor water level meter :
Induction distance: 80 to 4000mm
Adjustment range: 120 to 4000mm
Data output: RS 232
Analog output: 4-20mA, 0-5V, 0-10V
Accuracy: ≤ 0.2 % FS
Repeatability: ≤ 0.1 % FS
Process connection: M20*1.5, M12 x 1
Blind Area: 0 to 80mm
Standard target plate: 100mm x 100mm
Transducer frequency: approx. 180 kHz
Response time: min 65ms (default 195ms)
Working voltage: 10 to 30 V DC
Power consumption: ≤ 900mW
Ambient temperature: -25 to 70 °C (-13 to 158 °F)
Storage temperature: -40 to 85 °C (-40 to 185 °F)
IP grade: IP65
Case material: stainless steel
