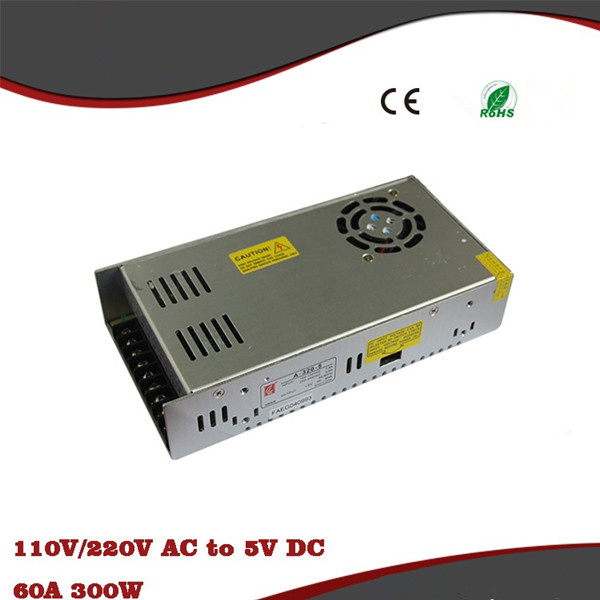

Uninersal 5V 60A Switching Power Supply with Ce RoHS

Name: Uninersal 5V 60A Switching Power Supply with Ce RoHS
Brand: all-electronics-online.com
SKU: 801142365
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 10.0-10.1/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

place of origin:	Shenzhen,China	brand name:	louita	model no.:	LYD-5V-60A
dimension:	214X113X50mm	output type:	single	voltage:	5v
Efficiency:	86%	Leakage Current:	0.25mA Max

Product Description

Low cost, high reliability

Built-in EMI filter
Low output ripple&noise

Protections: Over load/Short circuit

AC input voltage range---------------110VAC or 220VAC

Input frequency----------------------47-63Hz

AC inrush current---------------------Cold start,30A/230VAC

DC adjustment range-----------------+-10% rated output voltage

Line regulation(full load)------------≤0.5%

Output over load protection----------110%-150% shut off, AC recycle to re-start

Rise,hold up time------------------50mS,20mS at full load(typical)

Withstand voltage------------------I/P-O/P,I/P-FG: 1.5KVAC, O/P-FG,0.5KVAC,1min

Working temperature---------------10~+40@ 100%,+60 @ 60% load

Storage temperature------------- -20~+85,20%~95%RH(non condensing)

Safety standards------------------Design refer to GB4943,UL60950-1,EN60950-1

EMC standards--------------------Design refer to GB9254,EN55022 class A

Cooling method-------------------Free air cooling convection

Shipping

Application

Prod Model:	LYD-5V-60A
Input Frequency:	47-63Hz
Working Temperature:	-10-40
Output Current:	60A
Storage Temperature:	-20-85
Output Type:	Single
Output Power:	201 - 300W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	RoHS
