Universal Circuit Breaker Dw45 Air Circuit Breaker Merlin Gerin Acb
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
DW45-3200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Functional: |
Overload, Undervoltage, Short-Circuit |
| Structural Max Current: |
3200AMP |
| Warranty Time: |
2 Years |
| Service: |
OEM&ODM |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
1.Application DW45 series universal circuit breaker(hereinafter referred to as breaker)is suitablefor the circuit of AC 50Hz with rated voltage 400V, 690V and rated current up to 6300A.It is mainly used to distribute electric energy and protect circuits and power-supplyequipment from overload, under-voltage, short-circuit and single-phase earthing. withintelligentized and selective protection functions, the breaker can improve the reliabilityof power supply, and avoid unnecessary power failure. The breaker is applicable forpower stations, factories, mines(for 690V) and modern high-buildings, especially for thedistribution system of intelligentized building. This breaker conforms to IEC60947-2 andGB14048.2. The whole series have past CCC certification.2.Technical date sheet| Model | DW45-3200 |
|
| Structural level max current | 3200 |
|
| Rated current In(A) | 2000,2500,3200,4000 |
|
| Rated voltage Ue(V) | AC400,AV690 |
| Rated insulation voltage Ui(V) | 1000 |
|
| Rated voltage withstand voltage Umip(kV) | 8000 |
| Rated ultimate short-circuit breaking capacity Icu(kA) | 100 |
| 65 |
| Rated working short-circuit breaking capacity Ics(kA) | 80 |
| 50 |
| Rated short period withstand current Icw(kA) | 80 |
| 50 |
| Wiring type | Upper wiring & lower wiring |
| Arc distance (mm) | 0 |
| working lifespan | Electrical | 500 |
| Mechanical | 4500 |
| Power comsuption(W) | 1200 |

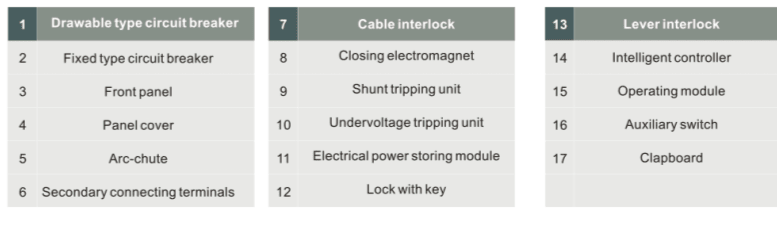

3.Categories of Intelligent Air Circuit Breaker(ACB)1. Our air circuit breaker can be of two installation types: fixed type and draw-out type2. Number of poles: 3 pole and 4 pole3. Operation type: manual operation, auto operation4. Trip types: Intelligent controller, under voltage instant ( or time delay type) trip and shunt trip4.Catalog
5.About our factory
CHINA * SAIDE ELECTRIC CO.,LTD
Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China
Tel:0086-577-62755267
Phone:18657700751
Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.
We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.
With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
