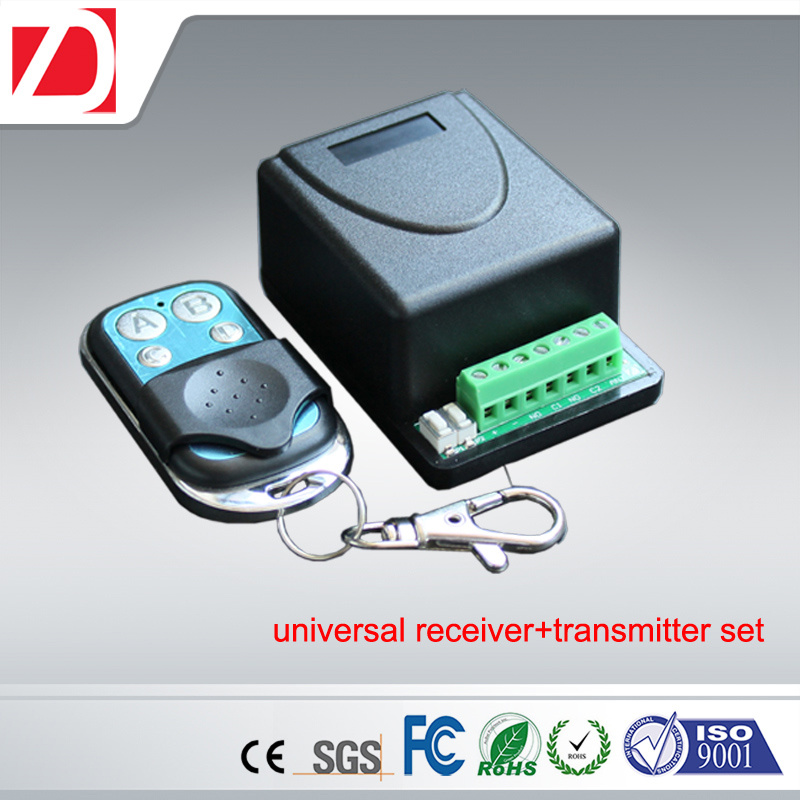

Universal rf receiver with latch and momentary working modes large capacity
User manual:This receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment,
gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
This receiver can store up to 150 remote controls.
It can be learned with our 433,92MHz.fixed and rolling code remotes
| Technical Parameters | 9-24 Vac/Vdc |
| Power Supply | 433.92 MHz or 315 MHz |
| Max Consumption | 200 mA |
| No. of Max Codes | 150 |
| No. of Channels | 2 |
| No. of Outputs | NO / NC 2 |
| Max Switching Power | 0.5 A / 120 VA |
| Operating Temperature | '-20/ + 50 ºC |
| Working Distance | 70--100 m |
| Dimentions: | 62mm x 58mm x 32mm |

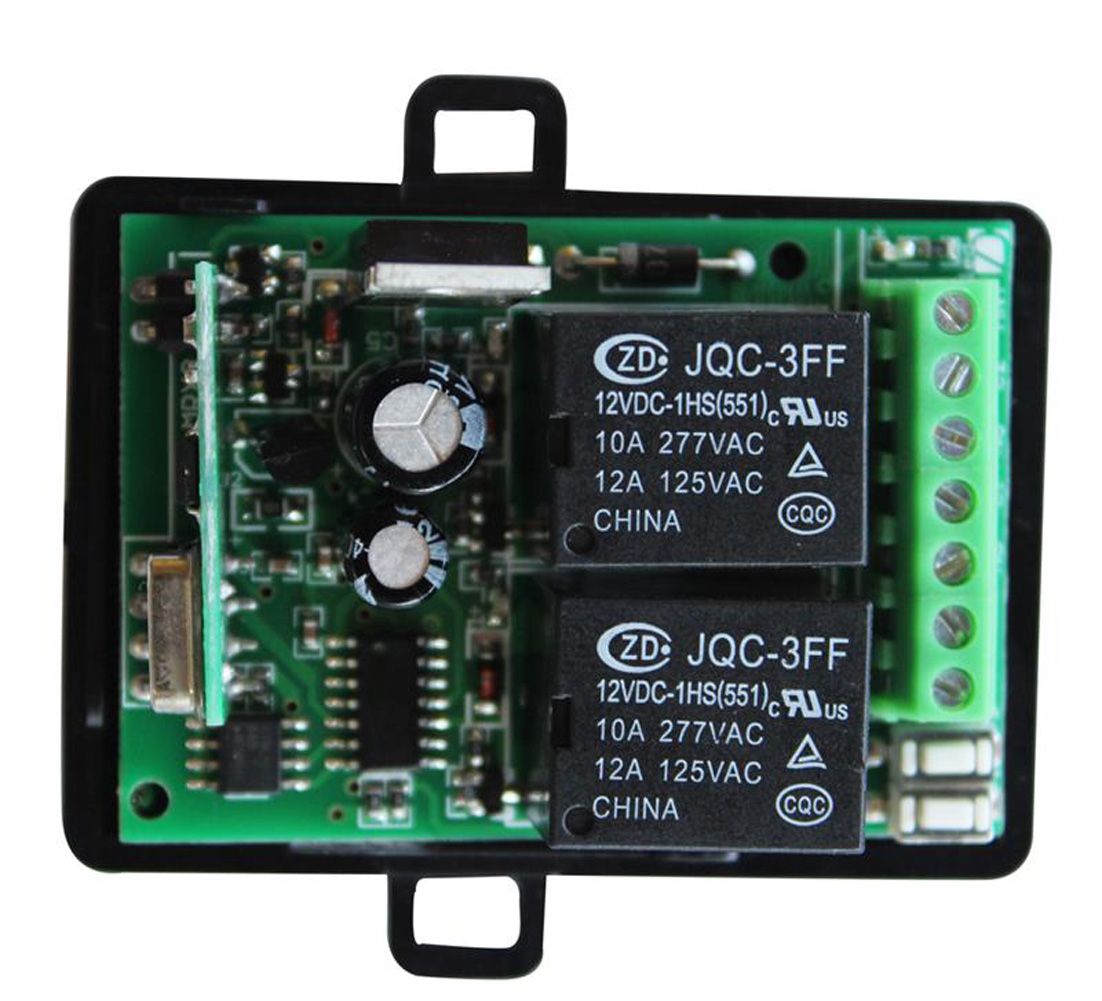

| Relay Spec. | 10A 277VAC 12A 125VAC |
| How to add a new remote and choose between momentary & latch mode: |

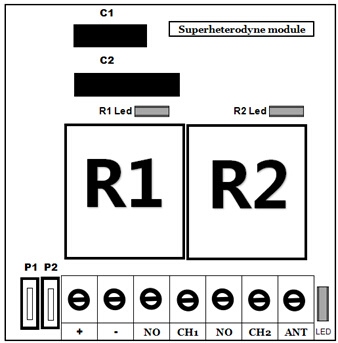

| There are two learning buttons beside the connector, shown as P1 & P2 |
| Press P1(Learning Button 1): |
| Press "P1" (learning button 1) - Learn LED will go on. Then press the button which you wish to learn on your remote control. Learn LED will start blinking 2 or 3times and on - This means that you have successfully learned your remote to the receiver. |
| 1. Press P1 once to program R1 in Momentary mode. |
| 2. Press P1 twice to program R2 in Momentary mode |
| 3. Press P1 3 times to program R1 in Latched mode |
| 4. Press P1 4 times to program R2 in Latched mode |
| For example: |
Press P1 once and press the button you want to learn on your remote, push button A, it means button A will control R1 in momentary mode. You can see the LED working light besides R1 will comes on during you holding on button A. Release button A, R1 off, as well as the LED working light go off. If Press P1 3 times, push button A, it means button A will control R1 in latched mode.
If you use a 4 button remotes A,B,C,D. you can use button A control R1 in momentary mode, and button B cofnrol R2 in momentary mode, and button C control R1 in latch mode, and button D confrol R2 in latch mode. |
| Note: press and hold the key on the control until the LED begins to flash. |
| Repeat the above steps for other transmitters. |
| | | | | | | | | | |
| How to erasing the existing code |
| Press P2(Learning button 2) until the Learn LED comes on (approx. 8 seconds). |
| Press P2 and keep holding until Learn LED comes on ( push approx. 8 seconds), then release P2, |
| Once Learn LED is on, it means that you have successfully erased all the codes of your remote. |
| |

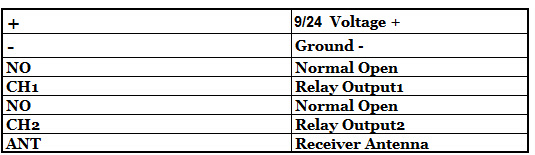

| How to connect |
| All you need to do is to connect this receiver to your control board by using only 4 wires ( 2 - for power; 2 - for relay!!!) |
| Note: The abriviations of your board can be different, so follow your manual. |
| With the 4 channel remote controls you can operate up to 4 absolutelly different systems ! |
| In order to use 1 remote for up to 4 different systems, you will require to purchse additional receiver(s). |
Our main products:We mainly products wireless remote control,remote duplicator,wireless module,tubular motor controller system, shutter door remote control
system,barrier control system,electronic curtains remote control system, adjustable-speed fan remote control system,LED light remote

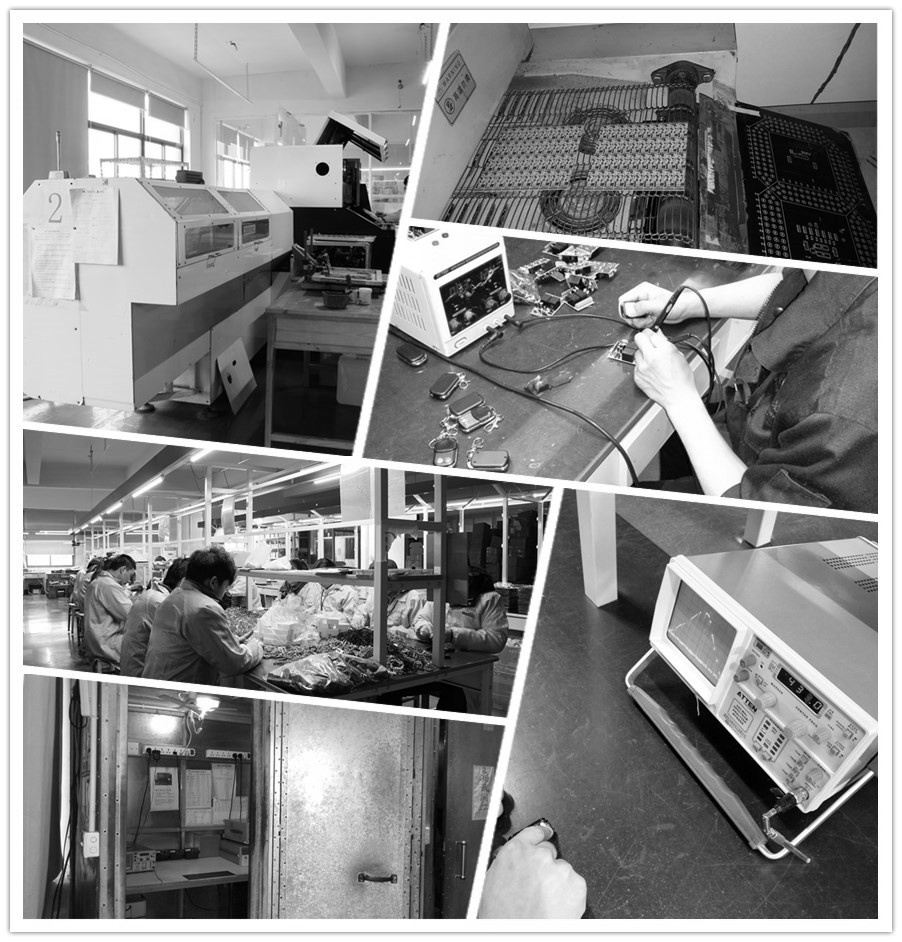

control systemand other types of remote control products.Factory:We Hangzhou Zhengdian Technology Co.,Ltd was established in 2008,we are a high-tech enterprise which is specialized in wireless
