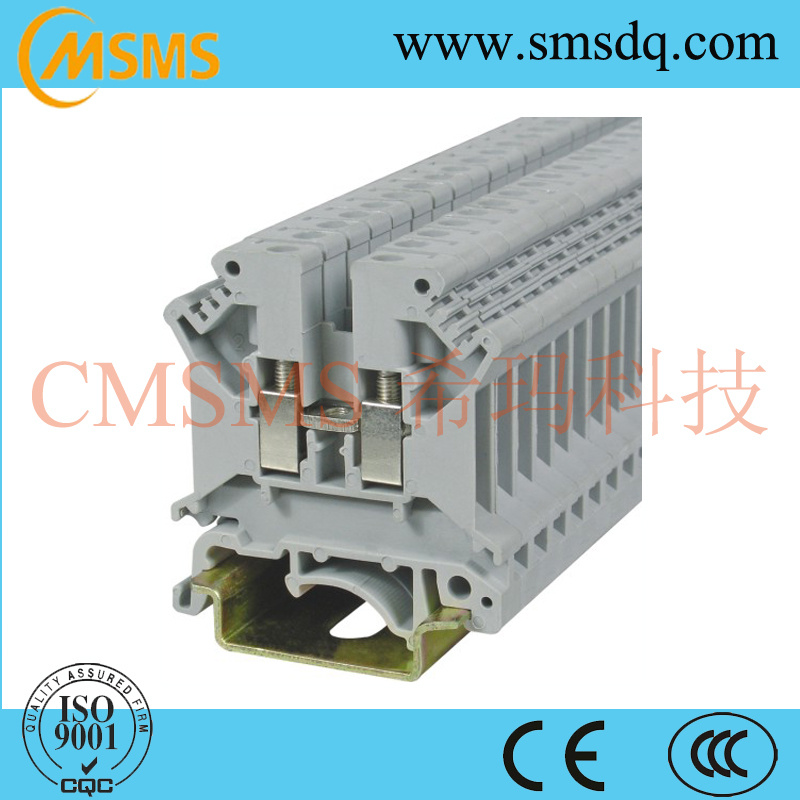

Universal Screw Connection DIN Rail Terminal Blocks (SKJ-4)

Name: Universal Screw Connection DIN Rail Terminal Blocks (SKJ-4)
Brand: all-electronics-online.com
SKU: 606991044
Availability: InStock
Rating: 4.7 (27 reviews)

Price:	US $ 0.1-0.2/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

SMS SKJ series Screw Clamp terminal blocks are known and accepted worldwide. The screw clamp technology is preferred because it offers top reliability with the best clamping force. Screw clamp terminal blocks have a larger electrical contact area, the lowest contact resistance, the highest pull out force, and the ability to handle multiple wires and larger wire ranges. Factory studies have indicated that nuisance electrical downtime is traced back to nothing more than loose or intermittent connections caused by insufficient clamping forces and metal bodies not protected from corrosion. In order to eliminate the possibility of these types of problems, look to manufacturers who offer wire-clamping mechanisms that are designed to prevent screw back-out. In addition, a nickel-plated copper alloy is the preferred choice over steel because it is a better conductor, has better thermal expansion properties and offers better corrosion resistance.

ITEM NO.	SKJ-4	SKJ-6	SKJ-10
Order No.	01004	01005	01006
Dimension
Width x Thickness x Height (mm)	42.5/6.2/46.5	42.5/8.2/46.5	42.5/10.2/46.5
Screw (mm)	M3	M4	M4
Torque (Nm)	0.5-0.7	1.5-1.8	1.5-1.8
Stripping Length (mm)	8	10	10
Rated data
Voltage Rating (V)	1000	1000	1000
Current Rating (A)	41	57	76
Wire section (mm² )	4	6	10
Wire Range
Rigid wire range(mm² )	0.2-6	0.2-10	0.5-16
Flexible wire rangemm² )	0.2-4	0.2-6	0.5-10

Prod Model:	SKJ-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Switchgear:	switchboard
Environmental Protection:	Resistance to Environmental
Shape:	Rectangle
Application:	Battery
Contact Termination Form:	Pressure Welding
Connection Mode:	In-Line Connector

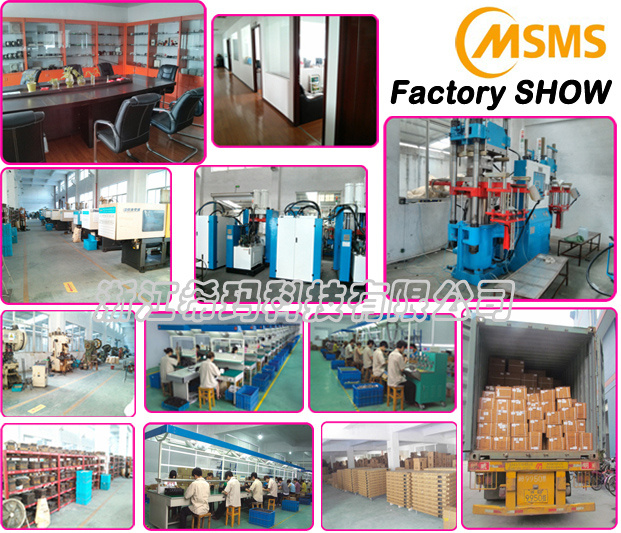

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.

At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.

We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
