Universal Terminal Block Plastic Electronic Component

Name: Universal Terminal Block Plastic Electronic Component
Brand: all-electronics-online.com
SKU: 729655405
Availability: InStock
Rating: 4.3 (88 reviews)

Price:	US $ 0.15-1.65/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

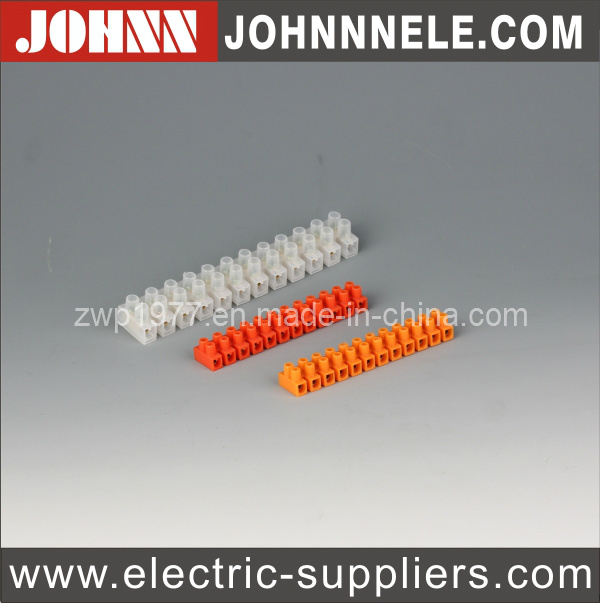

Strip Terminal Block with CE &RoHS

Circuit of AC 50Hz or 60Hz,
Voltage 380V
Current from 3A to 150A.
For connecting the round copper conductors.

1. Material:

Plastic have PA, PP, PE.

PA, Polyamide 66, 94-2 grade. Inflaming retarding, good resist dissolve, good bounce impact fore. Working termpertaure: -30° C to 110° C.
PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force. Working Temperature: -40° Cto 90°
PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working termpertaure: -40° C to 65° C.

Brass insert and Steel screw

2. Working Temperature:

- 40oC to 110oC

3. Color:

Natural color, black color, yelliow color and organge color and color can be customize.

4. MOQ: FUll CONTAINER. (CAN MIXED ITEMS)

5. MOV: LESS USD$3, 000

6. PAYMENT TERMS: 30% deposit, balance see the copy of B/L by email or negotiation

7. Deliver Methods:

By sea
By air ( Express DHL, Fadex, TNT)

8. Deliver time: Within 25 days after receipt deposit

Item No	Section size(mm² )	L(mm)	W(mm)	H	A	B
H/U-3	3A-2.5/4mm²	92	16	12.2	7.1	8.2
H/U-6	6A-6mm²	115	17.7	14.1	7.8	9.2
H/U-10	10A-10mm²	124.6	20.6	16.8	8.7	11.1
H/U-15	15A-12mm²	133.5	22.3	18.6	9.8	12
H/U-20	20A-14mm²	141.6	22.8	18.2	10.1	12.2
H/U-30	30A-16mm²	164.1	24.1	21.8	11.2	15.1
H/U-60	60A-25mm²	190	31	25	13.8	17.2
H/U-80	80A- 30mm²	207	37	28	15	19
H/U-100	100A-35mm²	228	38.9	34	17.1	21
H/U-150	150A-40mm²	260	44.1	33.8	23.1	25.2

Item No	Section size(mm²)	QTY/CTN	Package size (CM)			GW (KGS)	NW (KGS)
U/H-3	3A-4mm²	1200	41	20	31	22	21
U/H-5	5A-6mm²	1000	39	22	27.5	22	21
H-6	6A-6mm²	1000	43.5	23	27	22	21
U-6	6A-6mm²	1000	49	22	28	22	21
H-10	10A-10mm²	800	43.5	27	33.5	26	25
U-10	10A-10mm²	800	39.5	26	31.5	26	25
U/H-15	15A-12mm²	500	38	28	30	26	25
U/H-20	20A-14mm²	500	38.5	28.5	29.5	27	26
U/H-30	30A-16mm²	300	38	34	21.5	19	18
U/H-60	60A-25mm²	200	40	33	25	24	23
U/H-80	80A-30mm²	100	38.5	22	32	19	18
U/H-100	100A-35mm²	100	36	24	33	19	18
U/H-150	150A-40mm²	100	45.5	27	18.5	23	22

Prod Model:	H Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Type:	Public
Material:	PA, PP, PE
Port:	Ningbo or Shanghai
Environmental Protection:	General
Shape:	Rectangle
Application:	PCB
Contact Termination Form:	Screws Fixed
Connection Mode:	Push-Pull Connection

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
