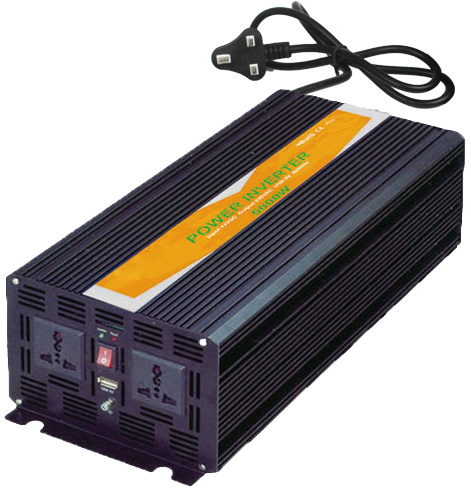

UPS Electronic Inverter Circuit 5000W
| Price: |
US $ 400-446/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Specifications
Advanced SPWM and CPU control technology
Import power module main circuit
OEM service and custom- made
CE/ROHS/ISO9001
Pure Sine Wave Inverter
Pure sine wave inverter adopts USA advanced SPWM and CPU control technology with imported power module main circuit. It can convert the DC power to AC power with the features as voltage stabilization, frequency stability, low noise and purify pure sine wave AC power supply. The product has low output waveform distortion, high conversion efficiency, strong anti-jamming performance, with small size, light weight, simple operation, no pollution and so on advantages. It is widely used in all kinds of: the microcomputer system, communication system, household, aviation,emergency, communications, industrial equipment, satellite communications equipment, military vehicle, ambulance, police cars, ships, solar and wind power field where need emergency backup power supply place to form EPS emergency power supply system.
| model | JGS-300W | JGS-500W | JGS-600W | JGS-800W | JGS-1000W | JGS-1200W |
| Rated Power | 300W | 500W | 600W | 800W | 1000W | 1200W |
| Peak Power | 600W | 1000W | 1200W | 1600W | 2000W | 2400W |
| Input Voltage | 12VDC/24VDC | 12VDC/24VDC/48VDC |
| AC Voltage | 110VAC/220VAC | 110VAC/220VAC |
| USD Outlet | 5V 500mA | 5V 1A |
| Frequency | 50/60HZ±0.5 |
| Wave Form | Pure Sine Wave |
| Soft Start | Yes |
| Protection Function | Bat.Low voltage Alarm&Shut Down,Over Temperature,Over Voltage,Short Circuit,Revers Polarity |
| The Fuse | Built-in |
| Inverter Size(L*W*H) | 247*168*91mm | 280*210*143mm | 280*210*140 | 300*210*140mm | 360*220*145mm | 360*220*145 |
| Gross Weight | 1.1KGS | 2.25KGS | 2.25KGS | 2.6KGS | 3.65KGS | 3.5KGS |
| Package Size | 460*380*475mm | 585*430*300mm | 585*430*300 | 605*425*285mm | 460*370*465mm | 460*370*465 |
| Quantity/Ctn | 16PCS | 8PCS | 8PCS | 8PCS | 6PCS | 6PCS |
| Package Weight | 18.2KGS | 17.8KG | 18.2KGS | 20.8KGS | 23KGS | 21.2KGS |
| Package Type | Color Box |
| Warranty | 1 Year |
|
|
|
|
|
|
|
|
| model | JGS-1500W | JGS-2000W | JGS-2500W | JGS-3000W | JGS-4000W | JGS-5000W | JGS-6000W |
| Rated Power | 1500W | 2000W | 2500W | 3000W | 4000W | 5000W | 6000W |
| Peak Power | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| Input Voltage | 12VDC/24VDC/48VDC |
| AC Voltage | 110VAC/220VAC |
| USD Outlet | 5V 1A |
| Frequency | 50/60HZ±0.5 |
| Wave Form | Pure Sine Wave |
| Soft Start | Yes |
| Protection Function | Bat.Low voltage Alarm&Shut Down,Over Temperature,Over Voltage,Short Circuit,Revers Polarity |
|
|
|
|
|
|
| The Fuse | Built-in |
| Inverter Size(L*W*H) | 440*220*145mm | 440*220*145mm | 410*290*240mm | 410*290*240mm | 518*290*240mm | 518*290*240mm | 518*290*240mm |
| Gross Weight | 4.5KGS | 5.15KGS | 9.1KGS | 9.3KGS | 12KGS | 14.5KGS | 16KGS |
| Package Size | 460*370*465mm | 460*370*465mm | 410*290*240mm | 410*290*240mm | 518*290*240mm | 518*290*240mm | 528*310*250mm |
| Quantity/Ctn | 4PCS | 4PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
| Package Weight | 19KGS | 21.5KGS | 9.1KGS | 9.3KGS | 12KGS | 14.5KGS | 16KGS |
| Package Type | Color Box |
| Warranty | 1 Year |
| Prod Model: |
JGS-5000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Jgs-5000W |
| Rated Power: |
5000W |
| Input Voltage: |
12VDC,24VDC,48VDC |
| Output Voltage: |
110VAC,220VAC |
| Efficiency: |
50Hz, 60Hz |
| Wave Form: |
Pure Sine Wave |
| The Fuse: |
Built in |
| Protection: |
Low Voltage Alarm&Shut Down |
| USB Outlet: |
5V 500mA |
| Soft Start: |
Yes |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
>1000W |
| Brand: |
Jinggu |
Wenzhou Jinggu Photoelectronics Technology Co., Ltd. is a focus on energy efficiency, wind, solar and other electrical power equipment product development, production, sales and service of the national high-tech science and technology enterprises. Major production: Sine wave inverter, car inverter, solar inverter, solar controller, LED photoelectric, AC / DC power supply, scenery power systems, photovoltaic equipment and accessories and other products. And provide project consulting, system design and technical support services. Products have been widely used in finance, communications, power, transportation, automobiles, elevators, residential, research institutes, manufacturing and military industries.
The company has perfect quality control, production management, engineering management, administered four management systems, in particular the quality system, we implement strict ISO9001 and CE certification standards, quality control throughout the entire production process, IQC, IPQC, FQC, in strict accordance with SOP tested products, and equipped with advanced testing equipment, after each batch of product must be shipped to the customer QC confirmed. The company's technology strength, advanced production equipment, has a group of experienced R & D engineers and marketing staff.
Since the early pioneering adhering to the "quality first development force, perfected the needs of customers" business philosophy, adhere to the high-tech science and technology, excellent quality-based, focusing on talent introduction and training, establish a sound management mechanism, to create high Performance management team, improve marketing and service network, the products sell well in more than 30 provinces and municipalities and OEM / ODM exported to Europe, America, Africa and Southeast Asia and other countries.
Future, Crystal Valley photoelectric all employees will uphold the "energy industry, high-efficiency power" development mission, and you look forward to join hands together to create a new, green, energy-efficient world.
