USB 2.0 a Type Solder Connector

Name: USB 2.0 a Type Solder Connector
Brand: all-electronics-online.com
SKU: 781264785
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

OEM/ODM are always welcome

Basic Info:Unversal Serie Bus
Model NO.:
USB5-A4M1-WNS0-A0

Application: , ,Mobile Phone, PCB, Computer, Communication devices,Charger ,ect..
Interface Type: USB
Gender: Female type
Total Mating Force: 3.57kg Max
Total Unmating Force: 1.02kg Min
Pins: 9pin
Housing: PBT+Glass Fiber UL94 V-0
Contacts: Copper Alloy(5pin) Phosphor Bronze(4Pin)
Shell: Cold Roller Steel,Plating Nickel(80-120u")
Colour: Blue and choosable
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
Additional Info
Packing: Standrand Export Carton
Standard: RoHS compliant
Origin: China
HS Code: 8536901100
Production Capacity: 10, 000, 000 Pieces Per Month
Product Description
USB 3.0 Female PCB end Connector
We are manufacturer, exporter and wholesale supplier in China, We take special orders. Mini USB, USB3.0, USB2.0 connector,micro USB connector and USB cables etc.

Specifications
1,USB 3.0 Connector
2.ROHS Certificate ,USB3.0 Certificate,UL Certificate
3. MOQ:1K

Housing: PBT+Glass Fiber UL94 V-0 Blue and choosable
Terminal:Copper Alloy(5pin) Phosphor Bronze(4Pin) plating Au 1u" 15u" 30u"
Shell:Cold Roller Steel,plating nickel(80-120u")
Mating force:3.57kg Max unmating force:1.02kg Min

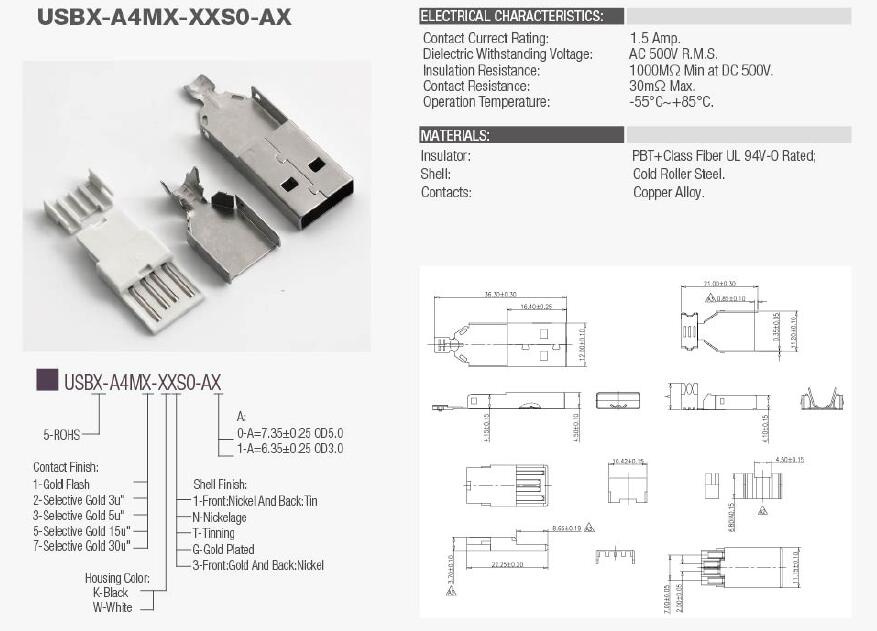

SPECIFATIONS
Curret Rating:	1.5Amp.
Dielectric Withstanding Voltage:	AC500V R.M.S
Insulation Resistance:	1000MΩ Min at DC500V
Contact Resistance(Low Level):	30MΩ Max.
Opertion Tempreture:	-55ºC~+85ºC

MATERIALS:
Contacts:	Copper Alloy(5Pin) ; Phosphor Bronze(4pin)
Insulator:	PBT+GF;UL94V-O Rated
Shell:	Cold Roller Steel

More info:Shell&Groun Finger: Stainless Steel

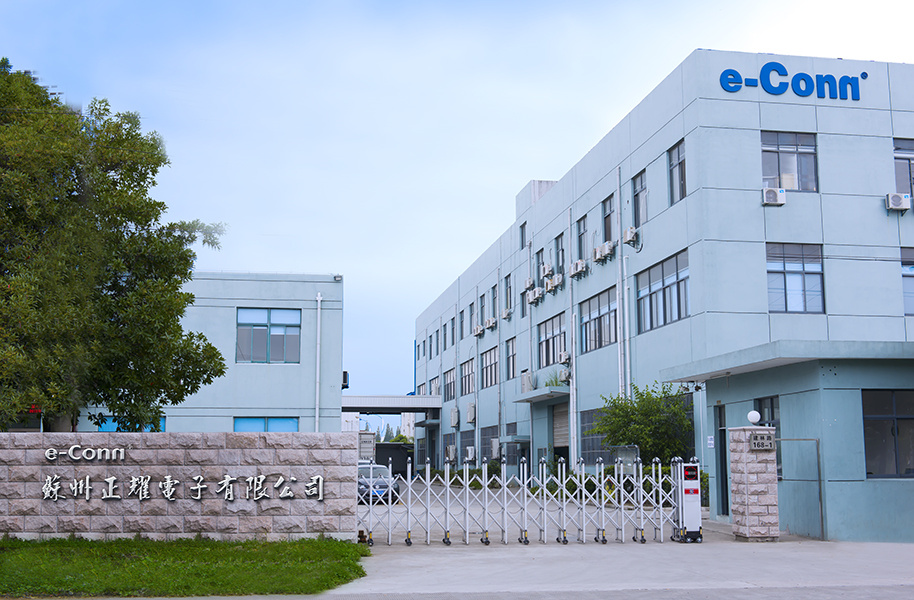

Company Overview:

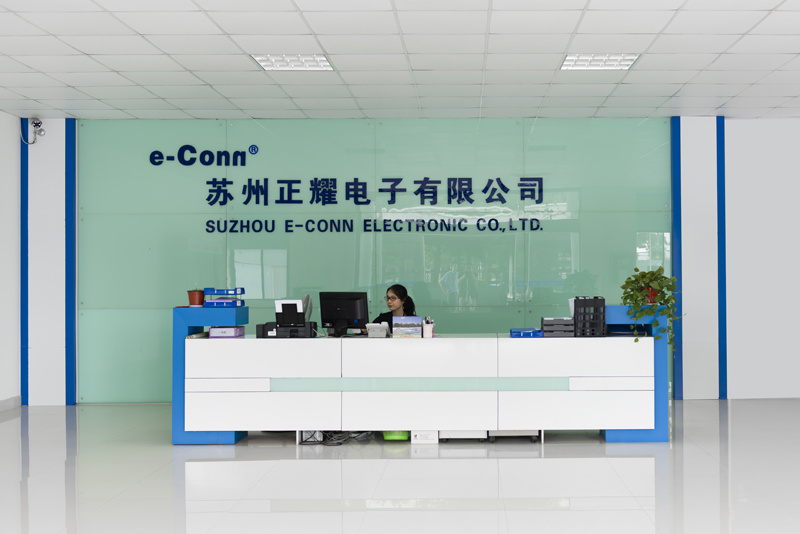

Reception desk:

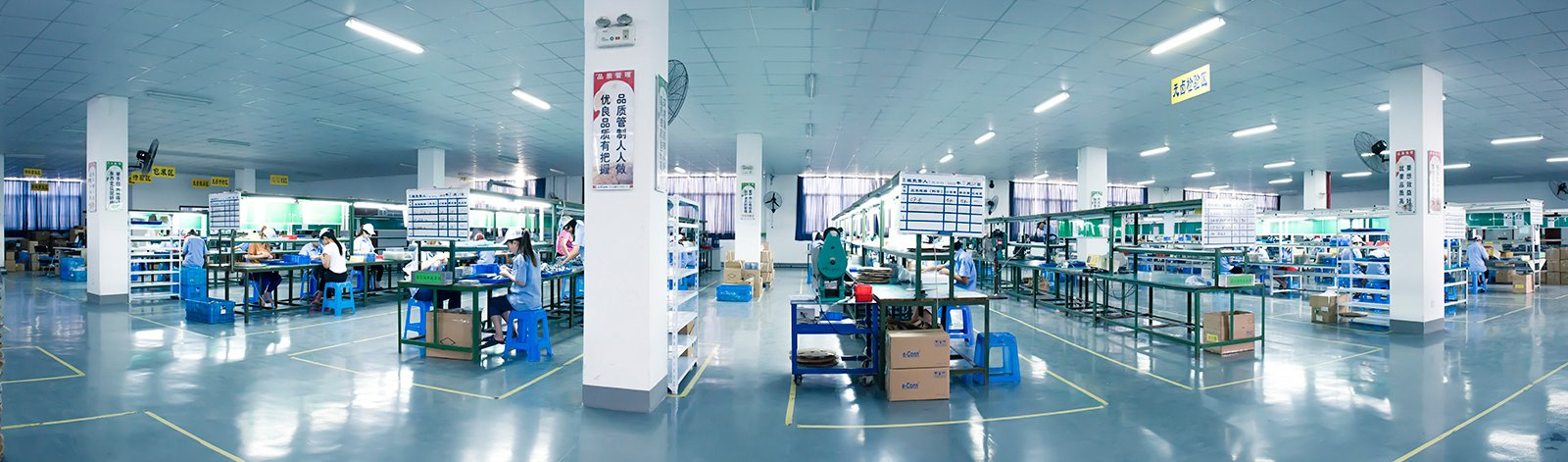

Assembly Workshop:

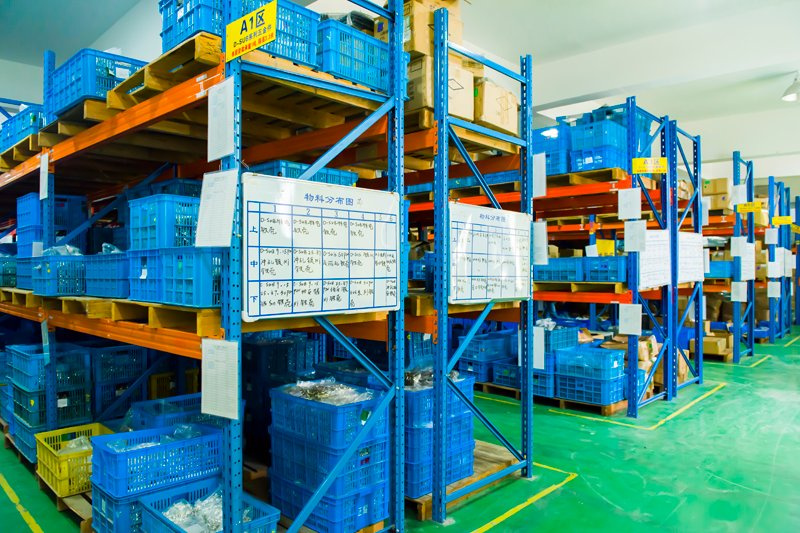

Material Warehouse:

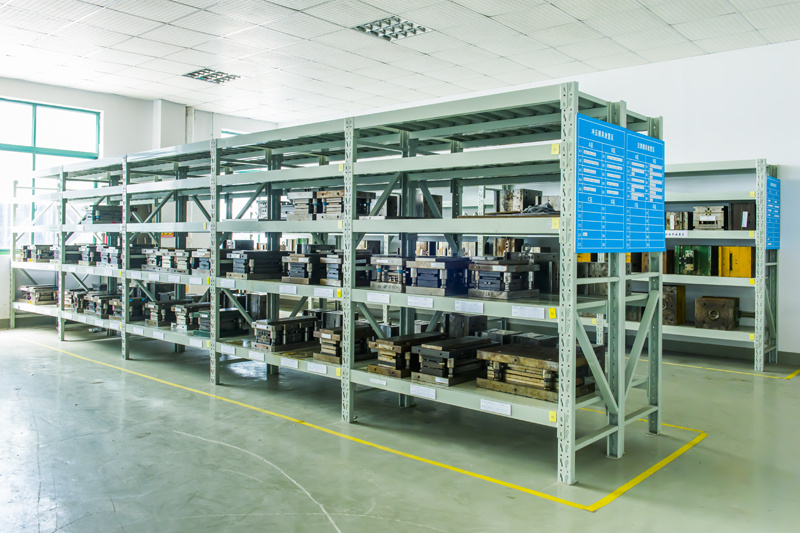

Tooling Warehouse:

Stratety: Insist on differentiation& diversity.
Spirit: Profession, Preciseness, Practicability, Self-examination
Value: Integrity management, continuous improvement and eco saving
Vision: Be famous connector supplier in China.
Mission: Customer satisfaction and employee happiness oriented.
http://www.sz-econn.com

Prod Model:	USB5-A4M1-WNS0-A0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Male
Application:	Cable Wire

Suzhou e-Conn provide connectors through basic parts, mold-open, hardware, plastic parts, die casting, lathe parts and connector automation mainly to industry control equipment, vehicle, new energy, medical treatment, network communication fields, consumer electronics and ect...Meanwhile suzhou e-Conn have been set up 8000 square meter affiliate company in Hubei province as a supporting base of Suzhou market.

Stratety: Insist on differentiation& diversity.

Spirit: Profession, Preciseness, Practicability, Self-examination

Value: Integrity management, continuous improvement and eco saving

Vision: Be famous connector supplier in China.

Mission: Customer satisfaction and employee happiness oriented

Logo of e-Conn

Color:

Logo mainly adopted sky blue color represents wide, wise, prudent company style.

E:

Take the first alphabet from Electronic and Ethernet represents e-Conn is engaged with computer related electronic industry.

Conn:

Take half of the word conn from word connector represents our main products are integrated design and manufacture service of connector.

Retrography n:

Retrography n represents differentiation, diversity characteristic of e-Conn connector.
