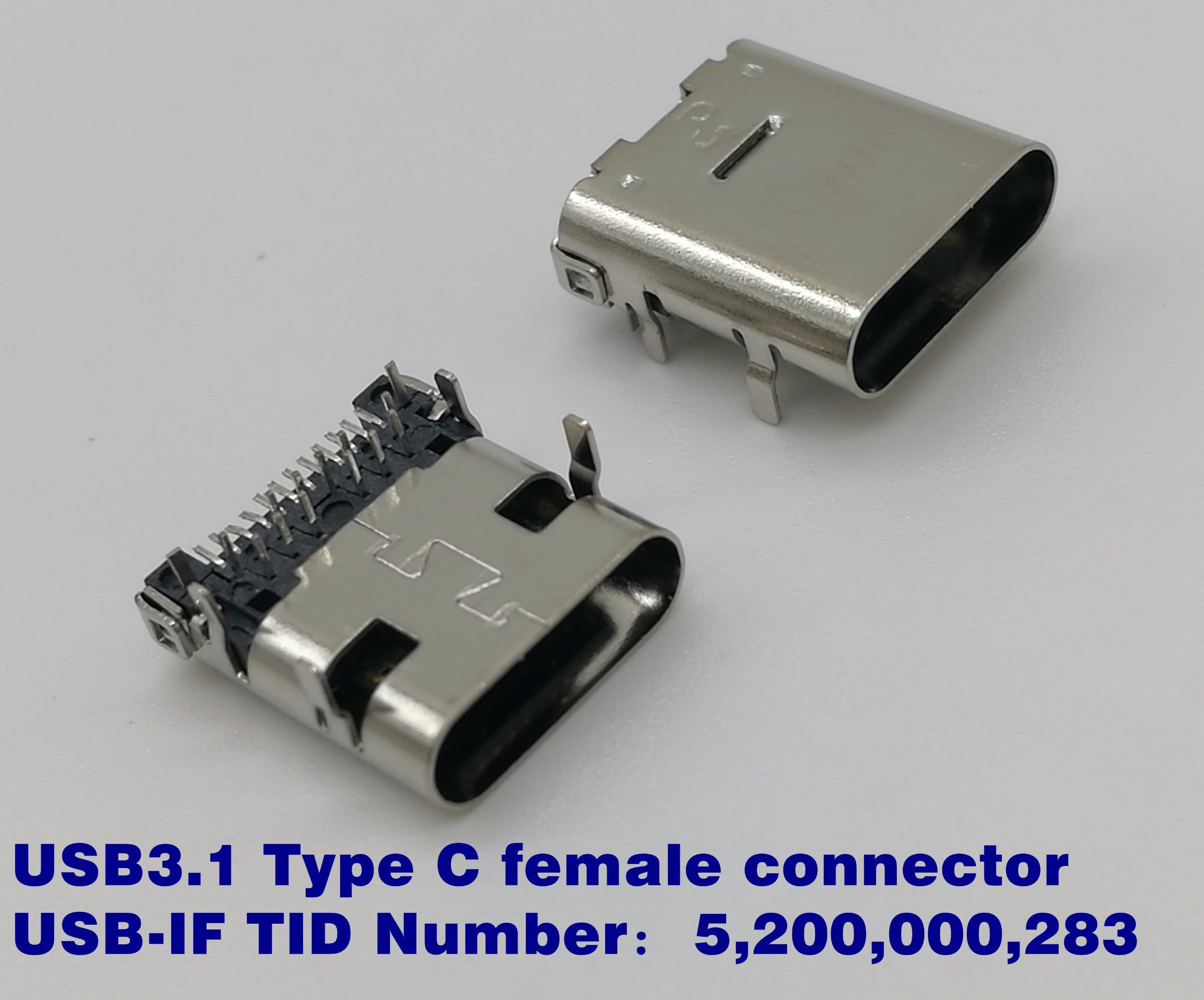

USB3.1 Type C Connector, USB-If Certified Number: 5200000283
| Price: |
US $ 0.22-0.29/Piece |
| Min Order: |
750/Piece |
| Pay Type: |
T/T,D/P,Western Union,Paypal,Money Gram |
Full-featured 24PIN Type C Famale connector .
USB3.1 Transmission standard: 10Gbps!!!Double row output forward after post.A~~~~Application:
Power for smart phone & Power Bank & Power Adaptor
HUAWEI P9, P9 puls, V8, XIAOMI5 , LE2 ,PRO6 OF MEIZU ,ZUK2,VIVO X5 PRO etc.B~~~Certification:ISO9001:2008 / ISO 14001:2004 / OHSAS18001 / TS16949:2009
C~~~Manufacturing:| TypeC connector | In house |
| TypeA connector | In house |
| Tooling | In house |
| Injection | In house |
| PCB | Out |
| SMT | Out |
| Soldering | In house |
| Cable | In house |
| Assembly | In house |
| Capacity | Cable:30KK/M |
D~~~Major customers:
Samsung,Western Digital, ECHOSTAR, PCT INTERNATIONAL, LEXMARK,ARRIS, XIAOMI, LUXSHARE,GoerTek,Foxconn, SHARP,ORIOM,Skyworth etc.E~~~Specification:

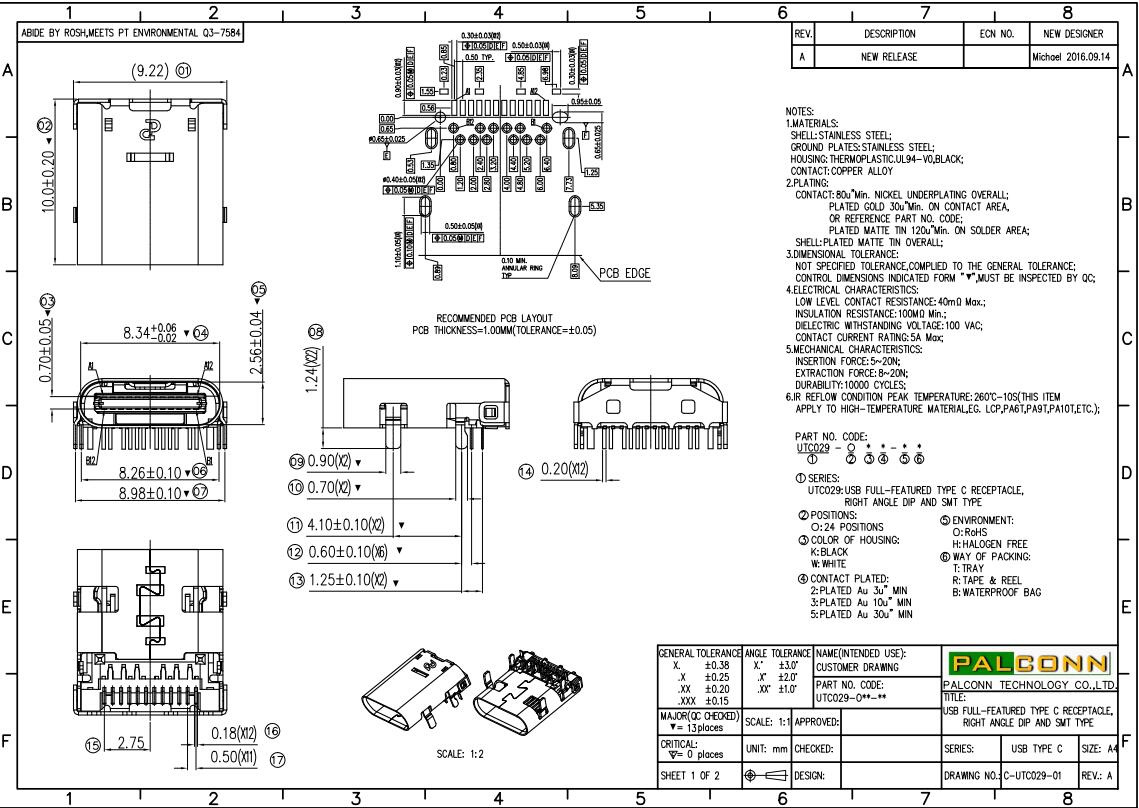

1. Materials:
Shell: Stainless Steel
Ground Plates: Stainless Steel
Hold Down Strap:Stainless Steel
Housing: Thermoplastic UL94-V0. Black
Conntact: High-conductivity copper alloys
2. Plating:
Connect: 80u" min. Nickel underplating Overall
Plated cold 30u" min. on contact area
or reference part no. code
Plated matte 120u" min. on solder area
Shell: Plated matte TIN overall
3. Electrical Characteristics:
Low level contact resistance: 40mΩ max.
Insulation resistance: 100MΩ min.
Dielectric withstanding voltage :100V ACContact Current Rating: 5A Max.
4. Mechanical Characteristics:Insertion Forec: 5~20N
Extractiong Forec: 8~20NDurability :10000 Cycles5. IR Reflow Condition Peak Temperature: 260 ºC - 10sHALOGEN FREE / ROHS / REEL PACKING
PalConn Technology OverviewCompany Found 2003
1400+ Employees.
PT is a leading global integrated interconnect
components provider of :
-- Mobile Phone , IT, Consumer, Medical, Automotive Industrial, Customer made, etc.

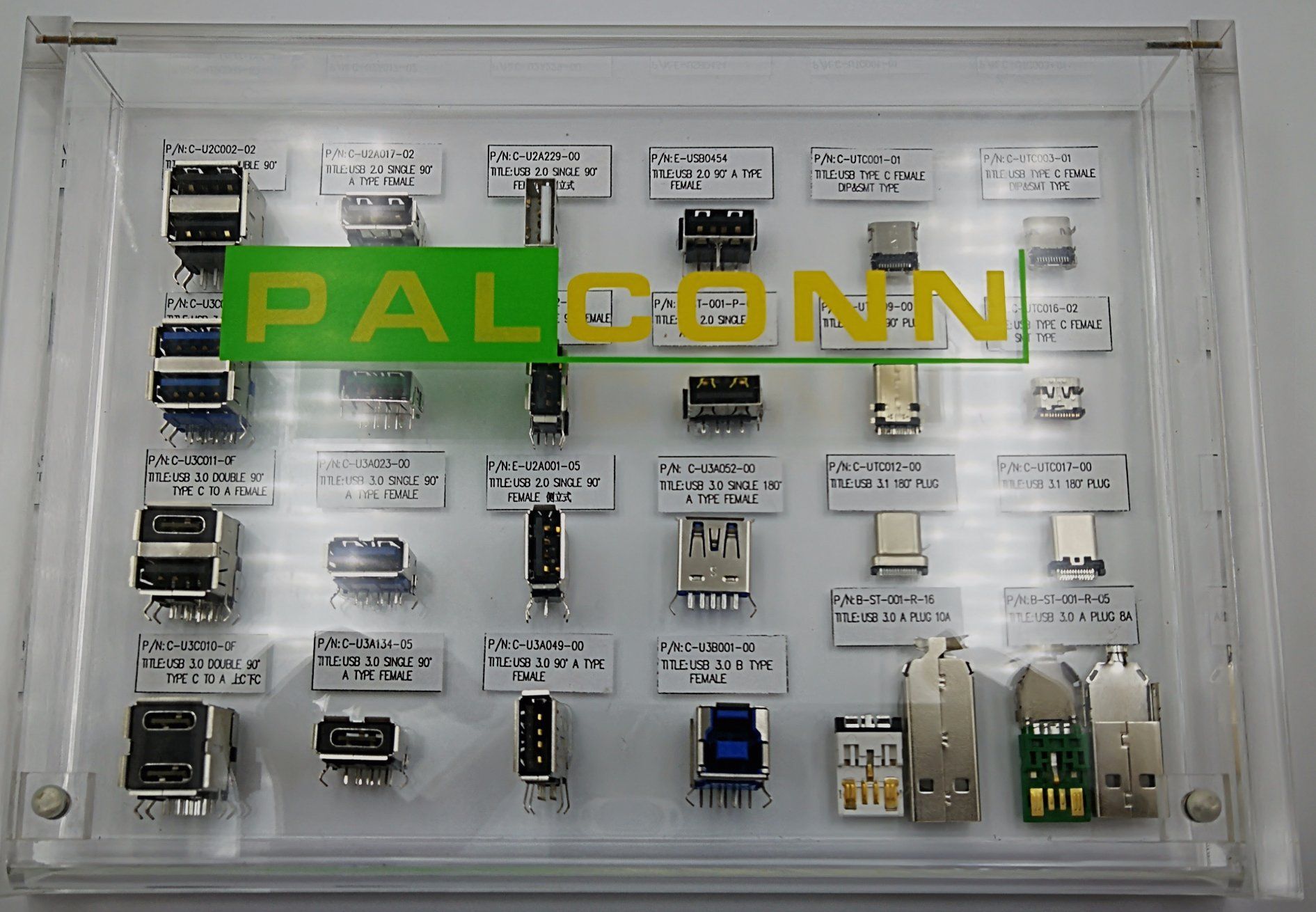

USB 2.0&3.0&3.1 Type C, RJ11&45, SATA, HDMI, Audio Jacks, DC Jacks, Battery, SD Card, WTB, Metal part, HDMI Cables. USB 3.1 Cables, USB 2.0&3.0 Cable, RCA Cables, RJ Cables, PalConn Technology Milestones2003: Shenzhen Factory Founded.
2006: ISO 9001:2008 Certified.
2009: ISO 14001:2004 Certified.
2009: Taiwan sales Office Established.
2013: Guizhou Factory
2015: TS16949 Certified.
2016: ISO 13485 Certified.
| Prod Model: |
UTC029-OK5-HR |
2003: Shenzhen Factory Founded.
• 2006: ISO 9001: 2008 Certified.
• 2009: ISO 14001: 2004 Certified.
• 2009: Taiwan sales Office Established.
• 2013: Guizhou Factory
• 2015: Moved to New ShenZhen Factory.
Components provider of:
-- Mobile Phone, Computer, LCD TV, Hard Disk,
Automobile, Consumer.
USB 2.0 & 3.0, SATA, HDMI, Audio Jacks, DC Jacks,
Battery, SD Card, WTB, Metal part, Cables
ShenZhen Factory
Headquarter(Sales, Design, Incoming&Shipments, Connectors Manufacture Plant)
Occupied Area: 140, 000 Sq. FT.
Employees: 450
GuiZhou Factory
Cables Manufacture Plant
Occupied Area: 100, 000 Sq. FT.
Employees: 550
ShenZhen Factory
Headquarter(Sales, Design, Incoming&Shipments,
Connectors Manufacture Plant)
Occupied Area: 140, 000 Sq. FT.
Employees: 450
We have 40 USB connector, HDMI connector and audio connector of the invention patent.
Our company has lots of well-known customers. It owns experienced, high skillful, up-and-coming, and internationalized management team and high-quality staff. Relying on scientific management model, rich technical strength, and advanced manufacturing and testing equipment, the company is actively expanding markets both at home and abroad, and is catching up with industry leading enterprises. Meanwhile the comprehensive and complete production model from research and development, precision mould manufacturing, components stamping and injection, finished product assembly to final inspection enables us to preferably control product quality and provide customers with favorable price and best delivery date.
Our company adheres to management spirit of " Integrity, Innovation, Self-improvement, Responsibility" and has built up the modern enterprise management system. Meanwhile it obtained certificate of ISO9001 quality management system in 2006, LED in ERP operation management system in 2007, and passed ISO14001: 2004 environment system in 2009 and OHSA18000 in 2012. Furthermore, It is a member of USB and HDMI association.
In order to improve the competitiveness of products, in 2015, we achieved CHB 100% stake. CHB products: USB2.0, USB3.0, USB3.1 common mode inductance, and Palconn product application coincidence. Through the merger, we are able to provide customers with proven USB connector products and EMI complete solution. After the merger, will retain Palconn and CHB 2 brands. Unified sales management by Palconn.
Major customers:
Samsung, LG, WD(Western Digital), ECHOSTAR, MI, ARRIS, F5, PCT, LEXMARK, TIVO, FOXCONN, SHARP, ORION, GOER TEK, PHIHONG, SKYWORTH, TENPAO, SSK
