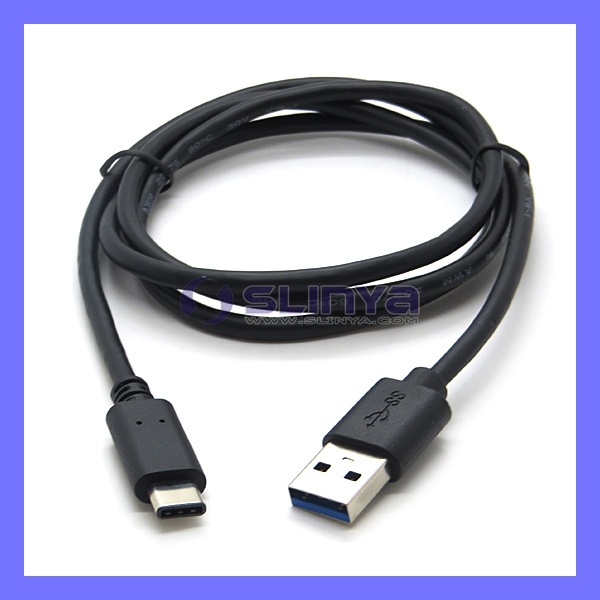

We are a professional usb cable factory.This USB3.1 Type C cable are very supper speed for charger and data ,This USB3.1 type c cable can work well with New macbook and Nokia N1 Tablet .we can do any length for this USB type C able .
Specifications:
| Item name | Super Speed USB 3.1 Cable Type C to AM |
| Connector | USB3.1 cable male to female |
| connector finish | Gold or Nickel-plated connector |
| Color | Blue or black color available |
| Length | 1-5M available |
| Data speed | USB3.0 super speed of up to 5GBps supported |
| Compatibility | Backward compatible with USB1.1&2.0, 3.0 |
| Outer diameter | 4.5mm or 5.5mm |
| Lines | Standard 9 lines |
| Conductor | Bare copper or tined-copper |
| Ferrite cores | Optional |
Features:
SuperSpeed Data Transfer Rate
USB 31 Type C: both side plugable, no need to change to the correct side
SuperSpeed USB 3.1 Delivers up to 10x USB 2.0's Transmission Rate
USB 31 Cable Supports Full-duplex Data Transmission
USB 3.1 is More Power Efficient
USB 3.1 Cable Retains the Plug and Play Feature and is Fully Compatible with USB 2.0
USB 3.1 Cable Connectors are Added 5 Channels Compared with USB 2.0 (4 of the 5 Channels are Used for a Full Duplex Data Transmission)
USB 3.1 Cable Power Ability is 900mA. USB Hub Could Connect More Equipment at the Same Time (USB 2.0 is Only 100mA)
Cable length: 6 Feet
Backwards compliant with High-Speed USB 2.0 port (transfer rate at 480Mbps) as well as USB 1.1
Supports 32-bit & 64-bit Windows XP/Server 2003/Vista/Server 2008/Windows 7 or later
Electrical:
Hi-Pot: DC 300V 10ms
Insulation Resistance: 10M OHM /300V Min.
Contact Resistance: 0.01 OHM Max.
Shield up to 65% braid.
Working Temperature: -25oC ~ +85oC
Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
