Utl 50mm2 Single Pole High Current Aluminum Cable Terminal Block

Utl 50mm2 Single Pole High Current Aluminum Cable Terminal Block
Price: US $ 1.1-1.68/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: JUT10-50
Type: Socket Terminals
Material: Aluminum
Application: Power Distirbution
Certification: Ce
Brand: Utl

Product Description


UTL- JUT10 Series High current Single-pole Terminal Block for Al/Cu conductors
-JUT10-50 (up to 50mm2 aluminum cable)


Product Description:

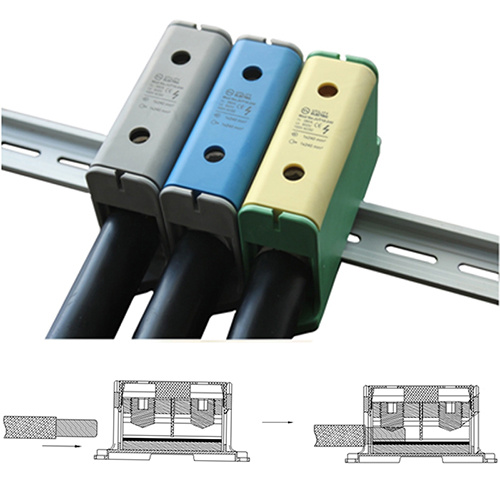

The JUT10 series terminal blocks were designed for aluminum/ copper cables connected in/out to share high current. It works as bus-bar power distributors which can be mounted on NS35/7.5 rail or wall by screws.

The cable size includes 50mm2, 95mm2, 150mm2 and up to 240mm2.

Custom product can be made upon request!

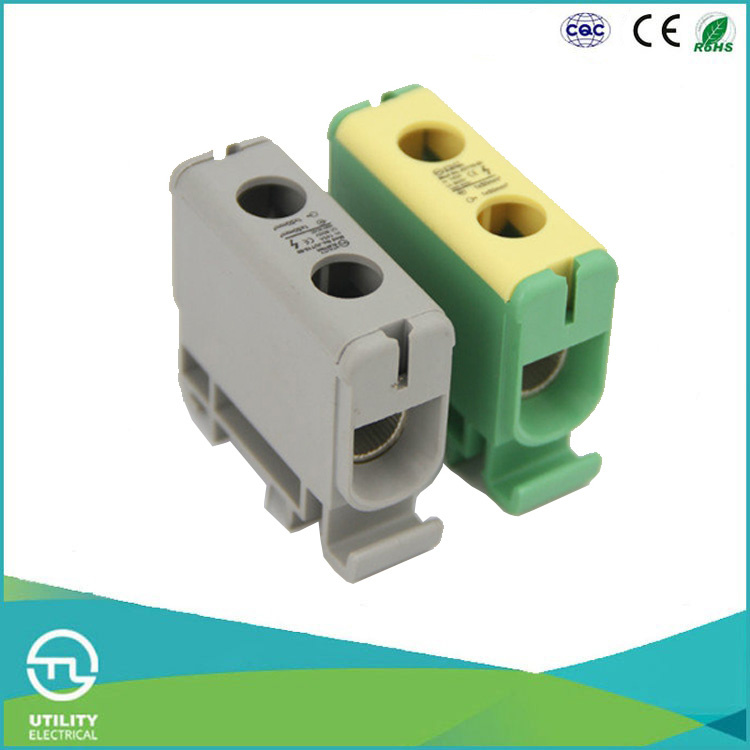

Product Photos:

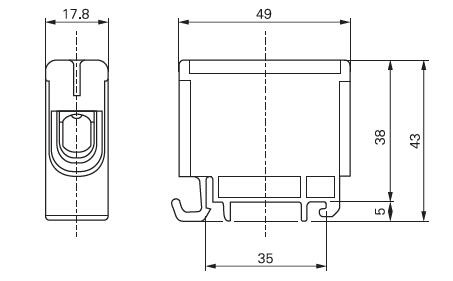

Parameters:

Material
HousingPA66(Nylon) UL94 V-0
ConductorAluminum
ScrewSteel Zinc Plated (Hexagon 5mm)

Working Condition
Operating Temperature-40ºC to +105ºC
StandardEN61238-1, EN60947-7-2

Technical Specification
Conductor Cross-sectionAl 6~50mm2/ Cu 2.5~50mm2
Conductor SizeAWG1/0~6
Nominal CurrentAl 145A/ Cu 160A
Nominal Voltage800V
Number of Pole1
Tighten Torque(Nm)4Nm(35~95mm2)/ 12Nm(120mm2)
N.W35g

CertificationCE, CQC



Trading Condition:
1. NO MOQ!
2. Lead time: 7-15 working days
3. 1 year warranty
4. Payment: T/T, PayPal, W/U
