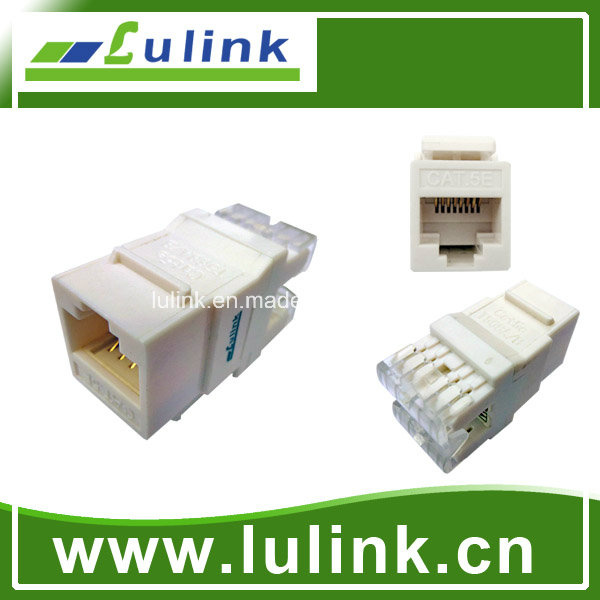

UTP Cat5e 90 Degree Keystone Jack

UTP Cat5e 90 Degree Keystone Jack
Price: US $ 0.6/Piece
Min Order: 500/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
UTP Cat.5e Keystone Jack
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 100 Milliohms MAX
4. Insulation resistance: 1000 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL:
1. Storage: -40°TO +85°
2. Operation: 0°TO 70°
Conform to TIA/EIA 568B Category 5e
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL:
1. Housing material: PC UL94V-0
2. Inser material: Flame retardancy ABS UL94V-0 / V-2
3. PCB material: FR-4 Thickness:1.6mm
4. Contact material: Phosphor bronze stamp PIN T=0.35mm
5. IDC Contact material: Phosphor bronze T=0.50mm with nickel plating
6. Wire: AWG 24-26

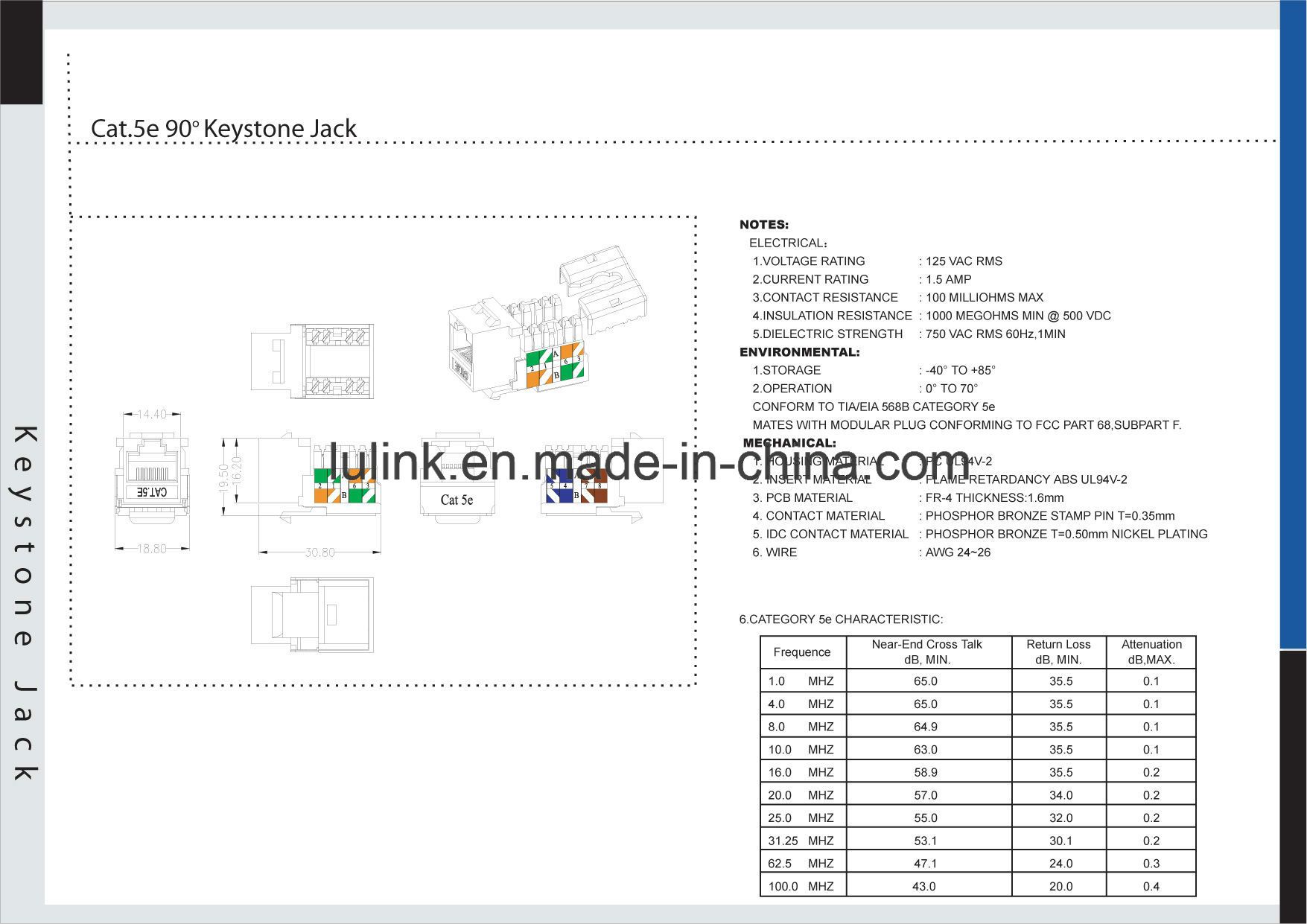

drawing:

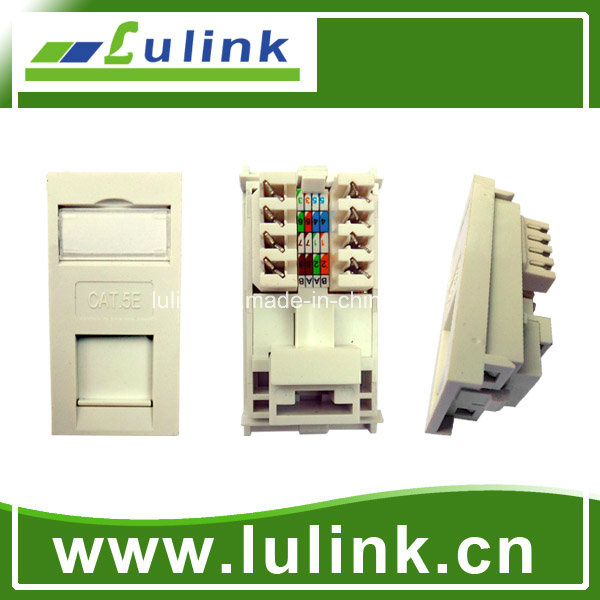

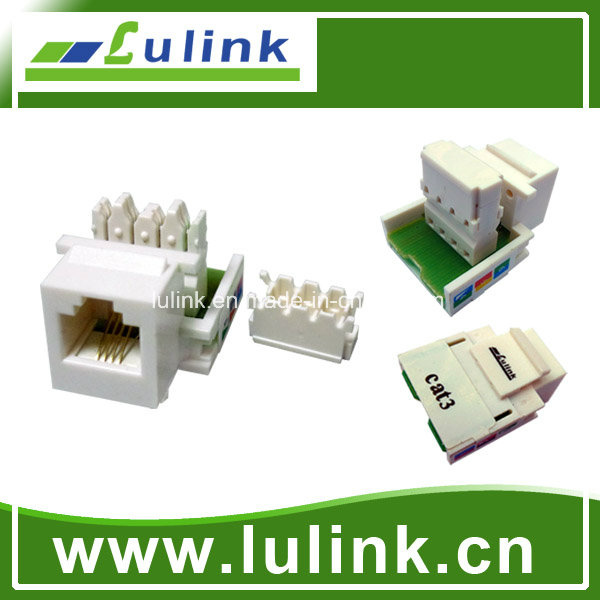

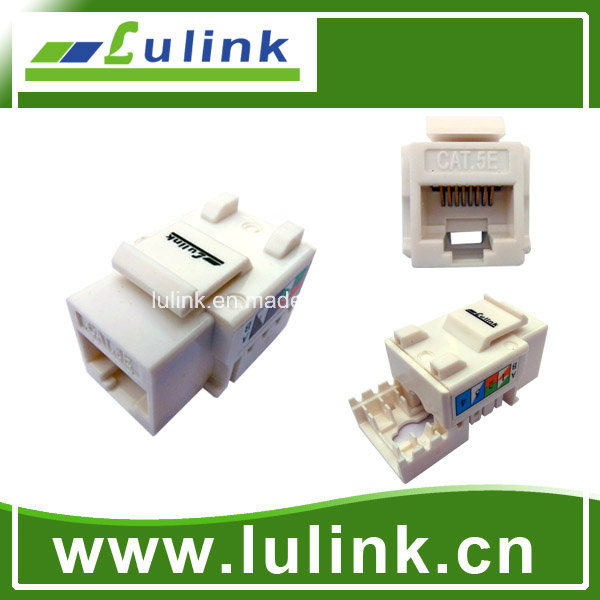

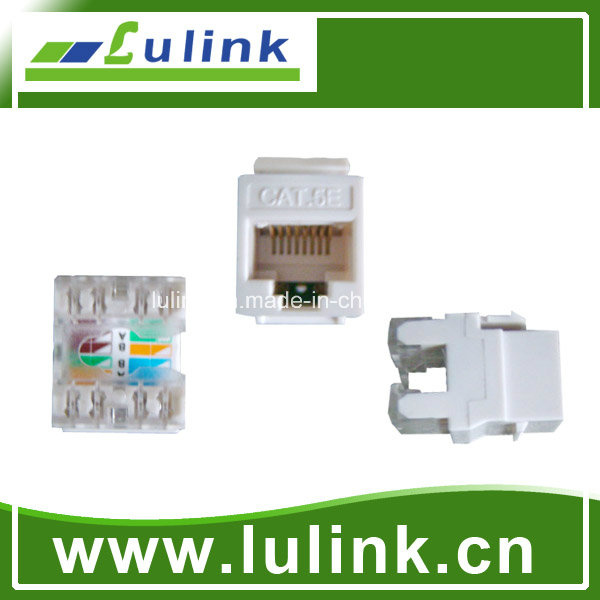

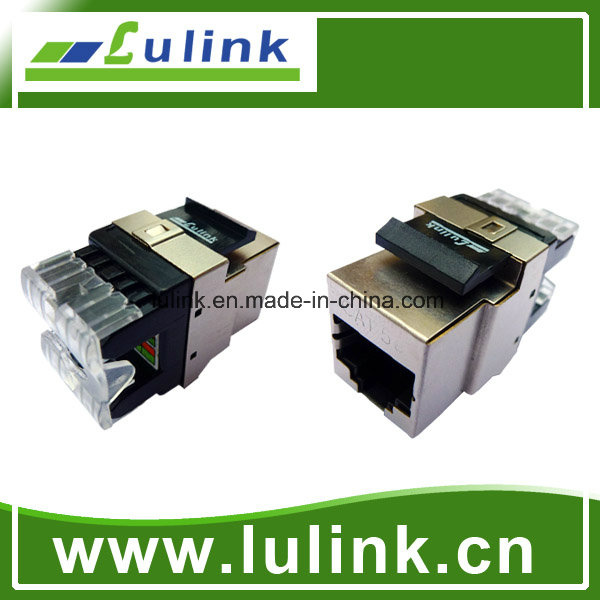

product pictures of other models:






Prod Model: LK-5KJU015
Usage: Network
Type: Wired
Support Network: Ethernet
Information Content: Data
Certification: RoHS
Condition: New
