Product Description

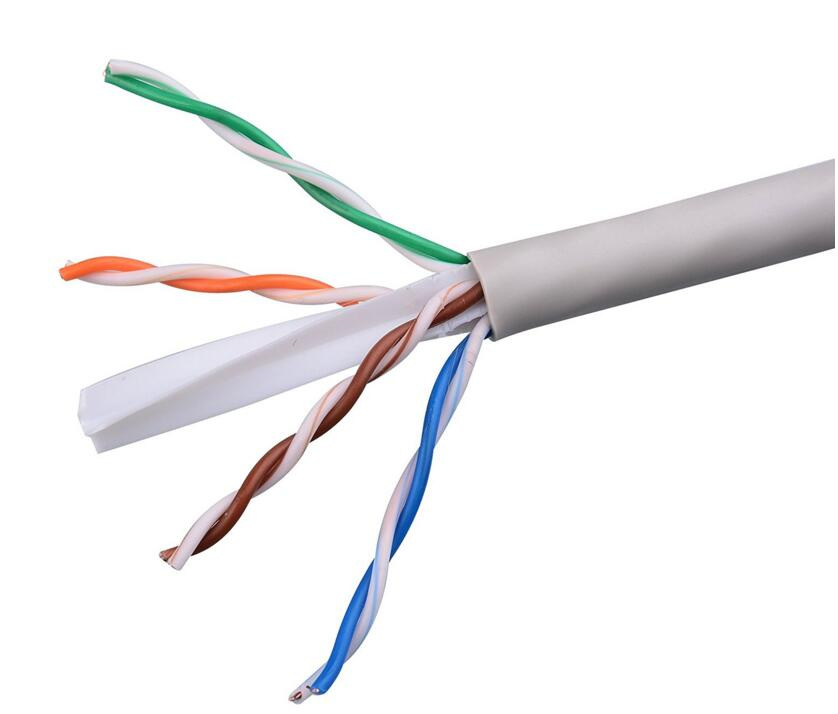

Category 6 cable, commonly referred to as Cat6, is a cable standard for Gigabit Ethernet and other network protocols. This cable provides performance of up to 500 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T/1000BASE-TX (Gigabit Ethernet) .
Key Features
Cable Type: CAT6Cable Length (meter): 305 meters (1000ft)Cable Conductor Material: CopperCable Jacket Material: PVC/LSZHCable Gauge: 24 AWG or 23 AWGCable Color: BlueCable Performance: 500 MHzCable Structure: Solid/stranded
Technical Data:
Supporting 1 Gigabit EthernetFor connecting devices to a router or switch or simply an Ethernet network outletPower over Ethernet (POE) and Voice Over IP (VOIP) compliantFoil shielding can prevent electromagnetic interference and thus boost performanceCat6 500 MHz Foil Shielded FTP Snagless Patch Cable
| UTP CAT 5E PE |
| Product Name/Code : UTP Cat 5E PVC | Performance |
| Frequency | RL | Attenuation | NEXT | PSNEXT |
| Application | (MHz) | (dB) | (dB/100m) | | |
| 100 Base-T4 | | | min. | max | (dB) | |
| 100 Base-TX | | 0.722 | 22.60 | 1.82 | 67.00 | 64.00 |
| 100VG - AnyLAN | | 1.000 | 20.20 | 2.00 | 65.30 | 62.30 |
| 1000 Base-T (Gigabit Ethernet) | 4.000 | 23.00 | 4.10 | 56.30 | 53.30 |
| 155 Mbps ATM | | 8.000 | 24.50 | 5.80 | 51.80 | 48.80 |
| 622 Mbps AT | | 10.00 | 25.00 | 6.50 | 50.30 | 47.30 |
| Reference Standard | 16.00 | 25.00 | 8.20 | 47.30 | 44.30 |
| EIA/TIA 568B & ISO/IEC 11801 | 20.00 | 25.00 | 9.30 | 45.80 | 42.80 |
| Cable Construction | 25.00 | 24.30 | 10.4 | 44.30 | 41.30 |
| Conductor | Solid Bare Copper | 31.25 | 23.60 | 11.70 | 42.90 | 39.90 |
| AWG | 24 | 62.50 | 21.50 | 17.00 | 38.40 | 35.40 |
| Conductor Diameter(mm) | 0.5 | 100.00 | 20.10 | 22.00 | 35.30 | 32.30 |
| Insulation | Solid PE | Frequency | ELFEXT | PSELFEXT | | ACR |
| Average Thickness(mm) | 0.217 | (MHz) | | | |
| Insulation Diameter(mm) | 0.95 | | (dB) | (dB) | | (dB) |
| | | 0.722 | 66.00 | 63.00 | | 65.00 |
| Sheathing | PVC/PE | 1.000 | 63.8 | 60.8 | | 63.30 |
| Thickness(mm) | 1.1 | 4.000 | 51.7 | 48.7 | | 52.20 |
| Diameter(mm) | 5.20 | 8.000 | 45.7 | 42.7 | | 46.00 |
| | | 10.00 | 43.8 | 40.8 | | 43.80 |
| Core Identification/Color Code | According to customer request | 16.00 | 39.7 | 36.7 | | 39.10 |
| Bending Radius | 6xOverall Diameter | 20.00 | 37.7 | 34.7 | | 36.50 |
| | | 25.00 | 35.8 | 32.8 | | 33.90 |
| | | 31.25 | 33.9 | 30.9 | | 31.20 |
| Fire Performance | 62.50 | 27.8 | 24.8 | | 21.40 |
Flame Propagation Test to IEC 60332-Part-1(PVC)
Flame Propagation Test to IEC 60332 Part 1 and Part 3
(FRPVC) | 100.00 | 23.8 | 20.8 | | 13.30 |
| Electrical Performance |
| Max.Conductor DC Resistance at 20 ºC(Ω/Km) | < 93.8 |
| Operating Temperature( ºC ) | 70 |
| Velocity of propagation | 68% |
Application:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc.
Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
