| Prod Model: |
cat5e/cat6 patch cord cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Copper/Ccag/CCA/CCS |
| Insulation: |
PE |
| Wires: |
8 |
| Twisted: |
Yes |
| Rip Cord: |
Yes |
| Jacket: |
PVC |
| Jacket Color: |
Blue,White,Yellow,Black,Green |
| Length: |
1.2.3... |
| Brand Name: |
ADP/OEM |
| Application: |
Submarine Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
RoHS |
| Model: |
Cat5e/CAT6 |
| Brand: |
ADP/OEM |
Product Description

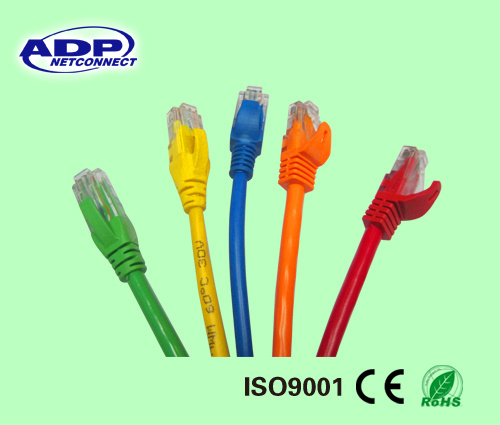

UTP/FTP cat5e/cat6 Patch cord Cable RJ45 patch cablePATCH CORD CABLE:
Conductor: 24AWG(Solid or Strand) CU/CCA/CCS
Insulation: 0.92mm+/-0.06HDPE
Cores/Pairs: 8/4
Sheath: 5.20+/-0.1mm PVC / LSOH / PVC (UV)/ PE / HFFR
Packing: 1000ft/pull box, 2boxes/out carton
Or as customers' requirments.
Elongation: Min. 300%
Temperature Range: -20 up to +75C
Tensile strength: Min. 1.68Kg/mm2
Conductor Resistance: Max. 9.38 ohm/100m
Resistance Unbalance: Max. 2%
Insulation Resistance: Max. 150 ohm/Km
Mutual Capacitance: Max. 5600pF/100m
Capacitance Unbalance: Max. 330pF/100m
Impedance: 100+/-15
Spark Test: 2000V
Velocity of propagation: 67%
| Type | UTP CAT5 Enhanced Solid CABLE 0.3M TO 100M |
| Applications | Horizontal and Building Backbone Cable.
Category 5e, Gigabit Ethernet, 100Base-Tx, 100Base VG ANYLAN, 155ATM, 622ATM, Token ring, TP-PMD Audio, Multimedia and Telephone network, etc. |
| Descriptions | 24AWG Solid bare copper condutors, polyethylene (PE)insulation , PVC jacket, rip cord |
| Standard | TIA/EIA 568A/568B IEEE802.3U/IEEE 802.5 ISO/IEC 11801 EN50173 |
| Conductor | Material | Solid Bare Copper (Copper Clad Aluminium also available) |
| Diameter | 24AWG (1/0.50+-0.02mm) |
| Construction | 4*2*0.50mm |
| Ripcord | yes |
| Drain | no |
| Dielectric | Material | PE new material |
| Insulation Colors | green orange brown blue |
| Insulation thickness | 0.269MM+-0.05mm |
| Insulation OD | 0.90MM+-0.05mm |
| Pair | Unshielded 4 Twisted Pair |
| Pair | Pair Color Code Chart |
| Number | Color | Function |
| 1 | white/blue stripe & blue | Unused & Unused |
| 2 | white/orange stripe & organge | Transmit data+ & Transmit data- |
| 3 | white/green stripe & green | Receive Data+& Receice Data- |
| 4 | white/ brown stripe & brown | Unused & Unused |
| Jacket | Material | Layor |
|
| PVC - Polyvinyl Chloride new material |
| Color | Grey ( It can be made according to your requirement) |
| Thickness | 0.6mm+-0.1mm |
| Nominal O. D | Overall Diameter | 5.2mm+-0.3mm |
| Bulk Cable Weight | 8.9kgs/305m |
| Storage Temperature Range | -40° C To +70° C |
| Operating Temperature Range | -20° C To +70° C |
| Work Datapass | Min. > =180m-200m |
| Legend(Surface Ink Print) | ADP CATEGORY 5 ENHANCED UTP LAN CABLE 24AWG 4PAIR 001Mtr ... As customer order |
| Rated Temperate | 70c |
| Flame Rating | No Plenum |
| Packing | packing | 1000ft/roll...As customer order |
| Package | Paper carton |
| Carton Size | Copper conductor |
| 46*35*36CM |
|
|
|
|
| Q' TY /CTN |
| 2box/carton |
|
|
|
| Terms & Condition | MOQ | 200box |
| OEM | Provided for free box design |
| Capacity of production | 500km/day |
| Payment terms | 30% deposite by T/T, balance beforet the delivery |
| Delivery Time | Within 7days after got the deposite |
| Certificates | CE , ROHS & ISO 9001: 2008 |
| Delivery port | Shenzhen port |
Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.

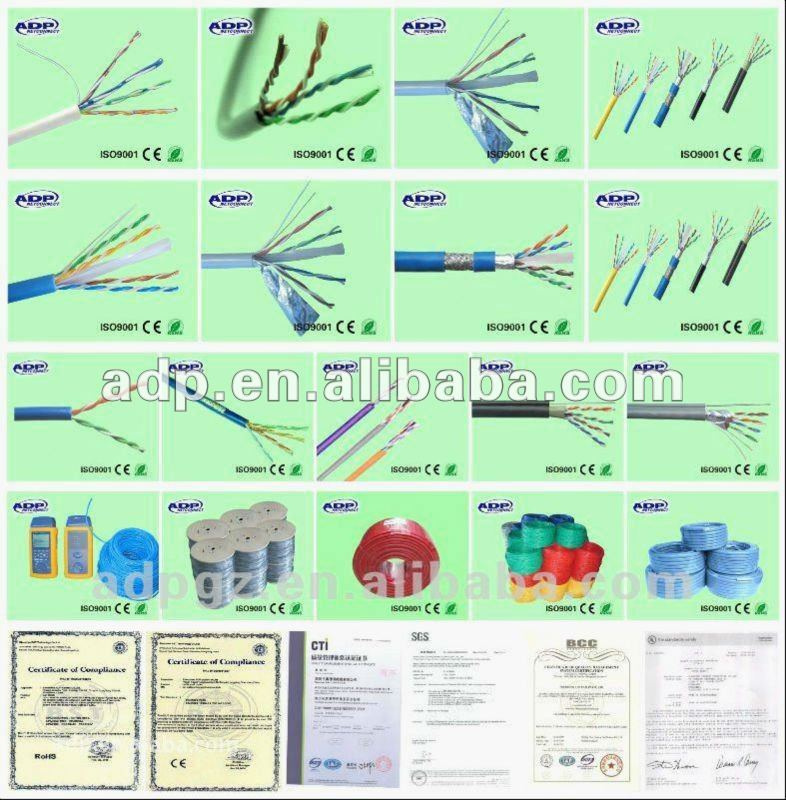

Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

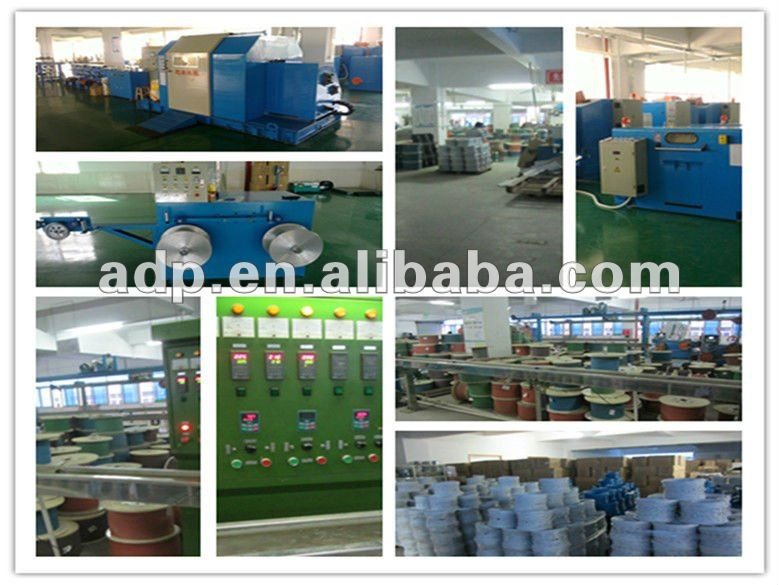

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.
Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.
We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
