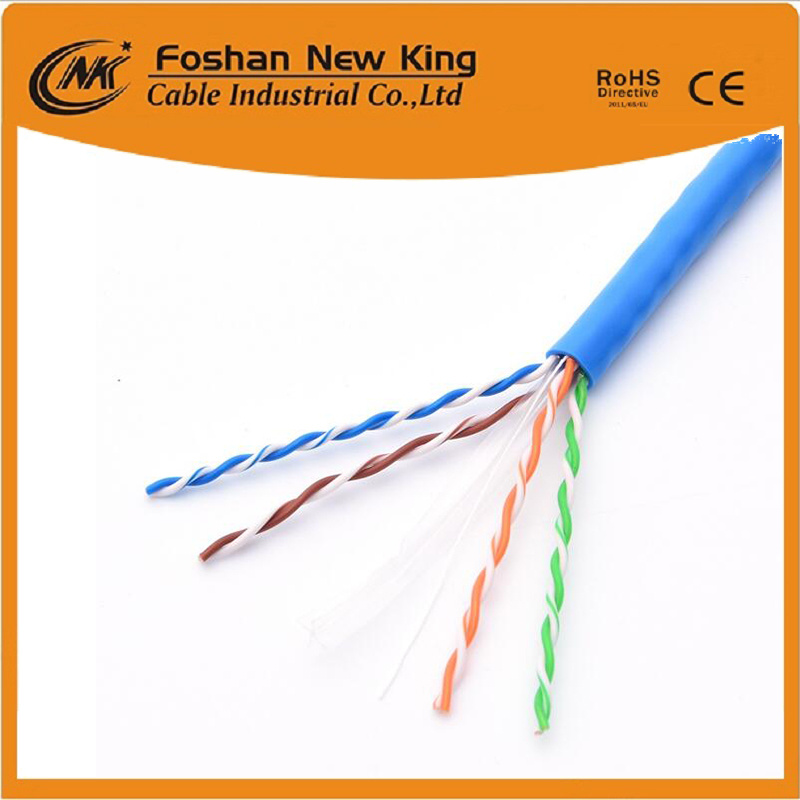

UTP CAT5e Lan Cable/Network Cable

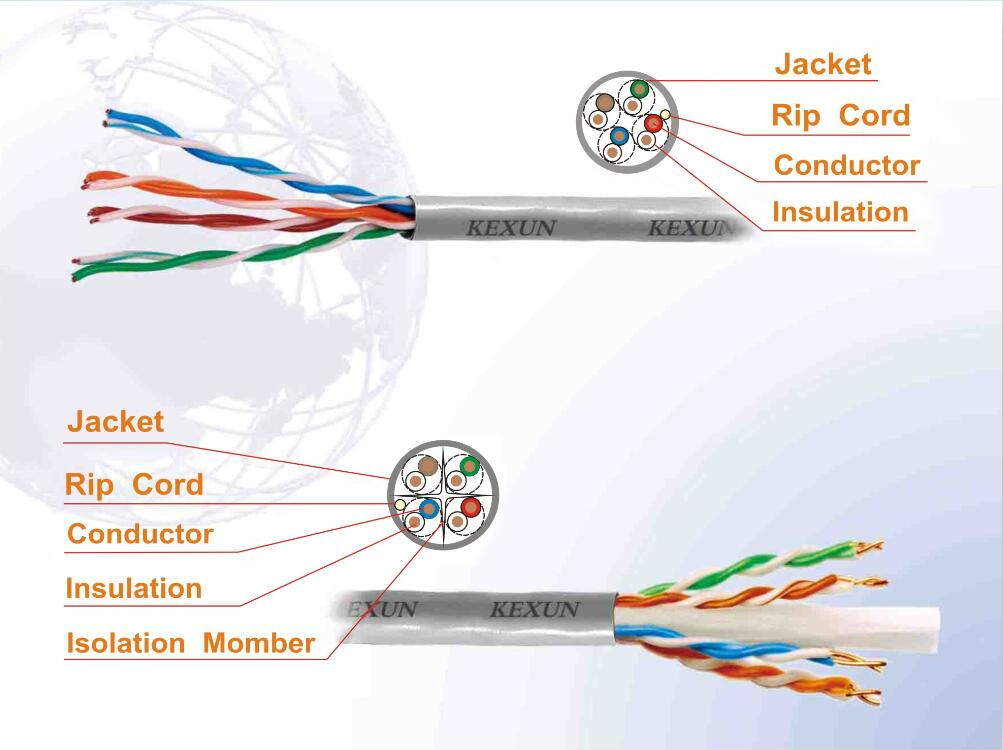

1 Product specification | Constrution | Material | Diameter(mm) |
| 1.Conductor | Bare copper | 0.51±0.005 |
| 2.Insulation | High-density polyethylene | 0.93±0.020 |
| 3.Rip cord | nylon | 300D |
| 4.Jacket | LSZH | 5.50±0.20 |
2 Mchanical Properties | Elongation | Min.300% |
| Temperature Range | -20 Up to +75ºC |
| Tensile Strength | Min1.68KG/mm2 |
3 Electrical Properties | Conductor Resistance | Max.9.38 ohm/100m |
| Resistance Unbalance | Max.2.5% |
| Insulation Resistance | 5000 ohm/KM |
| Mutual Capacitanue | Max.5600pF/100m |
| Capacitanue Unbalance | Max.330pF/100m |
| Impedance | 100±15 ohm |
| Spark Test | 2.0KV |
| Velocity of Propagation | 69% |
4 Technical Performance Frequency
MHZ | Attenuation
(dB/100M) | RL
(dB) | Next
(dB) | ELFEXT
(dB/100M) |
| 1MHZ | 2.1 | 15 | 62 | 61 |
| 4MHZ | 4.3 | 15 | 52 | 49 |
| 8MHZ | 6 | 15 | 48 | 47 |
| 10MHZ | 6.9 | 17 | 46 | 41 |
| 16MHZ | 8.9 | 17 | 43 | 37 |
| 20MHZ | 10.0 | 17 | 42 | 35 |
| 25MHZ | 11.1 | 21 | 41 | 34 |
| 31.3MHZ | 12.4 | 20 | 39 | 31 |
| 62.5MHZ | 17.7 | 19 | 34 | 25 |
| 100MHZ | 23.4 | 17 | 31 | 21 |
5 About us
6 Our Packing:Wooden reel, plastic reel,paper reel,carton box
100m: PE protective layer, 5 roll per carton box
305m: one roll in one carton box, two carton boxes in one master carton
500m: wooden roll package, carton box as outer packageNote:Any packing available according to your request.
7 Our main product:(1)75ohm Series Coaxial Cable Specifications: RG6,RG,59,RG7,RG11
(2)50ohm Series Coaxial Cable Specification:
RG58,RG8,RG213,3D-FB,5D-FB,7D-FB,8D-FB,PLMR-200,
PLMR-240, PLMR-300, PLMR-400
(3)Monitor Cable:RG59+2DC,RG6+2DC
(4)Security Cable:RVB,RVV
(5)Lan Cable:UTP/FTP CAT5,CAT5e, UTP/FTP CAT6,CAT6e
8 FAQ:
(1)Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 27 years production experience.
(2)Q: Can you print our logo or company name in cable?
A: Yes,we can print your logo or company name on products.
(3)Q:Can you accept customize or design for us?
A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(4)Q:Is it possible to get a free sample ?
A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(5)Q:What is your MOQ ?
A: Usually,our lan cable MOQ is 61000 meters.
(6) Q:If I want to purchase,how to pay?
A: Usually, we do T/T in 30% deposit before production,70% balance against copy of B/L. Also payment terms are negotiable depending on customer's request.
Note: Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .
If you are interest in any our products,please do not hesitate to contact us ,we will do our best for you.

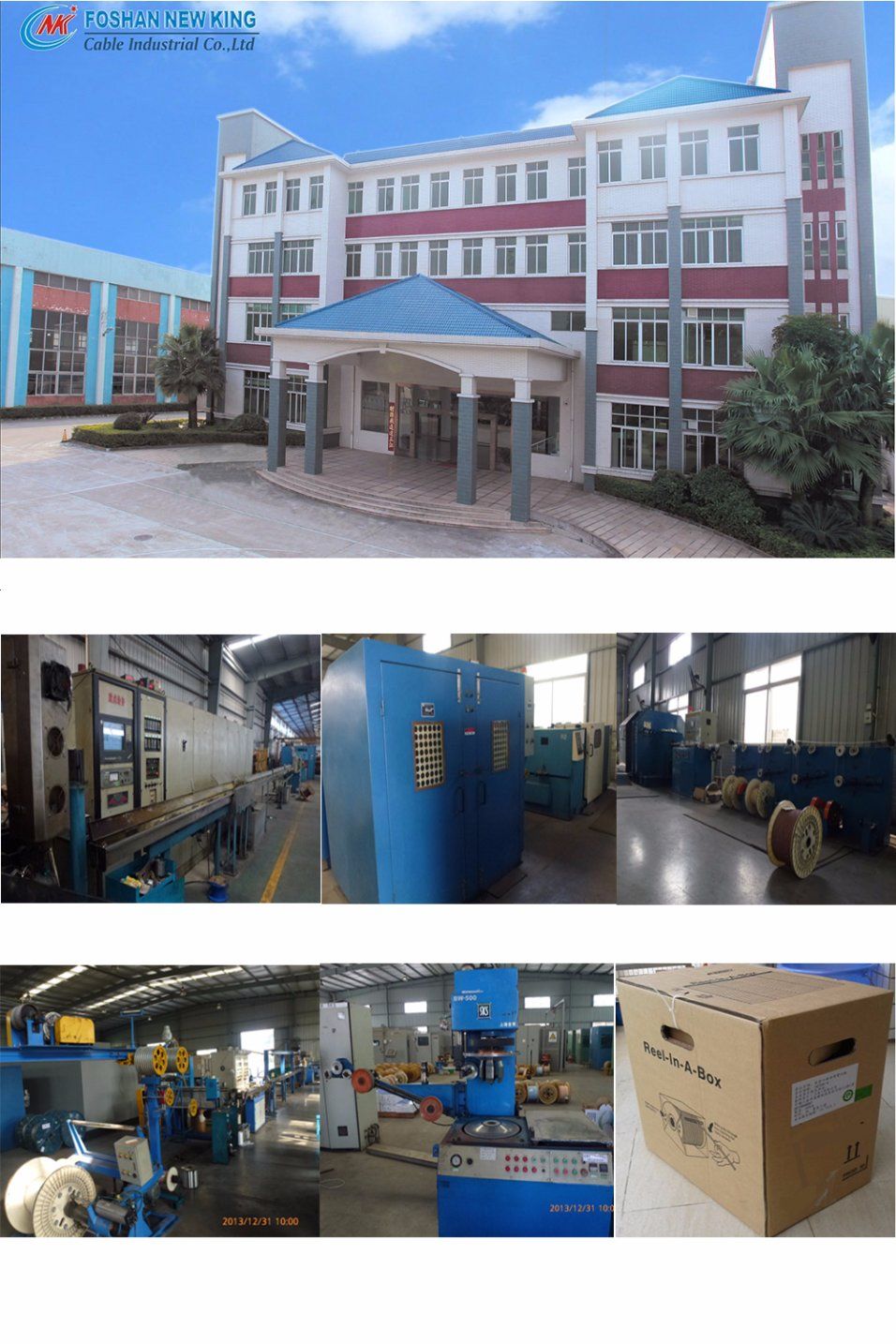

Foshan New King Cable Industrial Co., Ltd was established as a brother company of Foshan Kexun Cable Industrial Co., Ltd, who was founded in 1996, becoming one of the most popular coaxial and network cable manufacturers in China.
Using our upgraded equipment and our brand new facility, we have increased our standards, and have doubled our production speed. The capacity of productions of 2 factories reached to 130 thousand meters per day, 5 hundred million meters per year.
As an experienced manufacturer and selling enterprise, our customers are located worldwide who have known us for always offering premium products, and for our team of professionals who help make this happen.
Our products are based on customers' satisfaction. We have been certified by RoHS, CE and CPR. Our main production line: RG6, RG11, RG 58/59 and LAN cable etc.
We believed quality is our core tenet; Offering 100% qualified product is our unshakable obligation and responsibility. Kexun and New King will provide a professional service, A+ quality, and competitive prices to all precious customers, becoming one of the most trustworthy suppliers in our fields.
