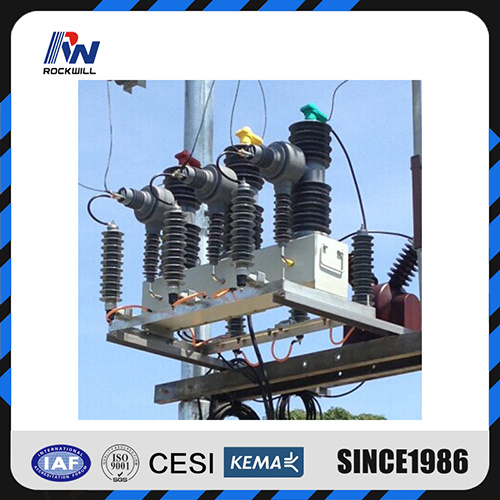

RCW-27~38kV Series Reclosers is a new generation of multi-function. This product employs advanced technology throughout the whole design. It integrates the functions of control, protection, measurements, communication, fault detection, on-line monitoring of closing or opening. It can carry out Substation Automation and distribution automation. This product can be used as the switches in 20kV up to 35kV line and 20kV up to 35kV outline of distribution. It can be also used as the switches in poll, It is suitable choice to realize distribution automation and miniaturization Substation.
Technical Features:
Uses imported outdoor Compound silicon rubber for insulated material. The device has light weight, long life and is able to endure hash outdoor climate. It has no oil or gas, environmentally friendly.
Advanced DSP is used in this system. The device integrates the functions of control, protection, measurement and communication.
The device uses the integrated sensor technology and can be monitored and measured on-line.
The circuit-breakers can be closed or open in-phase. This can restrain over -voltage and surge current in operation effectively. This feature has special advantages with capacitors.
Rich Communication methods. The recloser can communicate through GPRS modem and support English or Chinese short messages.New generation 33kV Outdoor Vacuum Recloser,Light, compact, high breaking capacity, and high quality.
No. | Item | unit | Data |
1 | Rated voltage | kV | 40.5 |
2 | Power frequency | Wet | 95 |
Dry | 110 |
Lightning impulse withstand voltage(peak value) | 185/200 |
3 | Rated current | A | 1250A/1600A |
4 | Rated short circuit breaking current | kA | 25/31.5 |
5 | Rated capacitor bank breaking current | A | 600/800 |
6 | Rated Full Fault Breaking Duty | Number | 30 |
7 | Rated making current | kA | 63/80 |
8 | Rated short circuit peak withstand current |
9 | Rated short circuit withstand current | 25/31.5 |
10 | Rated short time duration time | S | 4 |
11 | Complete breaking time | ms | ≤100 |
Opening time | Highest operate voltage | 15~50 |
Rated operate voltage | 15~50 |
Lowest operate voltage | 30~60 |
Closing time | 25~50 |
12 | Contact closing bounce time | ms | ≤3 |
Out of simultaneity of contact switching | ms | ≤2 |
Contact overtravel on Opening | mm | ≤2 |
13 | Mechanical life | 20000(Normal) | 100000(Magnetic actuator)* |
14 | Electrical life(Rated onload switching) | 10000(Normal) | 20000(Frequent) |
15 | Rated operate sequence | O-0.3-CO-180S-CO for RVB-40.5N |
16 | Weight | ≤250kg |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE ROCKWELL:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-577-27869969
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
Wenzhou Rockwell Transformer Co., Ltd. is a high-tech enterprise invested by Rockwill Transmission and distribution Group Co., Ltd. Our company is specialized in developing, manufacturing and marketing Single phase & three phase automatic step voltage regulator, Auto-transformers, power transformers, preventive auto transformer, CT and PT combinated Metering unit, and compact transformer and pad moubted substations.
Our company enjoys a worldwide reputation for our superior quality and service. In addition to the domestic market, our products are exported to America, Australia, Central Europe, Eastern Europe, Southeast Asia, the Middle East, Africa and other regions and countries.
Besides a great variety of products, we also provide you with professional technical solutions and services. If you have any problem, please feel free to contact us and our technicians will find a complete solution for you.
We always embrace the idea of developing together with customers and always try our best to provide users with safer, easier, greener and more energy-saving high and medium voltage electric equipment and components.
Note:
Rockwell's sister company Rockwill is offering manufacturing for MV and LV switchgears, ring main units, vacuum(gas) circuit breakers, reclosers, load break switches and Low voltage metering unit, Current transformer, Voltage transformer.
