VDE Approved Schuko Plug Inserts

Name: VDE Approved Schuko Plug Inserts
Brand: all-electronics-online.com
SKU: 667825265
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Two-pin plug insert, with double earth conductor system. Meet RoHS.
With a plastic insertion guide at the earth contact.
VDE approved plug inserts.

Description:
Two-pin plug insert, 4.8mm pins, with double earth conductor system.VDE approved.
Technical Description:
10 / 16 A, 250 V.
Pin spacing: 19 +/- 0.2 mm
Length of pins: 19 +/- 0.5 mm
Metal material: H62 brass
Plastic material: PBT (environmental protection granule)

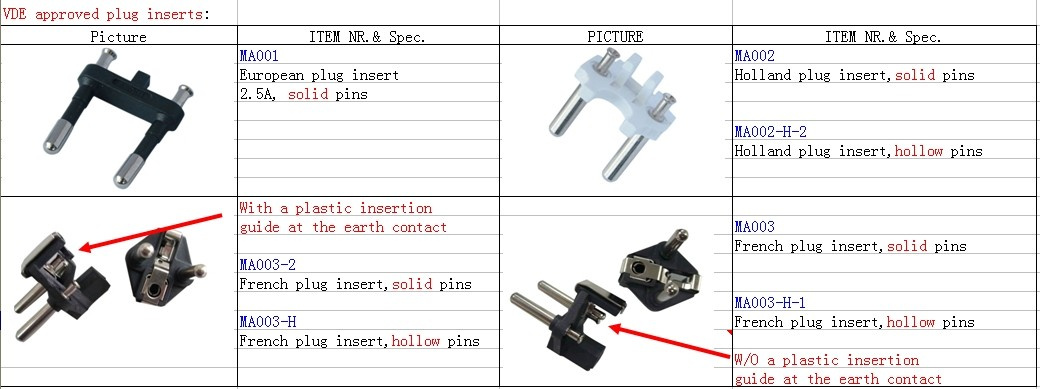

we have got VDE certification for the following plug inserts :
MA001:   European plug insert,solid pins.
MA002:    Holland plug insert,solid pins
MA002-H-2: Holland plug insert,hollow pins
MA003:   French plug insert,solid pins ,W/O a plastic insertion guide at the earth contact .
MA003-H-1: French plug insert,hollow pins ,W/O a plastic insertion guide at the earth contact .

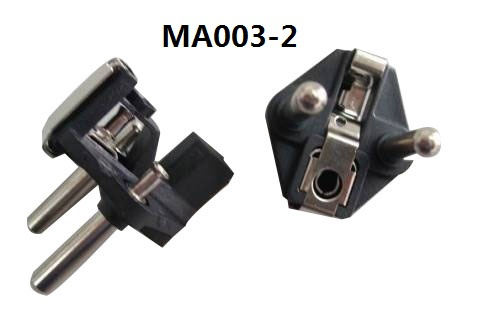

MA003-2:   French plug insert,solid pins ,with a plastic insertion guide at the earth contact .
MA003-H:   French plug insert,hollow pins,with a plastic insertion guide at the earth contact .

Prod Model:	MA003-2
Markets:	Southeast Asia,Africa,Mid East,Eastern Asia
Standard:	Germany Standard
Function:	AC Plug
Certification:	VDE

As a special manufacturer and exporter of Power cord, Plug inserts, Full automatic crimping machines, Teflon Granule, ect. In China, our products export to worldwide for home and industrial use.

Our power cords have international approvals such as: VDE, UL, SAA, BSI, CSA, GS, ISO, PSE, IMQ, IRAM, Fi, CEBEC, SEV etc, and strictly compliant with RoHS directive.

Our plug inserts have male and female type, with solid brass pins or hollow brass pins type, Some of Plug inserts is VDE approved.

Our Full automatic Crimping Machines can save 3-4 labors compared with orginal operating mode, reducing labor and improving output and it is with CE certification.

For any inquiry or question. Contact us directly and you can get prompt response.
