MODEL: E-425 (25FT)
Oxygen-Free Copper (OFC) conductors for increased current flow
Black PVC jacket for durability and low visibility on stage
Intended for use in North America and with NEMA 5-15 receptacles
Conductor(s): 14 AWG x 3 OFC
Connector(s): NEMA 5-15R to NEMA 5-15P
Length: 25 ft

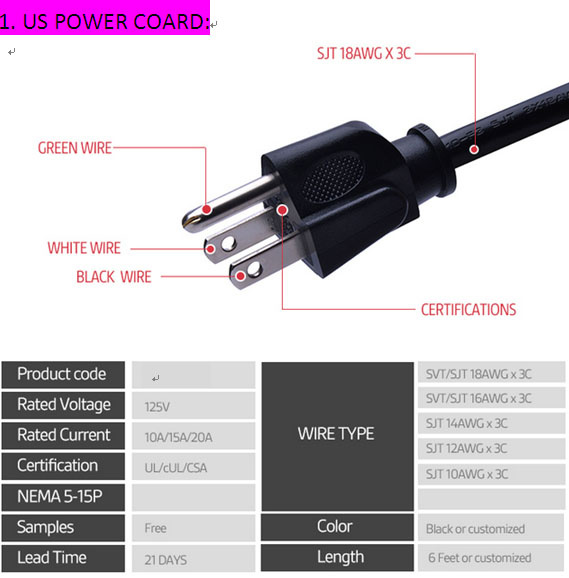

UL cUL approval NEMA 5-15P NEMA 5-15R power cord
Product Description
Professional Power Cords Parametric Test:
| Item | UL CSA approval NEMA 5-15P NEMA 5-15R power cord |
| Applications | Suitable for general household electrical appliances
and office equipment |
Environmental
requirements | Working temperatures: 0~40°C, 20-90%RH |
| Storage temperatures: -20~80°C, 20-90%RH |
| Constructions | Wire Type:
SPT-1,SPT-1W,SPT-2,SPT-2W,SPT-3
SJT,SJT0,SJTW,SJTOO,SJTOW,SJTOOW,SJTSHD
ST,STW,STO, STOO, STOW, STOOW,
SVT,SVTO,SVTSHD / SJEO,SJEOW / SEO,SEOW
SRDT/HPN/NISPT-1,NISPT-2, |
Contact Pin: Brass with Ni or Tin plating
Jacket: PVC |
| Conductors: 20/18/17/16/14/12/10/8/6 AWG(2C/3C) |
| Jacket | Flame-retardant PVC |
| Plug | IEC 320 C13/C14/ IEC 320 C7/ IEC 320 C5
NEMA 1-15P/R NEMA 5-15P/R NEMA 5-15P/R
NEMA 5-20P/R NEMA 5-30 NEMA 6-15P NEMA 6-20P/R
NEMA 6-50P/R NEMA 10-30P NEMA 10-50P NEMA 14-30P
NEMA 14-50P/R NEMA L5-20P/R |
| Insulation | Color coded PVC or SR-PVC |

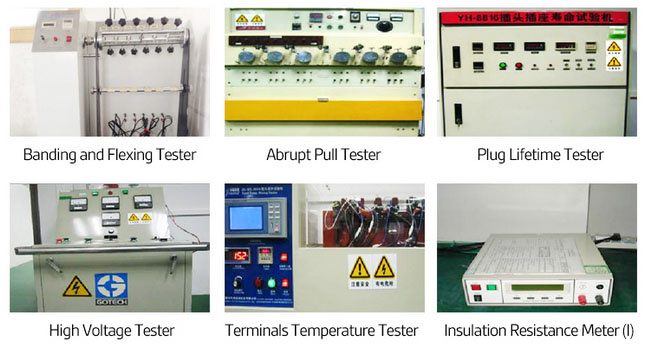

| Tests | UL VW-1 & CSA FTI vertical flame test
Aging Test (Elogation and Strength test)
DVW Test: 1500VAC, 1S
Polarization and Contiunity Test
Connector Rated Power Test
Meet UL62,UL817,CSAC22 and IEC60320 |
| Features | 10A - 125V/250V.15A - 125V/250V.15A - 125V/250V.30A - 125V/250V.
50A - 125V/250V |
Electrical Performance Standard:
| Voltage/frequency: | 250V/50Hz |
| Plug rating: | 2.5/10/16A 125V/250V |
| Conductor Type: | Annealed soft bare copper wire |
| Number of conductors: | 3 |
| Conductor size: | 0.75mm2, 1mm2, 1.5mm2
|
| Conductor construction: | 24/0.2 |
| Cord jacket diameter: | 6.35±0.2 |
| Temperature rating: | 60ºC- 300 ºC |
| RoHS compliance | Yes |
CERTIFICATES:
UL Online Certifications Directory
database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
SPECIFICATIONS:
Packaging Details:
PE/polybag/box/customized, 15kg/carton, accept packing service
Stronger Packaging to protect products well
Delivery Details:
1. Double confirm your delivery address
2. Express courier: DHL, UPS, FEDEX, TNT- 3-5 Days
Air cargo: 5-10 Days, Sea cargo: 15-30 Days
Drop shipping service available
3. Delivery days--
Sample produce time: 5-7 days, Transit time: 3-5 days by fast express
Full production produce time: 35-40 days, Transit time: 25-40 days by sea
Our Services
Strictly QC Process:
1. All of our products have strictly test before shipment
2. Support imprint your logo on products
3. OEM/ODM orders are warmly welcome
4. All products if not artificial damage, one year warranty
Payment Term:
1. We accept T/T payment methods.
2. For sample order, we request 100% payment before shipping.
3. For Trail/Full order, we request 50% deposit, and 50% should be paid within 1-3days before delivery
Company Information
We is one of the most reliable and responsible OEM service providers in China. Our company is located in ingbo. We have more than 400 skillful employees to make products with high quality with 50000 square meters of standard workshop and offices. Our target market segments include Europe, Australia, the US, Canada, Brazil and other areas.
Our company specializes in producing wires and cables, HDMI cables, USB cables, network cables, audio/video cables, AC power cords, wire harnesses, and AC/DC power adapters. Besides, we offer the most efficient and effective assembly services. We have the capacity to consistently meet and exceed your requirements.
With our low-cost manufacturing and high-quality products, we are able to assist you to save costs and make the cost-down budget to improve your profit margin. We keep updating and improving our products to meet your needs and demands.
Why Choose US?
1. OEM&ODM
2. Medium-sized enterprises, more cost-efficient and less administration fee
3. After-sales service 24/7
4. Offer customized service & production packing service
6. Standard compliance:
Certification UL, CUL,ETL CEBEC, VDE, NF, ASTA, IMQ, OVE, KC, N, CE, GS, PSE, SAA, FI, DEMKO, SEMKO, IRAM, SII,M UC, KEMA, CCC, SO9001 approved 2007 years, ISO14000 approved 2012 year.
Free Contact Way
Any inquiry, please feel free to contact us
Here online looking forward to receiving your inquiry 24/7 sincerely, greeting.
Welcome to Ningbo Haishu Byron Audio Co., Ltd., who is located in east of China, Ningbo City. Since 2001 year, we have been continuing our manufacturing cables, connectors, stands and microphones as well as offering quality OEM & ODM products, which suit for medium to high performance professional applications and are very good choice for those who require performance quality and value.
Byron Audio is committed to offering high quality products at competitive prices backed with unparallel service from our experienced and caring staff. You can feel free to contact Byron Audio Company. We look forward to getting to know you.
