Product Description
The Over-all Structure
Frontage consist of Indicating lamp ( red, blue )
Launcher
Receiver
The back consist of Distance Induction
Regular
Wiring socket
The Overall Features of No Touch Exit Switch / Hand Sensor Switch for Automatic Doors
▪The product can be used as an exit switch which mainly receive signal to open the door.
▪Adopt infrared modulation-demolation, interference signal will not be caused.
▪With the non-contact induction design, door can be open in an easy and clean way.
▪Transmit distance is adjustable from to 15cm, can be set according to actual occations.
▪Low-power design, a longer service life.
▪With indicator light to ensure effective operation
▪High sensitivity, timely and accurate induction
▪Adopt high-sensitivity infrared tube, quick response for door opening.
▪Installation with hidden screw hole, the appearance with the sense of science.
▪With dry contact signal output, easy to link with various gated equipment.
▪No touch hand sensor switch, avoid contamination and keep hygiene and healthy
▪Relay contact output, convenient to connect with different access equipments. Sensing distance 1-15cm adjustable.
▪Typical hidden emergency button, in case of induction failure, can press the emergency button to open auto door
▪Instruction with light indicator
▪Front hidden screw fixation
▪Power supply: AC / DC 12-36V
Assembly Sets of Fittings
The main sensor ( one )
5P socket cable ( one )
Retention screw ( one bag )
Operating instructions ( one )

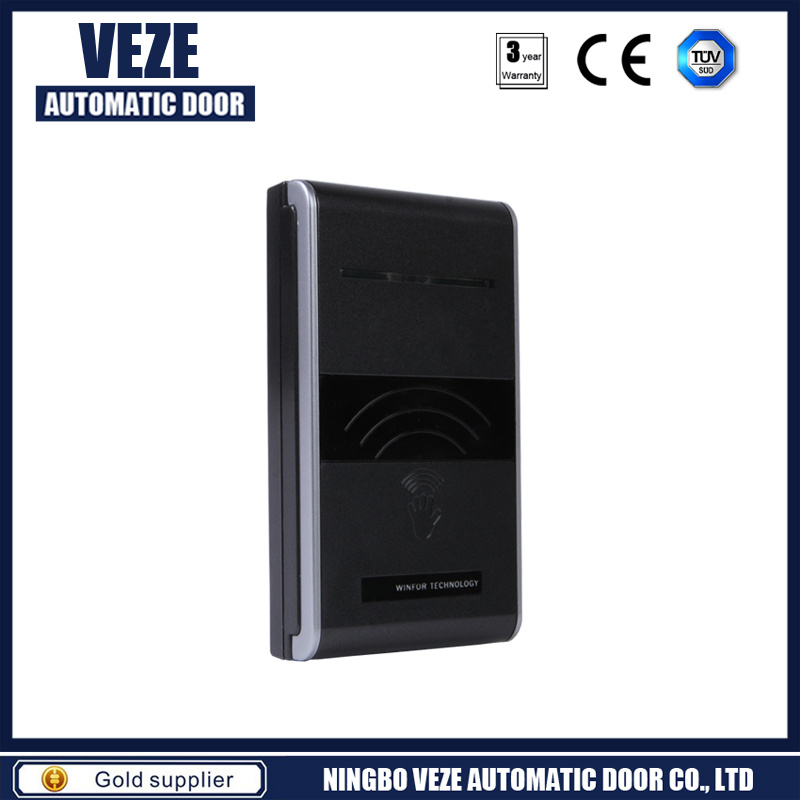

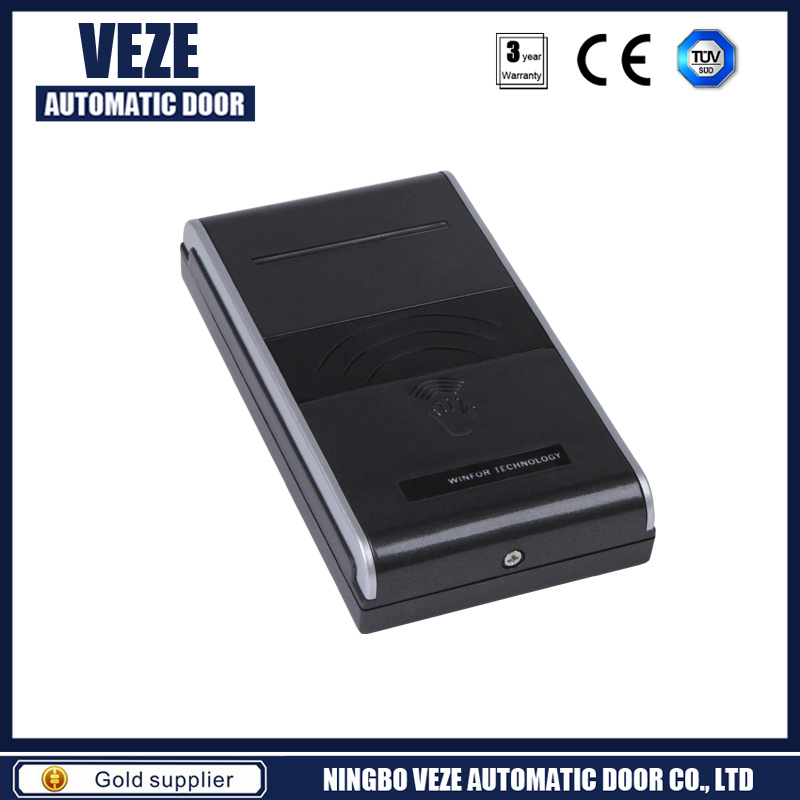

The Picture of No Touch Exit Switch / Hand Sensor Switch for Automatic Doors
Accessory List & Optional Parts
The Main Technical Parameters
Supply power: AC / DC 12V-36V
Static parameter: 62mA
Action current: 115mA
Transmit distance: 1-15cm adjustable
Operation frequency: 38KHZ
Working environment humidity: 10-90%RH
Dimension: 113(L)*63(W)*20(H)mm
Fixed way: The hidden screw fixed
Other Automatic Doors Accessories
1. Operation
The automatic door operator is to be fully electronic operator, housed in a fully anodised aluminum transom section.
2.Controller
The intelliget controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.
3.UPS
The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.
4.Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.
5.Tracking
The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.
6.Locking
Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.
Ningbo VEZE Automatic Door Co., Ltd. Was established in September 2005 and is a professional enterprise specialized in researching, designing, manufacturing and selling automatic door systems, automatic sliding doors, automatic swing doors, hospital hermetic doors, automatic curved doors, automatic telescopic doors, automatic revolving doors and high quality automatic door accessories: Brushless DC motors, infrared sensors, controllers, access control system, etc.
Safety Certification
Our products have certificates of CE, UL, RoHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check that all electronic devices are working well, each motor will go through severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with high-class quality and competitive price.
Sales & Services
VEZE Automatic doors Co., Ltd takes Quality, Efficiency and Service as our motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new parts for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
OEM&ODM Service
We have a professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
Competitive Advantages:
1. We are professional manufacturer in automatic door field.
2. We have the certificates of CE, UL, RoHS, TUV, CCC, ISO9001.
3. We provide 24 months warranty.
4. We use wooden carton packing to ensure security in transit.
5. We could control our products quality by our quality control dept.
6. We have a large storage to ensure supplying in time.
