Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.

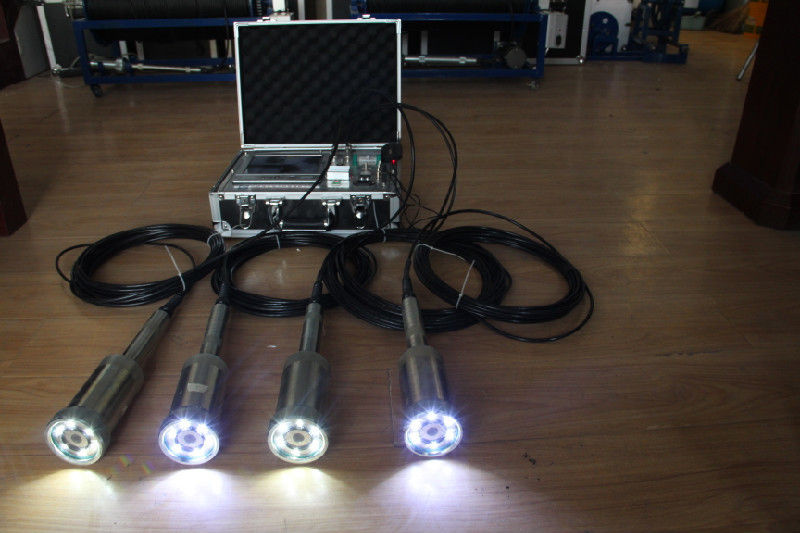

Video Downhole Camera Borehole Inspection Camera for Straightness Correction
1. Bore TV imaging system
1). Device Capabilities
Images can be video camera acquisition, processing, editing, display, storage and transmission, to the histogram, and floor plan. Other parameter sensor system configuration, you can also obtain downhole depth, inclination, magnetic field, temperature and other parameters.
2). Working conditions
(A) adaptation of clear water holes; (2) Maximum operating temperature 70ºC.
3). Technical Requirements:
(A) measuring depth: 1500m; viewing angle :0-360
(2) counting precision depth: 5cm
(3) Inclination: 0 ° to ± 45 °
(4) magnetic field: up to 80,000 nT
(5) Temperature: -10 ° to 70 ° C
(6) adapted Aperture: 75mm OD
(7) Battery working time> 8h
4). Technical support and services
(1) We send technicians to the end user site for free installation and operation of technical training;
(2) equipment warranty period of 1 year or more, a lifetime to provide maintenance and technical support services.
(5) Applications (previous device with pictures)
(6) Delivery period: a half to two months
2. Mine peep hole instrument
1). Device Capabilities
The device is intrinsically safe mine, comes with high brightness adjustable light source, large color screen display, has good dustproof and waterproof performance. Equipment, small size, light weight, ease of use, performance and stability. Supporting software capable of image and video data files management, borehole data to add notes and comments to add text, images made for drilling photographs and audio video playback, and has a mine map search, drilling retrieval capabilities.
2). Working conditions
(A) adapt to water, dust and vibration work environment; (2) Operating temperature -10~50ºC.
3). Technical Specifications
(1) peep hole diameter: <Φ75mm
(2) peep hole depth: ≥ 1000m
(3) Probe Resolution: 420 lines
(4) Continuous working time:> 6h
(4) Storage Capacity: ≥ 20GB
(5) Software main features: mine map search, drilling retrieval, pictures, video data file management, data management borehole text, images and audio video playback, add a note.
3. Services
A. Responsible for assisting the equipment installation and commissioning, the user needs to provide the appropriate equipment installed, the interface; (demand larger case)
B. To provide customers with professional training and consulting;
C. Devices to provide users with one-year warranty (except artificial damage), life-long maintenance of equipment.
D. For the user to provide free lifetime underwater imaging, photography, professional technical support.
E. Equipment failure, the use of the equipment back to the company headquarters courier service, warranty period, maintenance costs borne
