Vs1/R-12 Indoor Hv Vacuum Circuit Breaker with Lateral Operating Mechanism

Name: Vs1/R-12 Indoor Hv Vacuum Circuit Breaker with Lateral Operating Mechanism
Brand: all-electronics-online.com
SKU: 647189615
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	US $ 1200-1500/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

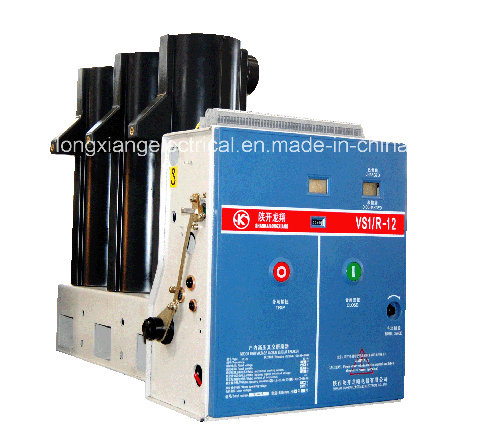

VS1/R-12
Series of Indoor High Voltage Vacuum Circuit Breaker With
Lateral Operating Mechanism

General Description
VS1/R-12 series of Indoor High Votage Vacuum Circuit Breaker With Lateral Operating Mechanism used spring to storage energy.The operating mechanism can be operated by two ways:by manual and electromotive operation.The characteristics is accordance with GB1984-2003 High voltage AC circuit breaker,JB3855-1998 3.6-4.5KV Indoor AC High voltage circuit breaker and IEC standard 62271-100:2001High voltage AC circuit breaker.
Applying ambient conditions
1.Ambient temperature:-15ºC~+40ºC.
2.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
3.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa;the average pressure of a month should be no more than 1.8kPa.
4.The height above sea level:1000m
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth,chemical erosion and violent vibration.

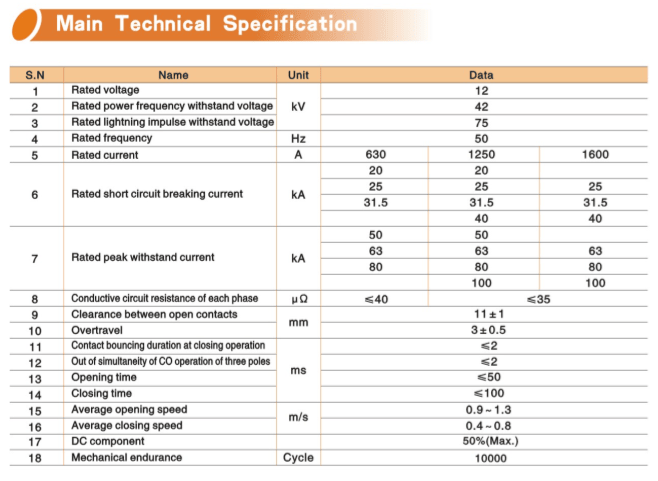

Model	VS1/R-12 Series
Standards	IEC62271-100/GB1984-2003
Operation ways	by Manual and Electromotive operations

Prod Model:	VS1/R-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12kv

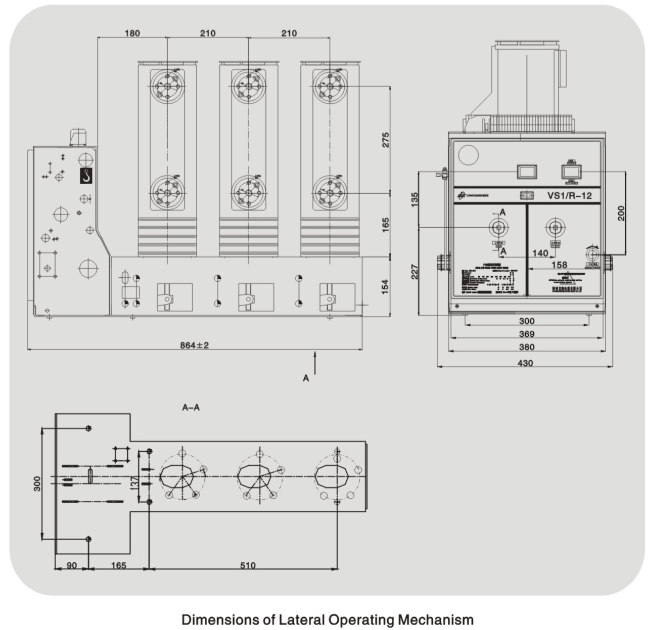

Mechanism:	Lateral Operating Mechanism
Pole Number:	3 Poles
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Company Introduction

General

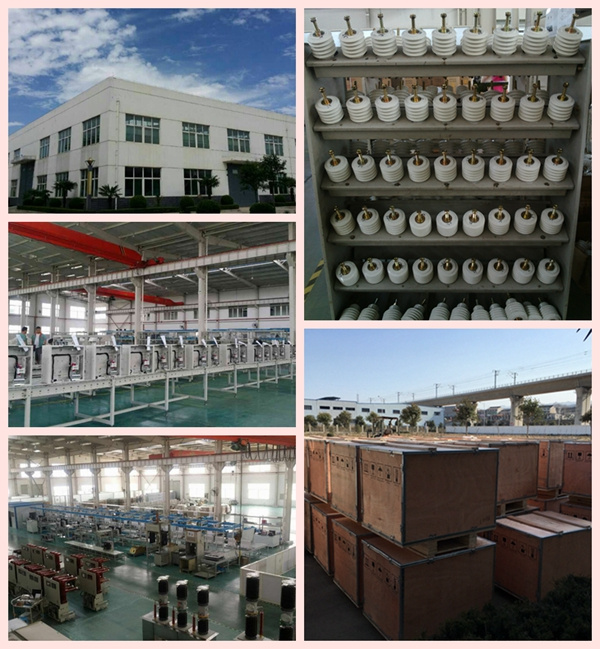

Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.
