| Prod Model: |
HL-03w |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Industrail Water Chiller |
| Water Chiller Cooling Capacity: |
8.8-120.4kw |
| Water Chiller Usage: |
for Refrigerate |
| Water Chiller Noise Level: |
Untral Low |
| Water Chiller Condition: |
New |
| Water Chiller Power Input: |
2.1-31.2kw |
| Usage: |
Refrigerator |
| Certification: |
CE |
| Control Type: |
Digital |
| Type: |
Rotary |
| Display Type: |
LED |
| Material: |
Stainless Steel |
| Brand: |
Huali |
Product Description

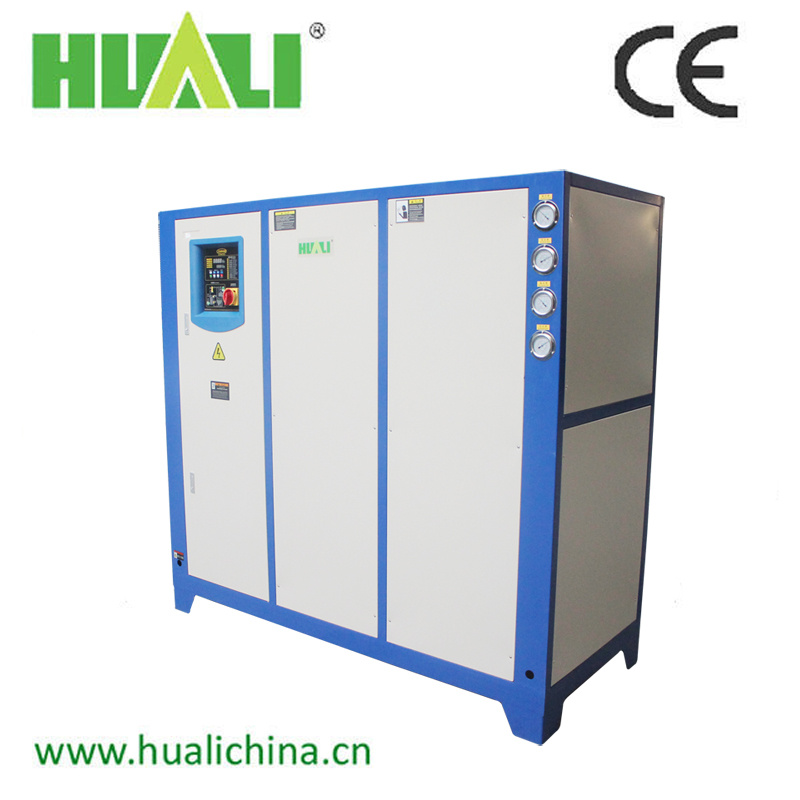

Water Cooled Industrial Box Type Water Chiller
Water chiller features:
Adopts high-quality compressor and Taiwan pump, very safe and noiseless, economical in power and durable
Temperature control range: 5 to 35 degree, more or less ± 1 degree.
Designs of chiller and radiator are unique, the heat exchange efficiency is very high
Chiller is designed to be with current overload protector, high and low voltage construction and electric time-delay safeguard, when malfunction happened, it could alarm and show the cause of the problem in time
Can customize base on the requirement of acid resistant and acidity-resistant (optional)
Standard model: Equipped with water pump and water tank
Refrigerant is R22, R410A, R407C, and R134A are also available
Power and frequency supply: 380V, 3pH, 50Hz
Can customized 400V, 3pH, 50Hz/380V, 3pH, 50Hz/400V, 3pH, 60Hz
Rated cooling capacity base:
Ambient temperatures: 35 degree.
Water in/outlet: 30/35 degree.
Inlet/outlet temperatures: 12/7 degree.
Chilled water range: 5 to 20 degree.
Cooling water range: 20 to 40 degree.
Parameter of water cooled chiller
| Water-cooled Industrial Chillers (Cooling Only) |
Bitmap Bitmap
Model | HL- | 03W | 05W | 08W | 10W | 15W | 20W | 25W | 30W | 40W | 45W |
| 5/40 degree cooling capacity | KW | 8.8 | 15.4 | 24.4 | 30.8 | 40.1 | 61.6 | 70 | 92.4 | 108 | 120.4 |
| BTU | 30034 | 52560 | 83277 | 105120 | 136861 | 210241 | 238910 | 315361 | 368604 | 410925 |
| Power input | KW | 2.1 | 3.4 | 5.6 | 7.2 | 11.25 | 13 | 14.8 | 19.5 | 22.2 | 31.2 |
| Noise level | dB(A) | 62 | 64 | 65 | 67 | 67 | 71 | 72 | 73 | 75 | 75 |
| Power supply | 3N AC380V 50Hz |
| Compressor | Type | Scroll |
| Power | KW | 2.1 | 3.4 | 6.2 | 8.3 | 10.4 | 16.6 | 12.5×2 | 20.8 | 28 | 31.2 |
| Refrigerant | The material name | R22 |
| Throttling method | External Epualizer Expansion valve |
| Charge | kg | 2 | 3.5 | 5.5 | 7 | 9 | 14 | 17.5 | 19 | 24 | 26.3 |
| Water flow | 10 degree flow rate of chilled water | m 3 /h | 1.6 | 2.8 | 4.5 | 5.8 | 7 | 11.6 | 12.4 | 16.2 | 18.4 | 20.7 |
| ID of water inlet pipe | in. | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 2″ | 2″ | 2″ | 2-1/2″ | 3″ | 3″ |
| condensing water rate | m 3 /h | 2.1 | 3.6 | 5.58 | 7.2 | 8.7 | 14.4 | 15.9 | 20.8 | 23.7 | 26.1 |
| ID of water in&out pipe | in. | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 2″ | 2″ | 2″ | 2-1/2″ | 3″ | 3″ |
| Pump | Type | pump | The user supplies for oneself |
| Motor power | HP | 0.5 | 0.5 | 1 | 1 |
| Dimension | Width | mm | 833 | 833 | 1400 | 1400 | 1400 | 2050 | 2050 | 2050 | 2400 | 2400 |
| Depth | mm | 500 | 500 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Hight | mm | 960 | 960 | 1050 | 1050 | 1050 | 1100 | 1100 | 1100 | 1500 | 1500 |
| Water tank capacity | L | 80 | 80 | 180 | 180 | 180 | 270 | 270 | 270 | 350 | 400 |
| Weight | kg | 130 | 170 | 350 | 400 | 450 | 650 | 650 | 850 | 1050 | 1100 |
