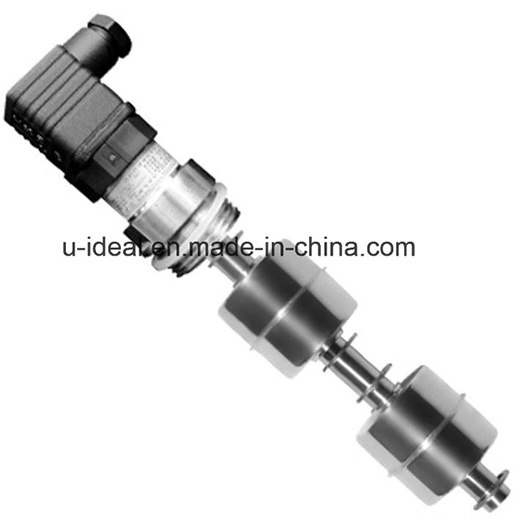

Water Level Control Type Float Ball Liquid Level Switch
| Price: |
US $ 70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
XGF-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Type: |
Flange Connection, Union and Thread(Screw)Connect |
| Switch: |
Multi-Node |
| Explosion-Proof: |
Yes |
| Switch Signal: |
No, Nc, Spdt |
| Float Number: |
1 Floater, 2 Floater, 3.... |
Product Description
Floating ball liquid level control switchConnecting rod ball float liquid level switch to control the pump operation to maintain the liquid level;Control of automatic loading and unloading;Control the liquid level or supply signals, such as tank, automatic cleaning system, hydraulic tank, low pressure boiler, water treatment system.
Connecting rod ball float liquid level switch is a safe, reliable, easy to use, simple structure of the liquid level controller.A product can achieve multi-point control.Its characteristic is long life, high speed has stronger ability to resist impact load.
Packaging & Delivery
Packaging Details:Delivery Detail:
| inner carton+outter plywooden case for SUS material electrical water level control float switch |
| 7-10 working days for SUS material electrical water level contro |
product description:The working principle of Multi-point Float Level Switch is direct and simple. Set one point or multi-point of magnetic witch in sealed un-magnetic metal or industrial plastic tube.
Fix the float with inner magnetic system in a certain place of magnetic switch in the pipe and let the float drift up and down; utilize the inner magnetic system in the float to trigger the open and close magnetic switch to operate and control the liquid level.
The working principle is simple and proved to apply to liquid measuring under various conditions. Normal open and close is the state with inserting liquid.
advantages:1. CE and CAS and Explosion proof are approved;
2. Vacuum structure applies to any liquid testing operation;
3. Switch does not contact with the liquid directly, no abrasion and laceration;
4. It is easy to install and use.
specification: | Model: | XGF-10 |
| Product Name: | Double Float ball Level Switch |
| Contact Capacity: | AC220V/1A;DC24V/0.5A |
| Working Pressure: | ≤2MPa |
| Float Gravity: | 0.7g/cm3 |
| Output Signal: | SPST NO/NC |
| Working Temperature: | -30~150°C |
| Protection Grade: | IP65 |
| Float Material: | SUS304/SUS316L |
| Housing Material: | SUS304/SUS316L |
| Connection: | DN50 PN1.0 (flange customized ) |
| Wire Length: | customized |
| Application: | water, sewage, oil etc. |
| Installation Method: | vertical installation |
| Explosion-proof: | No |
