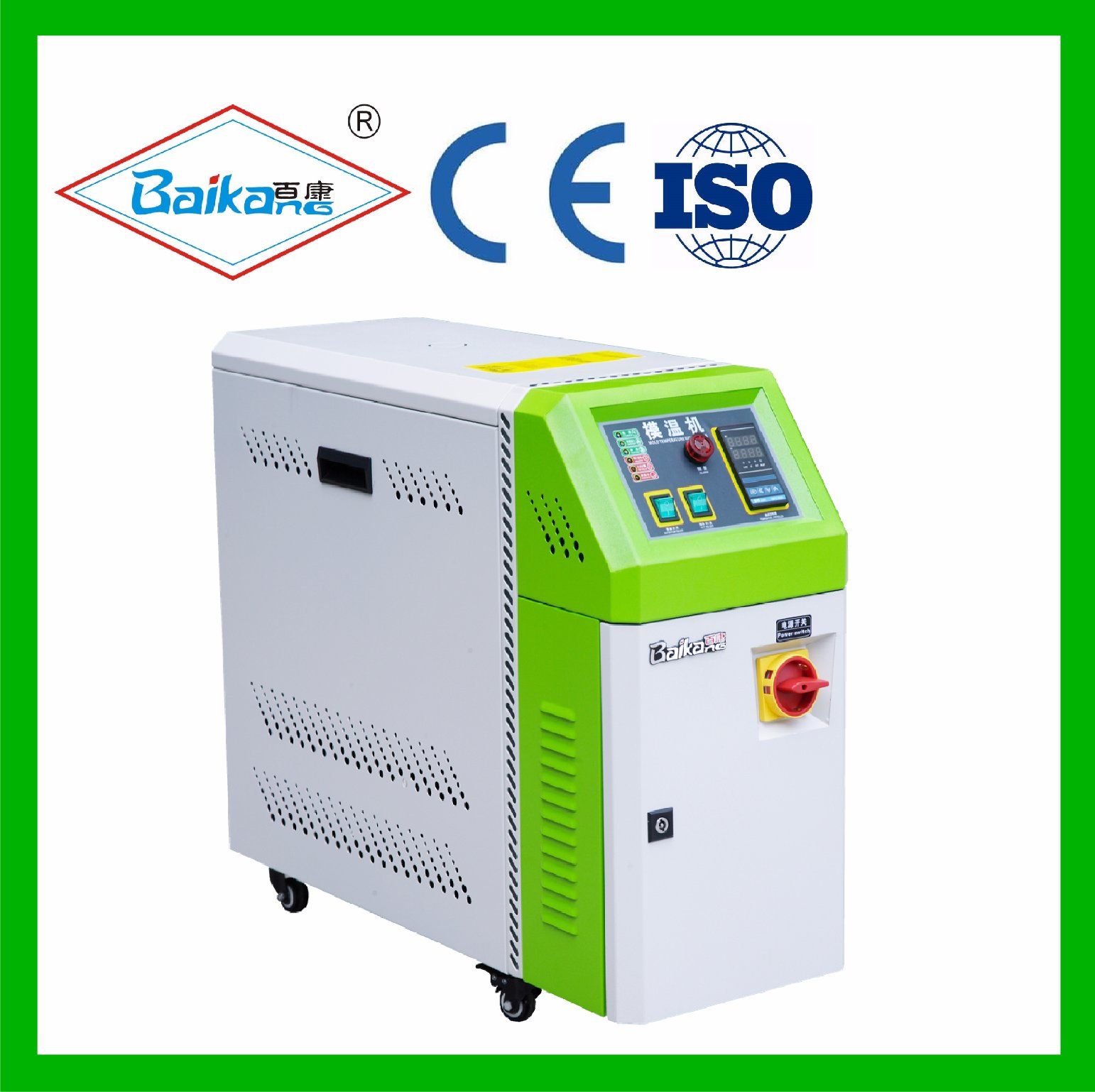

Water Mold Temperature Controller Bk-W18
| Price: |
US $ 855/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| water mold temp controller 98~120ºC Technical data |
| Model | BK-W6 | BK-W9 | BK-W12 | BK-W18 | BK-W24 | BK-W36 | BK-W48 |
| Heat transfer medium | Water |
| Heating capacity | 98~120ºC |
| Power | AC3PH-380V/460V 50HZ/HZ |
| Cooling method | direct cooling |
| Heater Power | kw | 6 | 9 | 12 | 18 | 24 | 36 | 48 |
| Pump | power(HP) | 0.5 | 1 | 1 | 2 | 3 | 5 | 5 |
| pressure (kg/cm) | 2.5 | 3.5 | 4 | 3 | 3 | 4.5 | 4.5 |
| flow (L/min) | 35 | 45 | 45 | 80 | 380 | 380 | 380 |
| Cooling water pipe diameter | 1/2, |
| Heat medium pipe diameter | 2*3/8 | 4*3/8 | 4*3/8 | 6*3/8 | 6*3/8 | 1.2' | 1.2' |
| Safety protection | Water level protection/High temperature protection/ phase and phase sequence protection / motor overload protection/pressure is too high protection |
| Dimension | L(MM) | 1000 | 1000 | 1000 | 1050 | 1050 | 1050 | 1050 |
| W(MM) | 330 | 330 | 330 | 380 | 380 | 480 | 480 |
| H(MM) | 690 | 690 | 690 | 800 | 800 | 900 | 900 |
| weight(KG) | 48 | 54 | 62 | 92 | 106 | 148 | 170 |
The above specifications are subject to change, without notice, special specifications can be designed and manufactured separately.Product feature:Heat transfer medium:Put water be circulating medium, compared with heat conducting oil medium, which had advantages of low cost, high thermal efficiency, clean and environment protection etc.!Main configuration:- Machine units used 3D design, more reasonable layout. Sheet metal chassis made combined with Europeanization, surface color fastness high polyester powder spraying, resistance stronger, the bottom of the chassis assembly of universal wheel, easy to move. .
- The mechanical heating box and the electric control box body used the ventilation isolation design, let the electrical appliance service life be long time.
- The piping system is made up of 304 sanitary stainless steel materials, which are completed by multi - steps, such as CNC bending, welding, pressure testing, polishing, cleaning and so on.
- Special design of heating pipe, the use of nickel chromium alloy heating wire, alloy seamless stainless steel precision manufacturing, never rust, longer life!
- Built in water level alarm, Bai Kang patented technology, replenishment pressure is low, but also can work properly.
- High quality low noise pump (according to customer needs to change the pump power / magnetic pump optional).
- LCD microcomputer multi-function P.I.D intelligent automatic temperature controller, temperature control accuracy of + /-1ºC.
- Import brand contactor, better stability (solid state relay optional).
Safeguard:- There is a failure of automatic sound and light alarm shutdown, automatic start exhaust, over temperature automatic shutdown cooling, power supply phase, reverse phase protection, water shortage protection, water pump overload protection, leakage protection, media overpressure protection, etc.
Application Industry:- injection molding / printing / reactor / rubber / drum rolling / extrusion / material drying and conveying industries temp control.
| Prod Model: |
BK-W18 |
| Weight: |
92 Kg |
