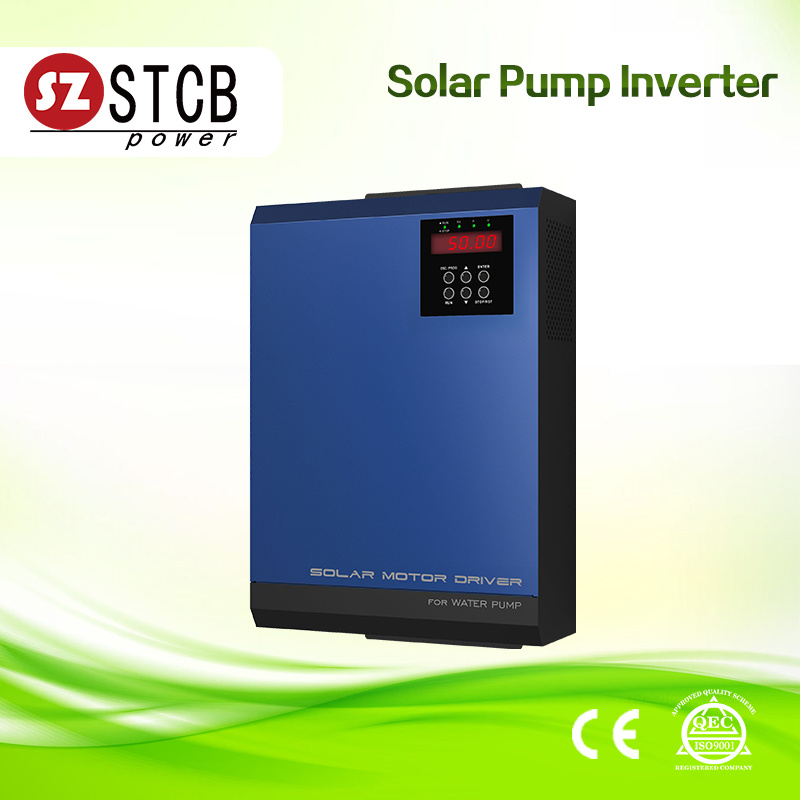

Water Pump Inverter 7.5kw with MPPT Solar Charger for Irrigation
| Price: |
US $ 345-355/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
PW water pump inverter solar |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Power Capacity: |
7500W |
| Max PC Array Power: |
12000W |
| Phase: |
Three Phase |
| AC Input: |
Optional 3*380V AC |
| MPPT Voltage Range: |
500V -600V DC |
| Waveform: |
Pure Sine Wave |
| Efficiency: |
97% |
| Power Source: |
Solar Power and Utility Power |
| Warrent: |
1 Year |
Product Description
Water pump Inverter 7.5kw with MPPT Solar charger for Irrigation
Main Features:
1,Built-in MPPT solar controller;
2,Supports three-phase asynchronous motor;
3,Compatible to utility or generator input;
4,Built-in full protection and self-diagnosis;
5,Soft start function prevents water hammer effect and extends system lifecycle;
6,Comprehensive LEDs and display screen for real-time system status;
7,Remote monitoring through RS-485.

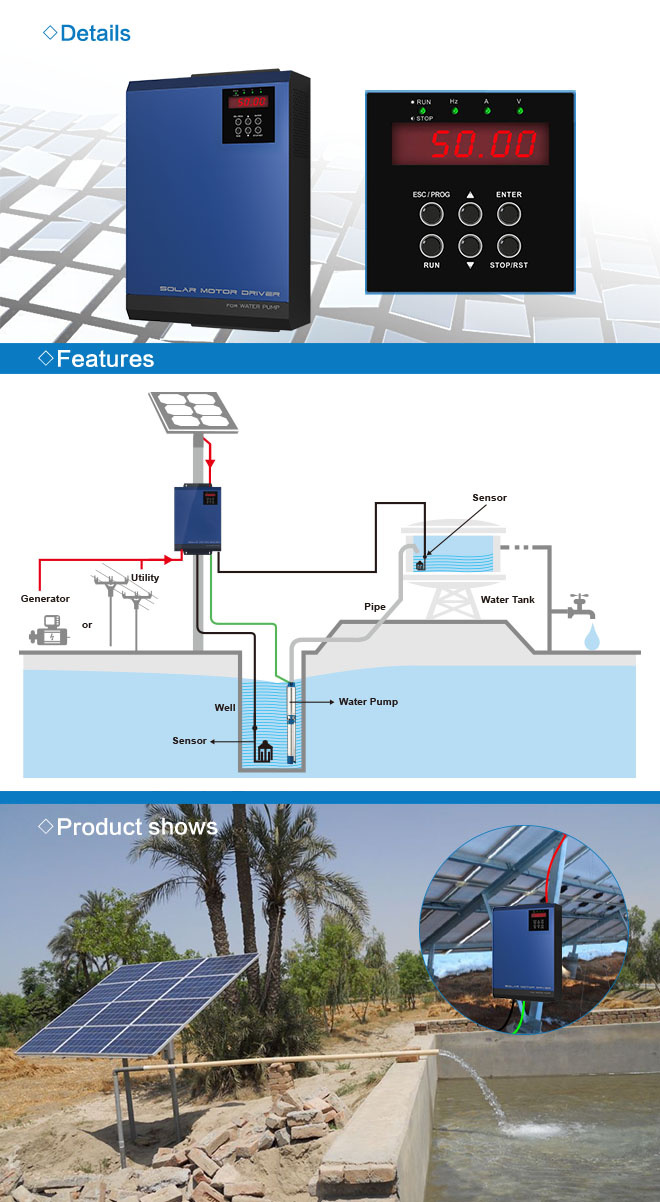

Product description:The 3-phase in, 3-phase out solar pump inverter is environmentally friendly with a long lifetime and lower maintenance costs, built in MPPT to ensure you to get the best output power and optimize the performance of water pump solar Inverter along the day as it starts and stops automatically based on the intensity of solar radiation.
Specification: | Model | PW 2.2KW | PW 7.5KW | PW 11KW |
| PHASE | 3-phase in/ 3-phase out |
| MAXIMUM PV ARRAY POWER | 3500 W | 12000 W | 17600 W |
| RATED OUTPUT POWER | 2200 W | 7500 W | 11000 W |
| PV INPUT (DC) |
| Maximum DC Voltage | 800 VDC |
| Start-up Voltage | 350 VDC |
| MPPT Voltage Range | 500~600 VDC |
| Number of MPP Trackers | 1 |
| Input Current | 4.3 A | 14.5 A | 21.3 A |
| OPTIONAL AC INPUT |
| Input Voltage | 3 x 380VAC/400VAC/415VAC/440VAC |
| Maximum Current | 5.8A | 20.5A | 27.0A |
| Apparent Power | 4000 VA | 11000 VA | 16500 VA |
| OUTPUT |
| Nominal Voltage | 3 x 380/400/415/440 VAC |
| Efficiency | > 97% |
| Output Current | 5.1 A | 17 A | 26 A |
| Motor Type | Three-phase asynchronous motor |
| Frequency Precision | ±0.2% |
| PROTECTION |
| Full Protection | Over-voltage, under-voltage, over-current, surge, over-temperature, short circuit protection |
| PHYSICAL |
| Dimension, D x W x H (mm) | 110 x 230 x 330 |
| Net Weight (kgs) | 5.5 | 6 | 6.5 |
| Type of Mechanical Protection | IP20 |
| INTERFACE |
| Communication Port | RS-232/RS-485 |
| ENVIRONMENT |
| Humidity | < 95% RH(Non-condensing) |
| Operating Temperature | -20°C ~ 45°C at 100% full load, 46°C ~ 60°C power derating |
| Product specifications are subject to change without further notice. |

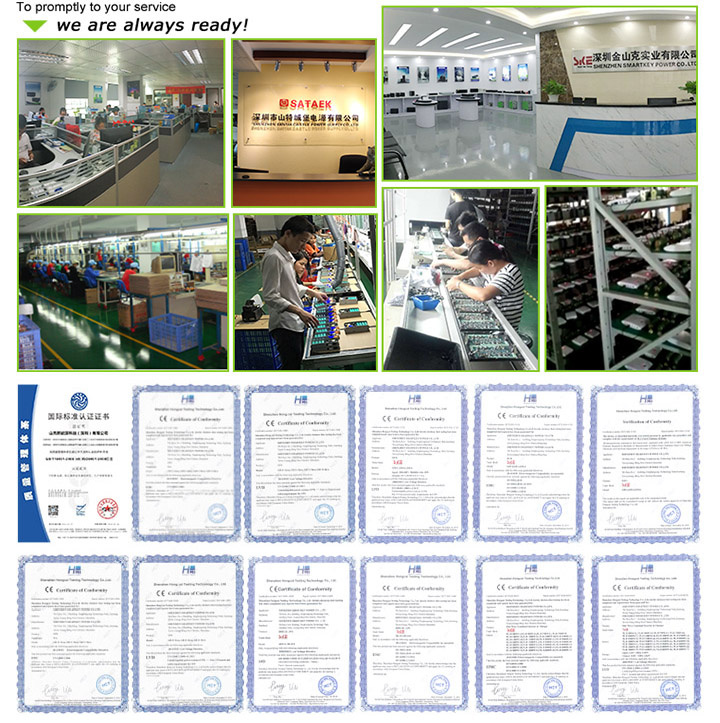

Company and Factory:
Project and Tradeshow:
Our services:
1. We can be customized according to customer needs and find a good sample logistics, please provide the exact address, company name, phone us.
2. 1% pcb board is provided
3. if by container , you can let us know your own shipping agent or use our cooperated agent
4. 1year warrenty , if it is our quality problem , we will provide the parts for free .
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
SHENZHEN SMARTKEY POWER Co., Ltd / SHENZHEN SANTAK CASTLE POWER SUPPLY Co., Ltd. is a professional engaged in an uninterruptible power supply (UPS), small uninterruptible power supply, solar inverter, solar home system, valve control maintenance free lead-acid battery, voltage regulator design, products such as the production, sales and service company 16 years ago, and has a good reputation in the local market. Professional R & D team and professional export team. The United States and Germany, battery, UPS power supply technology and reserves of high quality and efficiency to adapt to market research and management team and the development of industry demand, universities and scientific research institutions established extensive and close relations of cooperation, research and development to ensure the sustainable development of enterprises and high-tech products.
DC UPS is a backup protection power for network communication equipment. It can be widely applied to various low-power DC devices, such as routers, modems, IP cameras, closed-circuit television monitoring and POE switches, so as to ensure network communication in the case of blackout continuity, and also to charge mobile phones and tablet computers.
UPS has 16 years of experience in UPS production and sales, and has many rich experience in UPS pre-sale service after many years of operation and development in many parts of China and Europe, such as North and South America, South Asia, Middle East, Africa and many other fields. 16 years of industry struggle to build our technical team, at any time to provide customers with high quality power solutions and solutions.
The use of clean energy, such as inverting solar energy, is the trend of future energy development, and plays an important role in energy conservation and environmental protection. We have entered the solar home industry to produce high frequency and high frequency solar inverters to meet the needs of customers in different regions.
The annual sales volume in 2016 is about $4 million 500 thousand.
Shenk is still developing, is still in progress, not only is the company with the boss, and we have been in the staff. Along the way, people have experienced a lot of Shenk, forward, also has the growing stagnation; Family, also have a family of regret to leave; Have to climb the joy, also occasionally fall pain.
In this bumpy road, is the achievement of our dream journey shenk!
