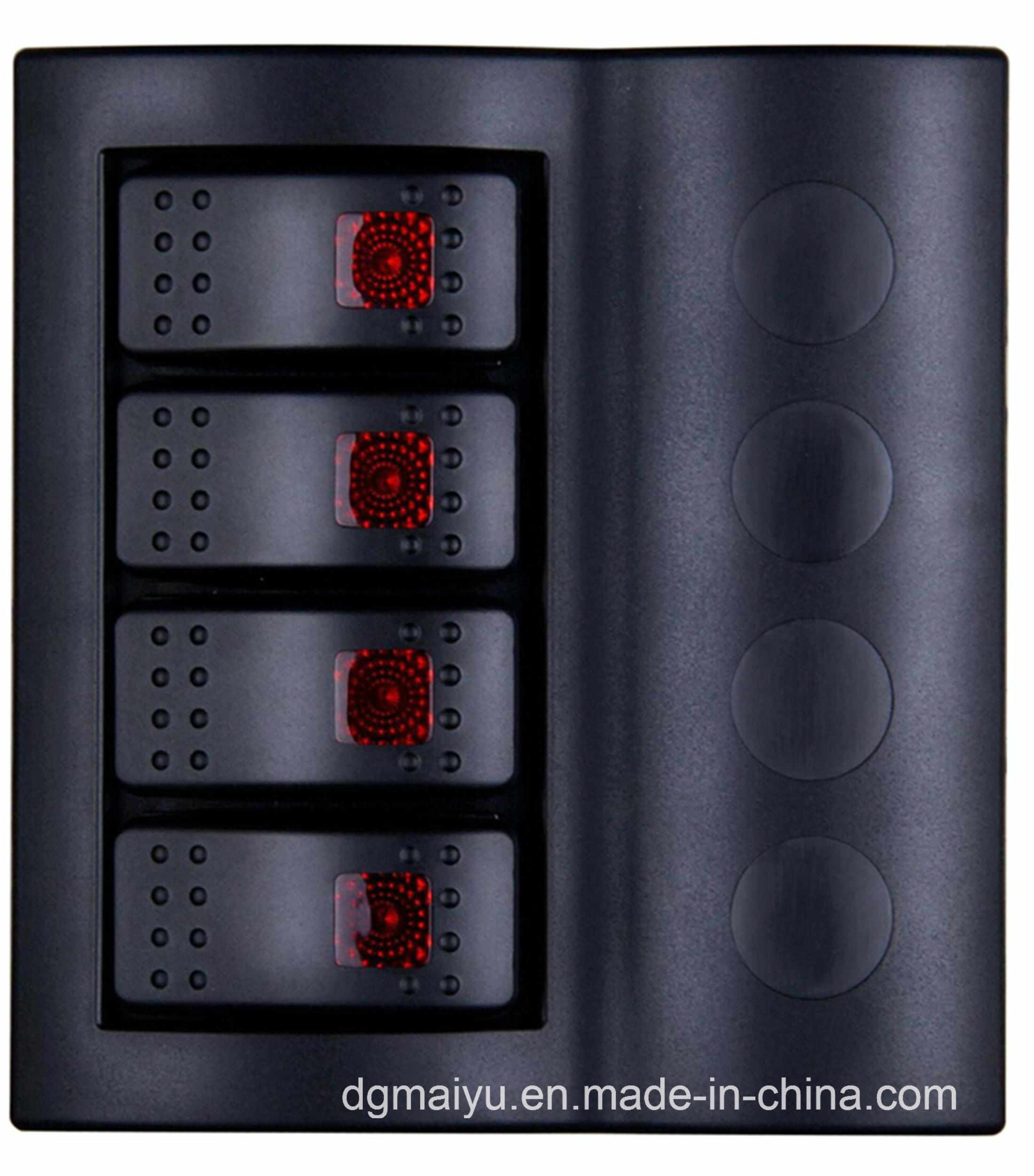

Water Resistant Marine Switch Panel Circuit Breaker with Red LED 4 Gang

Prod Model:	YJ-AP4S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Yj-Ap4s
Rating Current:	12V/24V
Size:	W100xh130xd83mm
Max. Current:	10A/15A
Usage:	Playback Switch
Contact Type:	Type a Contact
Function:	Industry
Structure:	Power Built-in Type
Certification:	CE, ISO9001

Product Description

Product Details
Basic Info.
Model NO.:YJ-AP4S

Type:Composite
Number of Switch:Multi Control Switch

Structure:Power Built-in Type
Usage:Control Button, Start Button, Limit Button, Change-over Switch, Control Switch

Kind:Single-pole on-off Switch
Detection Method:Reflection Type

Certification:SGS, CE
Rating Current:12V\24V

Size:W100xh130xd83mm .
Voltage:AC12V\24V

Color:Blue, Red, Orange,Green,Black,White
Feature:Waterproof Switch

Max. Current:10A\15A
Rating Ampere:20A\10A

Export Markets:Global
Additional Info.
Trademark:MAIYU

Packing:50PCS / Carton
Standard:ROHS, CE, UL, CCC, cUL, VDE

Origin:Guangdong, China
Production Capacity:50000PCS/Week
Product Description

Specifications

12V\24V LED 4 gang Combination Switch panel YJ-AP4S\P
1.12V\20A 24V\10A
2.TUV,CE.SGS
3.ON-OFF-ON



12V\24V LED 4 gang Combination Switch  panel YJ-AP4S\P

Specifications
Action: on-off on   \on-off\off-on\on-on-off\(on)-off-(on)\on-on-on\(on)-off-on
Pole/Throw: Sangle Pole / Single Throw \Double Pole AC 125V\16A
Rating:DC 24 Volts DC 10 Amperes
Lighted : LED rated 100,000 hours 1/2 life
Seals: Internal and external gasket panel seal
Temperature Rating: -40°C to 85°C
Mounting Hole: 1.45"x0.83" (36.83mm x 21.08mm)
LED Amperage: 18 Milliamperes
Pole:3PIN\4PIN\5PIN\6PIN\7PIN\8PIN

Single Pole Single Throw ON - OFF switch
Black hard surface rocker.
Laser etched ROOF LIGHTSLegend
Single upper blue L.E.D light.
Single lower blue L.E.D light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''
