Waterproof Remote control; Wasserdicht Fernbedienung
Waterproof remote control, IP67 grade.
Perfect as application for light, SPA TV, LCD TV, BATHTOOM TV, OUTDOOR TV...

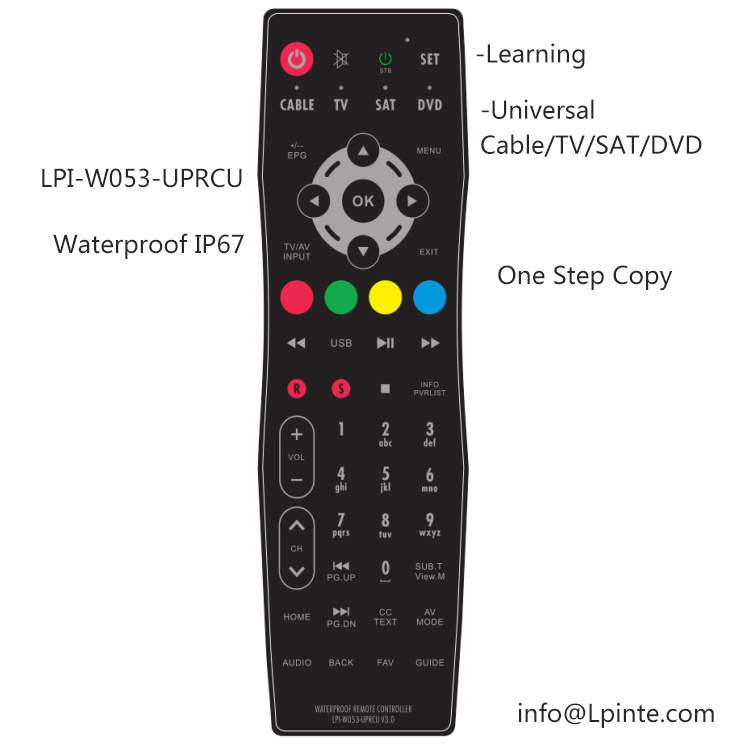

Specification: LPI-W053-UPRCU
Waterproof universal learning remote control
Size: L175 x W52 x H11mm
Battery: CR2032 brand long lifespan
Keys: 53 buttons
Function:
1, Universal: TV/SAT/DVD/CABLE
Sharp,LG,WTV,Kata,Konci,Sony,Direc tv, Dish, Raysgem,Evervue,Vizio,ETV, iHBAN,Guesttek,Amino......
2, Learning, except SET/TV/DVD/CABLE/SAT 5 buttons, others are learnable.
3, Waterproof IP67
Contact us now for your own design to envalue your products.
Small order acceptable
OEM/ODM are welcome.
The LPI-W053-UPRCU V3.0 universal learning splashproof remote control has an IP67 waterproof rating allowing use in wet areas and even floats when dropped in the bath.
The 4 in 1 remote control is designed to allow the user to control up to three different devices by using the TV, SAT and DVD buttons to select which device is to be controlled
It is pre-programmed with over 2000 codes for TV's, Satellite Receivers, DVD players and VCR Recorders.
Auto search or direct entry makes it easy to select the pre-programmed brands.
The remote control also has the facility to directly learn remote control codes from other infrared remote controls.
This allows the remote control to learn up to 48 functions for each chosen device.
The remote control can be used in replace of the Sky™ satellite receiver remote control.
Enabling control of both the Sky™ satellite receiver and others from a single remote control
IR codes from any other IR Remote Control can be copied with the head to head learning function
and assigned to any button except SET/CABLE/TV/SAT/DVD five buttons.

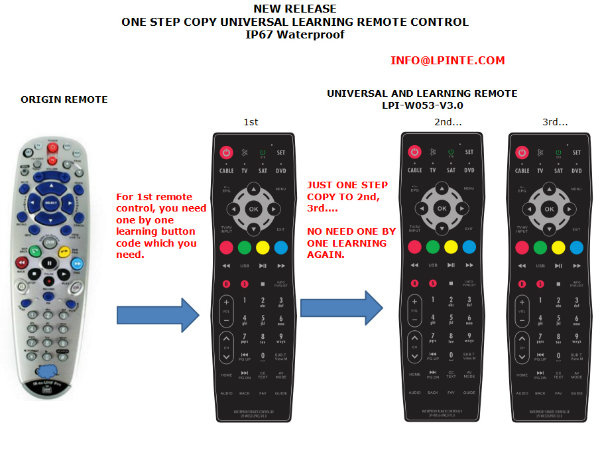

One more smart function is that after you learnt the 1st remote from any ORIGIN remote one button by one button,
you no need learning the 2nd like previous intricacies one button by one buttons.
You only set up one step that help you easy copy full codes from the 1st learnt remote.
1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms
In consumer electronics, a remote control is a component of an electronic device such as a television set, DVD player, or other home appliance, used to operate the device wirelessly from a short distance. Remote control is a convenience feature for the consumer, and can allow operation of devices that are out of convenient reach for direct operation of controls.Commonly, remote controls are Consumer IR devices which send digitally-coded pulses of infrared radiation to control functions such as power, volume, tuning, temperature set point, fan speed, or other features. Remote controls for these devices are usually small wireless handheld objects with an array of buttons for adjusting various settings such as television channel, track number, and volume. For many devices, the remote control contains all the function controls while the controlled device itself has only a handful of essential primary controls.
Earlier remote controls in 1973 used ultrasonic tones. The remote control code, and thus the required remote control device, is usually specific to a product line, but there are universal remotes, which emulate the remote control made for most major brand devices
