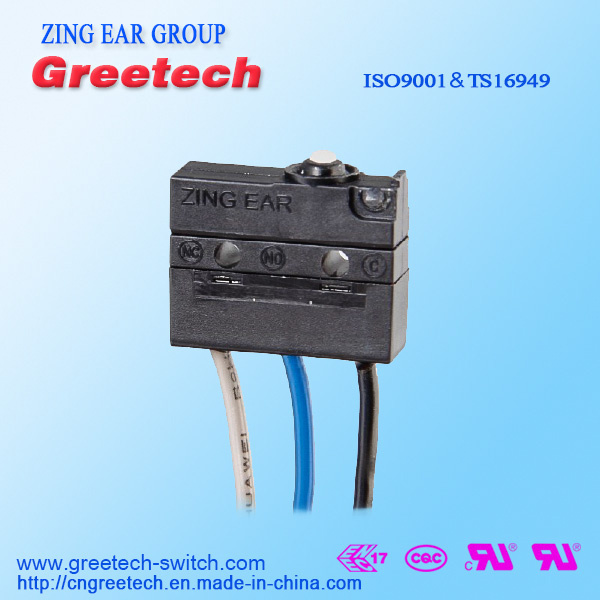

Key Specifications/Special Features:
. Dust and Waterproof(IP67) Design
. Small Compact Size
. Long Life and High Reliability
. Variety of Terminals and Levers
. Widely Used in Auto Control,Appliance and Other Industry Control

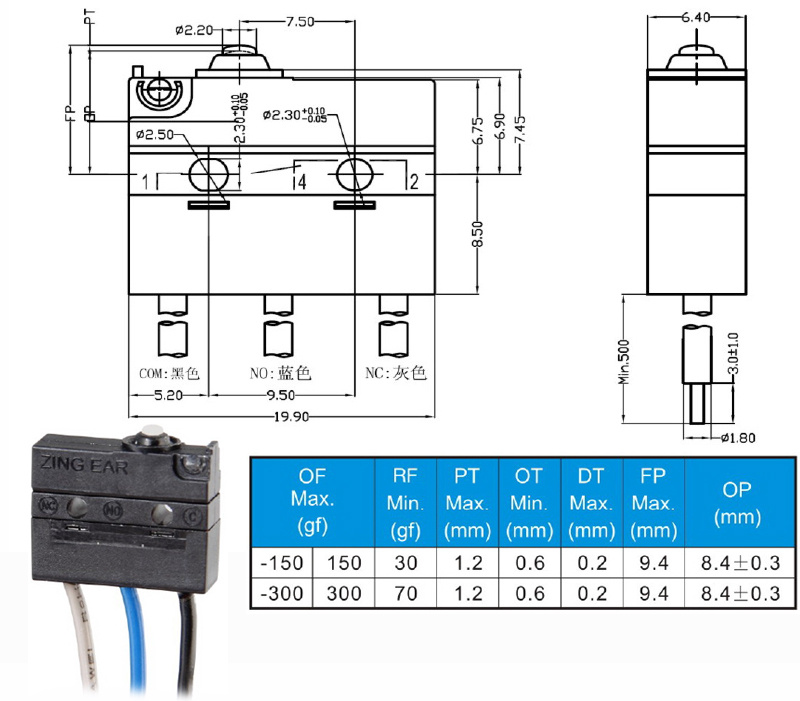

Drawing & Picture & Parameters
Parameters:
| Rating | P1 | ENEC/UL:0.1A 125/250V 48VDC Gold Plated Contact Optional |
| 05 | ENEC:5A 125/250VAC;UL: 5A 1/8HP, 125/250VAC |
| 10 | ENEC:10(1.5)A 125/250VAC;UL:10.1A 1/4HP 125/250VAC |
|
| Operating Frequency | | 10~30 cycles/minute |
| Mechanical | 120 cycles/minute |
| Contact Resistance (Initiative) | 100m ohm Max |
| Insulation Resistance(at 500VDC) | 100MΩ Min. |
| Dielectric Strength | AC 1,000V RMS (50-60Hz) |
| Operating Temperature | -40°C~+125°C or -40°C~+85°C |
| Storage Humidity | 85%RH Max |
| Service Life | Electrical | 10,000~100,000cycles(Depend on part number) |
| Mechanical | 1,000,000cycles |
Application:
. Car
. Phone
. Air-Conditioner
. Computer
. Humidifier
. Alarmer
. Timer
. Mixer&Meat Grinder
. Welding Machine
. Neon Phone
. Fax Machine
. Game Controller
. Pump
. Gas Detector
. Pencil Sharpener
. Money Sorter
. Food Processor
. Electrc Knife
. Toy Car
. Juice Extractor
Greetech Advantages:
. ISO9001 & TS16949 qualified
. Most products are produced & tested by automatics
. Automatic machines are designed and assembled by our own team
. Awarded as National Innovative Technology Company
. Strong R&D team, authorized over 30 patents
. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Packaging & Delivery:
. Pack out: 1000pcs/ctn
. Gross weight: about 2.5/kgs per master carton
. Production lead time: 2-4 weeks against order issue
. Sample lead time: 2-5days

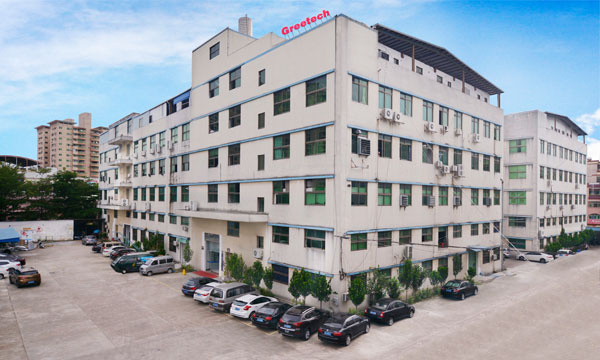

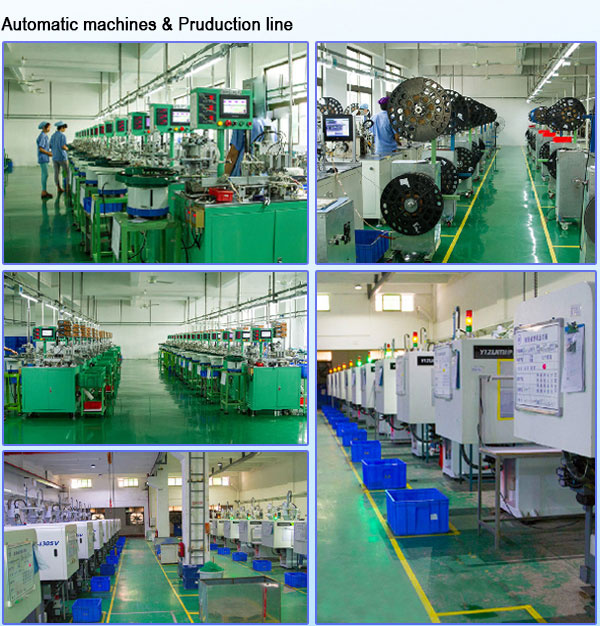

Factory Overview:
Business Partners:
Trade Shows & Customers Visiting:
Packaging Details:
| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
FAQ:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What's the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5, What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
Huizhou Greetech Electronics Co., Ltd. Which focuses on R&D and manufacturing of various micro switches, auto switches, waterproof switches, air pressure switches, mechanical keyboard switches, precise auto parts, mobile phone connectors, and various kinds of contact modules and terminal components. The annual output of switches & connectors is about 160 millions pieces.
GREETECH belongs to Zing Ear Group, and started to run independently since 2007 year. Now we have about 500 staffs working at about 10, 000 factory buildings. Our main engineers have professional R&D experiences in the lines of switches & connectors for 8 to 20 years. All of our products are safety approved by UL, cUL, ENEC & CQC. Our products are certified with ISO9001 and ISO/TS16949 quality assurance system. We have our own team to research and develop automatic assembly & testing equipments. Presently over 80% of our products are produced & tested by automatic equipments, aiming to ensure the consistency of quality.
Nowadays, Greetech set up a complete one-stop R&D and Production System including: Products & process R&D, precise tooling, molding injection, stamping and automation equipment R&D, finish goods assembly & testing.
Dedication, Passion, Integrity, Embracing Change, Team Cooperation, Customer First are our core values.
Serving our customers well, Developing our people for growth, Return on capital and Contribution to Society are always our mission.
Contace us today for more information.
