| Prod Model: |
V-912 -B |
| Operating Frequency: |
865-868MHz; 902-928 MHz (Can Be Customized) |
| Input Impedance: |
50 Ohm Load |
| Gain-dBi: |
12dBi |
| Polarization: |
Linear Polarization or Circular Polarization |
| Bandwidth: |
26MHz |
| Front To Back Ratio: |
≥18dB |
| Vertical 3.0dB Beam Width: |
35° |
| Horizontal3.0dB Beam Width: |
36° |
| Shell Material: |
ABS Plastic |
| Material: |
ABS(RoHS), Flame Retardant |
| VSWR: |
≤1.3 |
Product Description

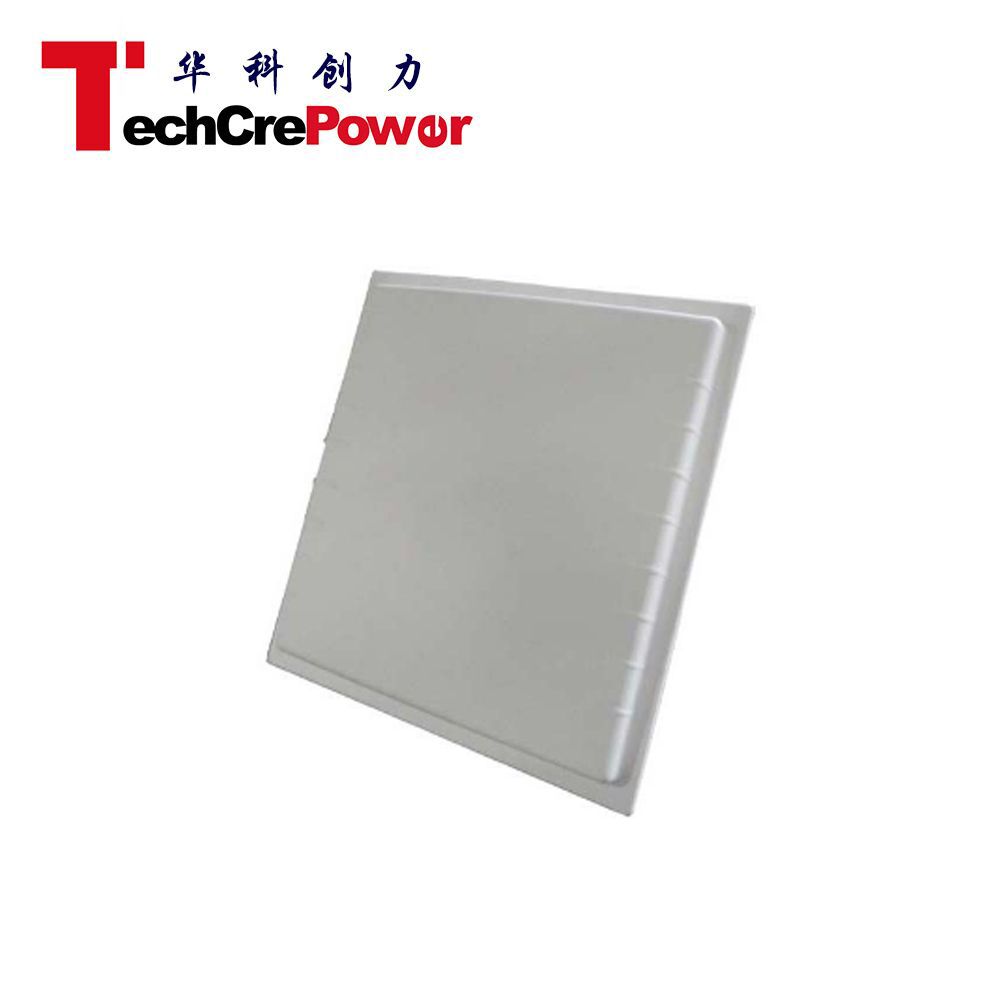

Waterproof Outdoor Long Range UHF RFID 12Dbi AntennaSpecifications: Product Parameter | Parameter Description |
Frequency | 865-868MHz; 902-928 MHz (can be customized) |
Input Impedance | 50 Ohm load |
Gain-dBi | 12dBi |
VSWR | ≤1.3 |
Polarization | Linear polarization or circular polarization |
Bandwidth | 26MHZ |
Front to Back Ratio | ≥18db |
Vertical 3.0dB Beam width | 35° |
Horizontal3.0Db Beam width | 36° |
Shell Material | ABS plastic |
Dimension | 450*450*40mm |
Weight | 1.8kg |

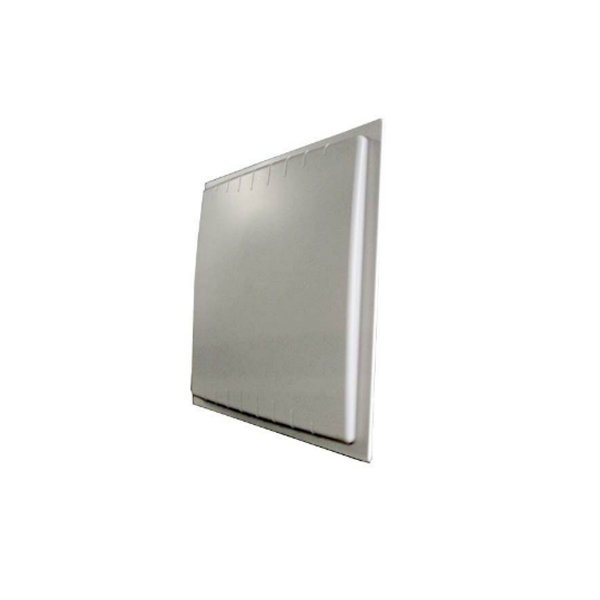

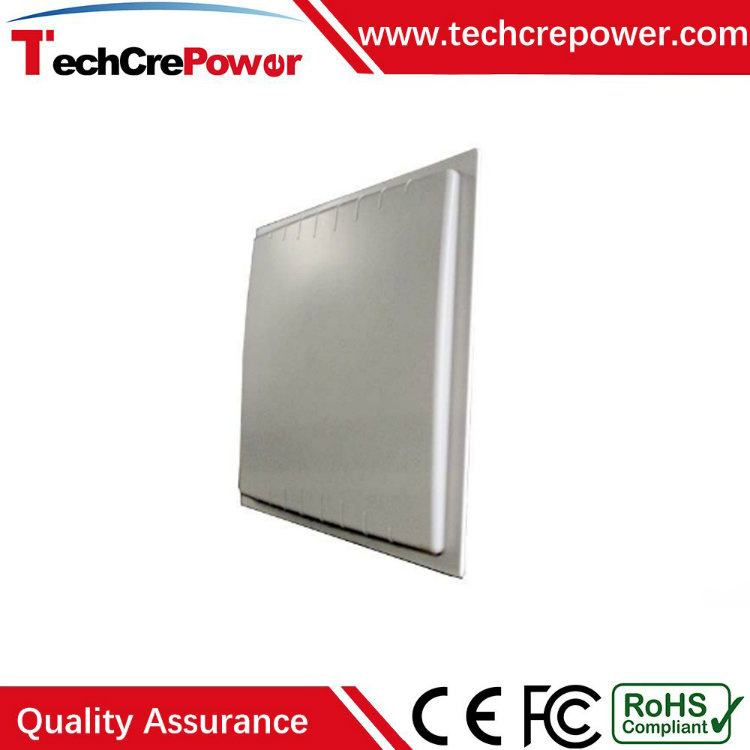

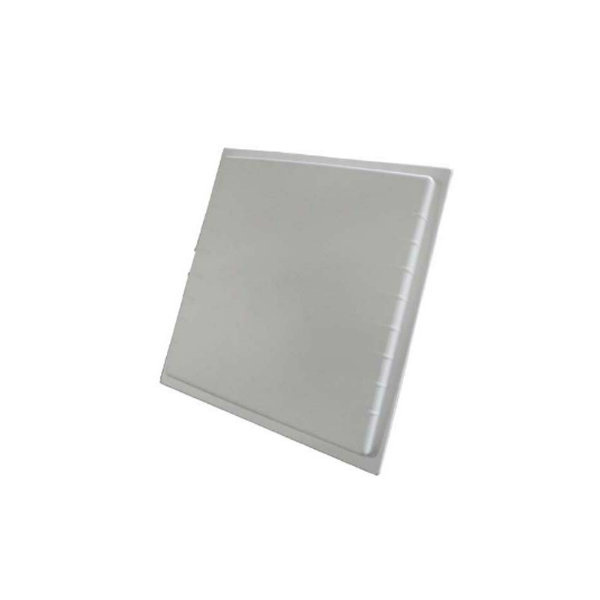

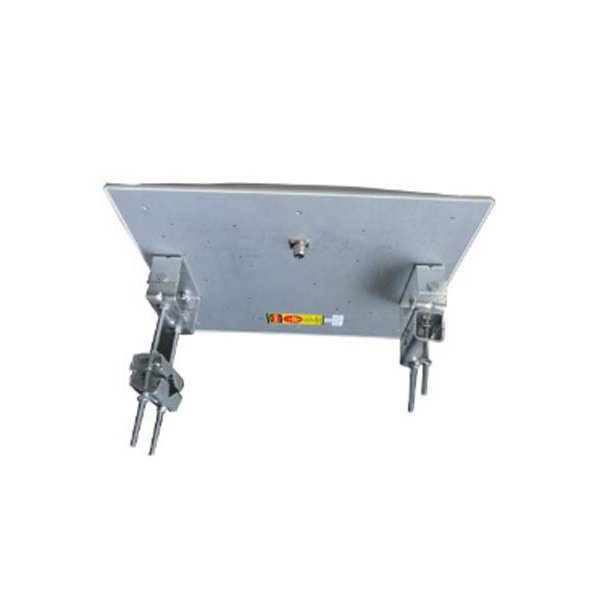

Product picture:
Product Certification:

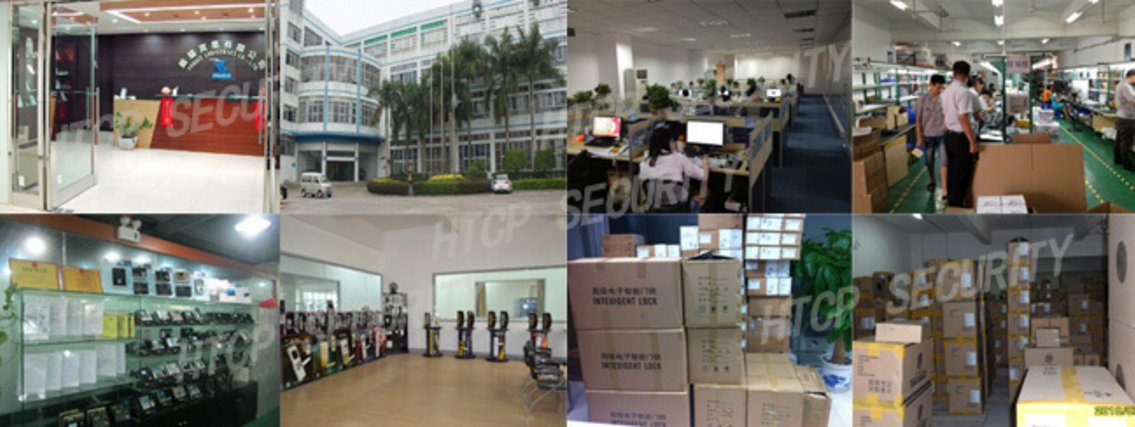

Our Factory:
Our Advantage:1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target:
Provide cost-effective products and timely services with the concept of "one store purchasing", realize win-to-win cooperation!
How to Pay:
By T/T, paypal, westerm union, Moneygram, L/C.
How to Deliver:
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty:
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
