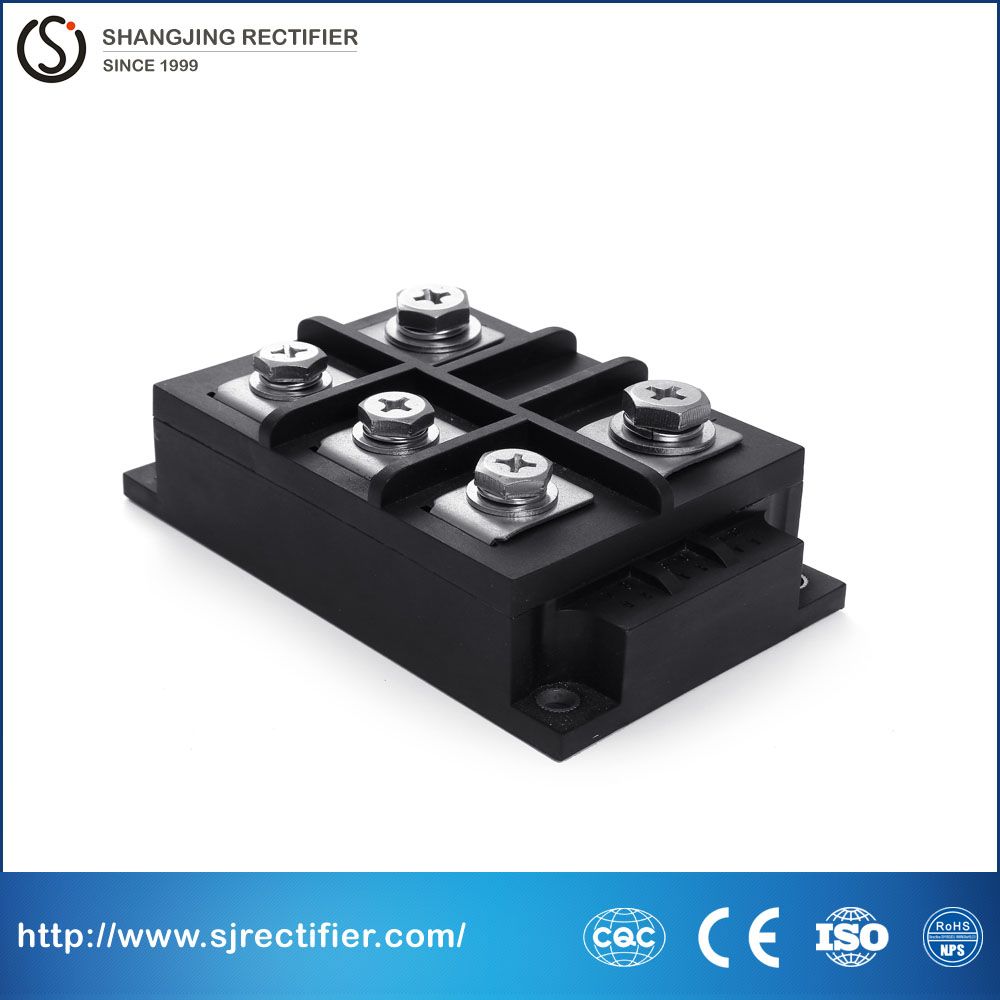

Welder Class Non-Insulation Diode Module

Name: Welder Class Non-Insulation Diode Module
Brand: all-electronics-online.com
SKU: 663872321
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	US $ 2-100/Piece
Trade Terms:	FOB
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MXG(Y)40-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	100-1600V
Irrm:	10mA
If(AV):	40-100A
Vfm:	1.1V
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Standard Export Packing
Application:	Welding Power, DC Power, Frequency Transformer
Model:	Xg(Y)40-100
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
Non-insulated
Baseplate communal electrode
International standard packing
Excellent temperature feature
High IFSM(ITSM)
Low VFM(VTM)

Applications
Welding Power
DC Power
Frequency transformer

Explanation
IGT, VGT, IH are all TA=25° C test data, others are all TA=Tjm test data.
I2t=I2TSM× TW/2: TW=Half sine wave current, when at 50Hz, I2t=0.005I2TSM(A2S)
When at 60Hz, ITSM(8.3ms)=ITSM(10ms)× 1.066, Tj=Tjm I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type	IF(AV)	IFSM	VFM	Viso	VRRM	IRRM	Rjc	AR (Max. centrifugal capacity)	Outline
Type	A	A	V	V	V	mA	° C/W	g	Outline
MXG(Y)40	40	470	1.1	2500	100~1600	10	1.5	2000	M37
MXG(Y)50	50	750	1.1	2500	100~1600	10	1.5	2000	M37
MXG(Y)70	70	1000	1.1	2500	100~1600	10	0.80	2000	M37
MXG(Y)70B	70	1000	1.1	2500	100~1600	10	0.80	2000	M38
MXG(Y)100	100	1820	1.1	2500	100~1600	10	0.80	2000	M38
