Wholesale 48V 100A DC Forward Reverse Contactor For Electric Vehicle ZJ100DProducts Specifications:
ZJ100D is a SPST (Single Pole Single Throw; normally open type) DC contactor of unicoil winding. Designed for direct current loads, particularly for motors on small electric vehicles (light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc.), ZJ100D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
- Main rated load current of contact circuit (amps): 100A
- Dielectric (volt) strength: 50Hz 1000V AC 1min
- Current volt drop of main contact at 100A: Not above 80mV
- Dimensions (LxWxH ): 54x42.5x64 mm
- Mounting: two 4.5mm fixing holes in bracket; pitch-row: 47mm
- Continual working duration: 8h
- Mechanical life: 100,000 times
- Electric life: 2,000,000 times
Specifications:
- Model: ZJ100D
- Voltage Options (Volts): 12V, 24V, 36V, 48V or 72V.
- Ambient temperature:-25~+40ºC
- Altitude range:0~2000m
- Max.relative humidity: 90% at 25ºC
- Installation method:vetically or horizontally
- Voltage fluctuating:0.7~1.1Ue

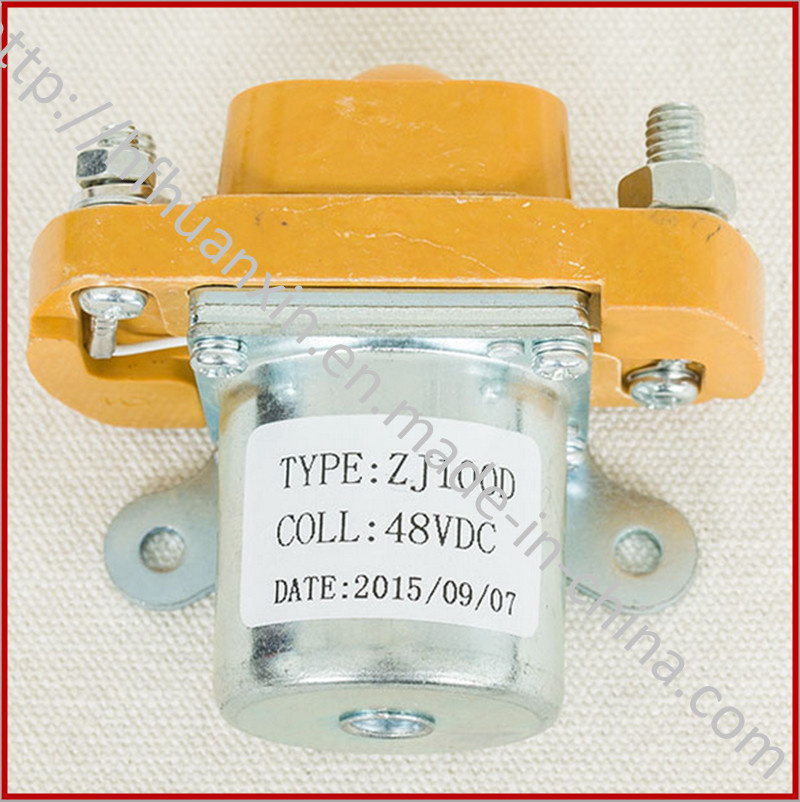

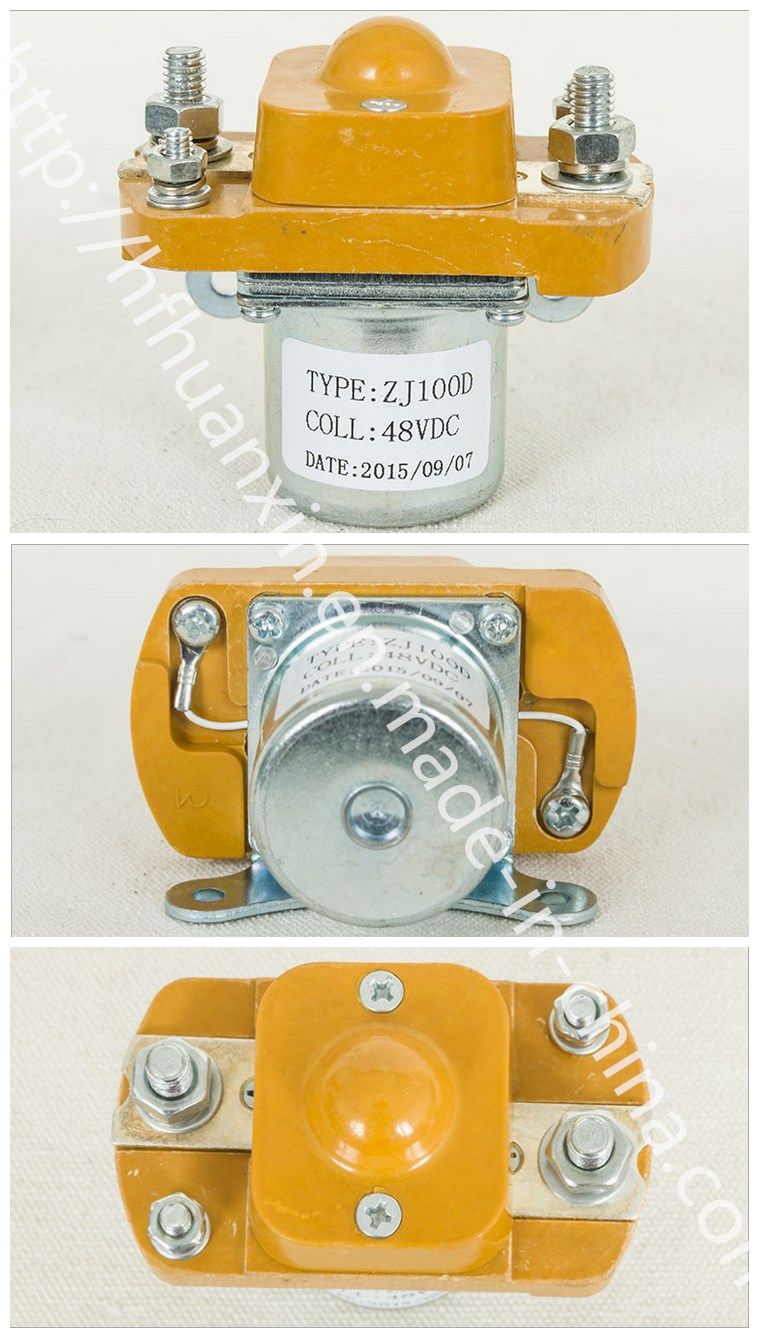

Products Picture:

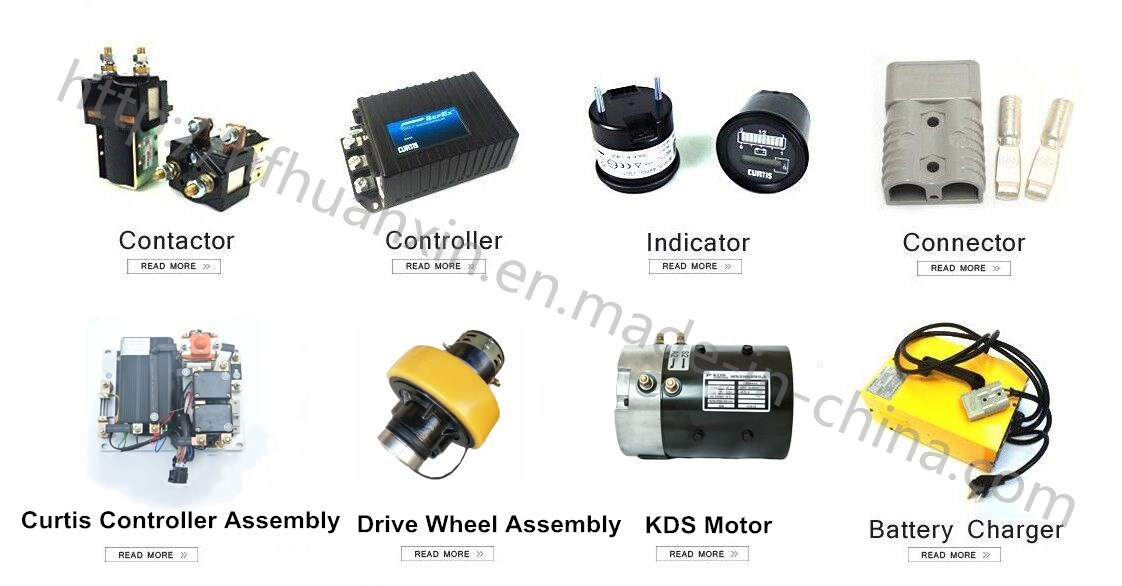

Main Products:
Our Services:
Welcome Sample Order After-Sales Service Reply you inquiry in within 24 hours FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
Contact Information:
Contact: Mary
Hefei Huanxin Technology Development Co,Ltd
http://hfhuanxin.en.alibaba.com
Mob:+8618225650963
Package & Shipping:
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers' destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
Company information
Hefei Huanxin Technology Develop Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.
Hefei Huanxin Technology Development Co., Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.
Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
