| Prod Model: |
SKN130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of Chip: |
Molybdenum |
| Warranty: |
180 Days |
| Certificates: |
CE RoHS ISO |
| Heat Dissipation Performance: |
Good |
| Vtm: |
Small |
| Manufacturing Technology: |
Logic IC |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
International Standard Package |
| Application: |
Machine Tool Controls, Converters |
| Model: |
Skn130 |
| Batch Number: |
2015+ |
| Brand: |
Shangjing |

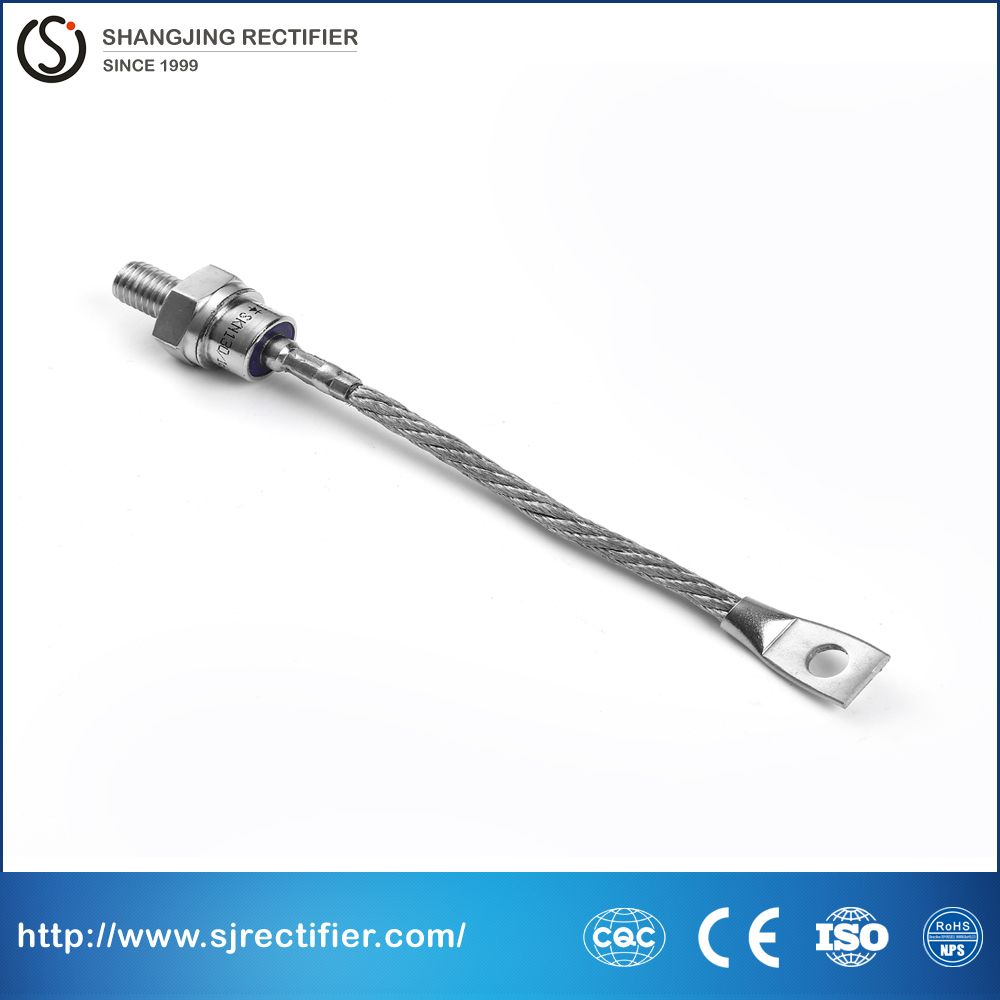

Product Description
Features1.High surge current capability
2.Stud cathode and stud anode version
3.Wide current range
4.Inch device available
Typical Applications1.Machine tool controls
2.Battery charges
3.Converters
4.Motor control
5.Welders
6.Phase control applications in converters
7.Lighting circuits
FAQ1.A:Could I put my own logo on it?
Q:Sure, customers' logo can be printed or put on the items.
2.A:How about the longevity of the items?
Q:CE, RoHS, ISO, etc.
3.A:Could you supply original import semi-conductors?
Q:Yes, the variety of original import semi-conductors could be provided with clients, such as Westcode, Eupec, Mitsubishi, Toshiba, Poseico, etc.
4.A:Could I buy 1pc sample order and small order?
Q:Of course, We support sample order and small order, especially for new customers under certain condition.
5.A:How much for 1pc sample?
Q:Based on what kind of sample the client nees.
6.A:How long does it take to make a sample?
Q:Normally within one week.
Thanks for your reading. If any product meets your need, welcome to send us an email. We are sure any of your information will be replyed as soon as possible.| Type | IF(AV) | VFM/IFM | IF(RMS) | VRRM | IRRM | Rjc | Tj | M2 | Wt | Outline |
| THS55° C | 25° C |
|
|
|
|
|
|
|
| A | V | A | A | V | mA | ° C/W | ° C | kN | kg |
| SKN26 | 25 | 1.15 | 75 | 40 | 200-1200 | ≤ 12 | ≤ 1.2 | -40
~
+125 | ≤ 1.0 | 0.010 | SKD4 |
| SKR26 | 25 | 1.15 | 75 | 40 | 200-1200 | ≤ 12 | ≤ 1.2 | ≤ 1.0 | 0.010 |
| SKN46 | 45 | 1.30 | 135 | 75 | 200-1600 | ≤ 10 | ≤ 1.0 | ≤ 2.0 | 0.025 | SKD5 |
| SKR46 | 45 | 1.30 | 135 | 75 | 200-1600 | ≤ 10 | ≤ 1.0 | ≤ 2.0 | 0.025 |
| SKN71 | 70 | 1.35 | 210 | 115 | 200-1600 | ≤ 12 | ≤ 0.8 | ≤ 2.0 | 0.025 |
| SKR71 | 70 | 1.35 | 210 | 115 | 200-1600 | ≤ 12 | ≤ 0.8 | ≤ 2.0 | 0.025 |
| SKN45 | 45 | 1.30 | 135 | 75 | 200-1600 | ≤ 10 | ≤ 1.0 | ≤ 2.0 | 0.050 | SKD5L |
| SKR45 | 45 | 1.30 | 135 | 75 | 200-1600 | ≤ 10 | ≤ 1.0 | ≤ 2.0 | 0.050 |
| SKN70 | 70 | 1.35 | 210 | 115 | 200-1600 | ≤ 12 | ≤ 0.8 | ≤ 2.0 | 0.050 |
| SKR70 | 70 | 1.35 | 210 | 115 | 200-1600 | ≤ 12 | ≤ 0.8 | ≤ 2.0 | 0.050 |
| SKN100 | 100 | 1.50 | 300 | 160 | 200-1600 | ≤ 15 | ≤ 0.5 | ≤ 12 | 0.120 | SKD8 |
| SKR100 | 100 | 1.50 | 300 | 160 | 200-1600 | ≤ 15 | ≤ 0.5 | ≤ 12 | 0.120 |
| SKN130 | 130 | 1.40 | 390 | 210 | 200-1600 | ≤ 15 | ≤ 0.4 | ≤ 12 | 0.120 |
| SKR130 | 130 | 1.40 | 390 | 210 | 200-1600 | ≤ 15 | ≤ 0.4 | ≤ 12 | 0.120 |
| SKN240 | 240 | 1.25 | 720 | 400 | 200-1800 | ≤ 15 | ≤ 0.2 | ≤ 25 | 0.240 | SKD9 |
| SKR240 | 240 | 1.25 | 720 | 400 | 200-1800 | ≤ 15 | ≤ 0.2 | ≤ 25 | 0.240 |
| SKN320 | 320 | 1.40 | 960 | 210 | 200-1800 | ≤ 20 | ≤ 0.1 | ≤ 30 | 0.450 | SKD10 |
