1,Voltage:6V-36V
2,No load speed:1000-10000 r/min
3,Rated torque:0.01-0.8Nm
4,Rated speed:3000-8000r/min
5,Rated current:0.5A-20A
6,Environment conditions:-10-40ºC
7,Magnet material:Bonded NdFeB
8,Insulation Class:B
9,OEM and ODM are available for us.

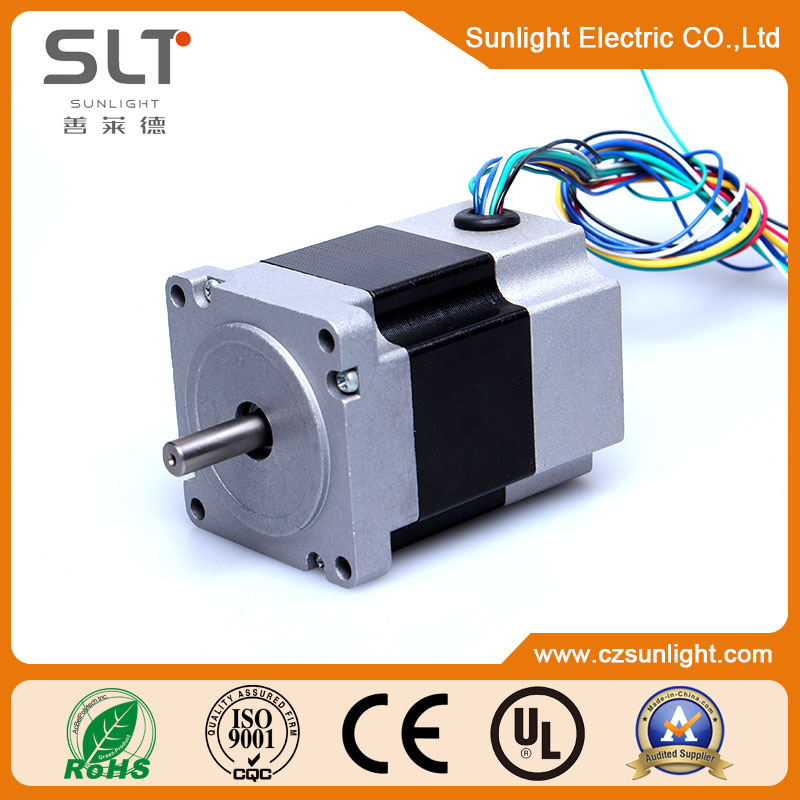

Advantage of Widely Brushless DC Geared Motor Apply for Office Equipment
1,Low interference
2,low noise ,smooth operation
3,long life,low maintenance cost
4. Used widely
Widely Brushless DC Geared Motor Apply for Office Equipment Specifications
SLT62BL-Brushless Motor |
Model | SLT62BL01 | SLT62BL02 | SLT62BL03 | SLT62BL04 |
Voltage | V | 36 |
No load speed | rpm | 5200 | 5200 | 5200 | 5200 |
Rated torque | Nm | 0.11 | 0.22 | 0.32 | 0.44 |
Rated speed | rpm | 4000 | 4000 | 4000 | 4000 |
Rated current | A | 1.9 | 3.3 | 4.8 | 6.6 |
Torque(max) | Nm | 0.3 | 0.55 | 0.8 | 1.05 |
At Torque (max )Current | A | 4.5 | 7.4 | 9.5 | 14.2 |
Rotor inertia | Kgmm² | 7.5 | 11.9 | 17.3 | 21 |
Black-EMFconstant | V/krpm | 4.5 | 4.82 | 4.87 | 4.87 |
Torque Constant | Nm/A | 0.074 | 0.079 | 0.080 | 0.080 |
Resistance(20ºC) | | ohm | 1.65 | 0.7 | 0.48 | 0.35 |
Weight | Kg | 0.5 | 1 |
L1 | mm | 61.50 | 81.50 | 101.50 | 121.50 |
Rotor:La | mm | 20 | 40 | 60 | 80 |
Model | No load speed(rpm) | Rated torque(Nm) | Rated speed(rpm) | Rated current(A) | Torque(max)(Nm) | Rotor inertia(Kgmm²) | Black-EMFconstant(V/krpm) | Torque Constant(Nm/A) | Resistance(20ºC)(ohm) | Weight (Kg) | Rotor:La(mm) |
SLT42BL01 | 5000 | 0.063 | 4000 | 1.65 | 0.189 | 5.2 | 3.17 | 0.045 | 1.42 | 0.29 | 20 |
SLT42BL02 | 5000 | 0.125 | 4000 | 3.4 | 0.375 | 9.3 | 3.13 | 0.044 | 0.73 | 0.47 | 40 |
SLT42BL03 | 5000 | 0.185 | 4000 | 4.5 | 0.5 | 13.4 | 3.28 | 0.73 | 0.39 | 0.65 | 60 |
SLT60BL01 | 5200 | 0.11 | 4000 | 1.9 | 0.3 | 7.5 | 4.5 | 0.074 | 1.65 | 0.5 | 20 |
SLT60BL02 | 5200 | 0.22 | 4000 | 3.3 | 0.55 | 11.9 | 4.82 | 0.079 | 0.7 | 0.5 | 40 |
SLT60BL03 | 5200 | 0.32 | 4000 | 4.8 | 0.8 | 17.3 | 4.87 | 0.08 | 0.48 | 1 | 60 |
SLT60BL04 | 5200 | 0.44 | 4000 | 6.6 | 1.05 | 21 | 4.87 | 0.08 | 0.35 | 1 | 80 |
SLT62BL01 | 3900 | 0.22 | 3200 | 4.5 | 0.66 | 19 | 4.3 | 0.062 | 0.57 | 0.9 | 20 |
SLT62BL02 | 3700 | 0.4 | 3000 | 7.1 | 1.1 | 37.5 | 4.6 | 0.065 | 0.24 | 1.3 | 40 |
SLT62BL03 | 3700 | 0.65 | 3000 | 12.7 | 1.8 | 55.8 | 4.53 | 0.061 | 0.13 | 1.8 | 60 |
Widely Brushless DC Motor Apply for Office Equipment Applications
A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Other Fields.
Compared with brush motor :
1, Widely applicable scope
Brushless motor:Is often used in the control request is higher, higher speed of devices, such
as model aircraft, precision instruments and meters for motor speed control strictly, spins at
very high device.
Brush motor :Usually brush motor power equipment are used, such as hair dryer, electric motor factory, household smoke lampblack machine, etc. Series motor speed also can achieve very high, but due to the wear of carbon brush, brushless motor working life is better than brush motor
2,Long working life :
Brushless motor:Usually life in tens of thousands of hours in the order of magnitude, but due to the different bearing brushless motor service life are quite different.
Brush motor:Usually brush motor have to use limit will need to replace carbon brush ,otherwise easy to cause bearing wear.
3:High efficiency
Brushless motor:Is usually a digital frequency conversion control, strong controllability, from a few rotations per minute (RPM), to the tens of thousands of revolutions per minute can be very easy to implement.
Brush motor :The old general carbon brush motor working speed constant after start, speed is not easy adjusted, series motor can reach 20000 r/min.
4,Energy conservation
Contrast, brushless motor than series motor is controlled by frequency conversion technology energy saving a lot of, the most typical is the frequency conversion air conditioning and refrigerator.
5: Easy Maintenance
Brush motor Need to replace carbon brush, if the change is less than when causes the damage of the motor, brushless motor, have long service life and are usually have more than 10 times of brush motor
