WiFi GPS Tracker, Vehicle Tracker
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
WIFI GPS tracke for commercial vehicles. The OCT900-WIFI is a miniature, self contained, low cost, passive GPS tracking device, providing automatic vehicle location that logs GPS tracking data and delivers it automatically over a Wi-Fi network.Main functions:
GPS Tracking and Logging with Programmable Rate
♦ Automatically Downloads using WiFi
♦ 8G Memory for data logging
♦ 5 inputs for detection
♦ 5 outputs for control
♦ Speed control
♦ 3 USB ports
♦ 2 Analog ports
♦ Internal everything
Passive GPS Tracking TechnologyA passive GPS tracking system will monitor location and will store its data on journeys based on certain types of events. So, for example, this kind of GPS system may log data such as where the device has traveled in the past 12 hours. The data stored on this kind of GPS tracking system is stored in memory card which can then be downloaded to a computer by Wi-Fi at a later date for analysis. Passive GPS tracking is ideal for fleets that need to monitor asset activity after-the-fact and not necessarily needing to know the real-time GPS location and activity. Or by using passive GPS tracking for a portion or all of your fleet, and utilizing the CES real-time GPS devices on your high priority assets, your fleet can achieve the cost saving of passive GPS technology along with real-time GPS location activity for real-time asset tracking. The solution of passive GPS tracking and real-time GPS tracking allows you take control of your fleet assets and expenses.TECHNICAL SPECIFICATION| | Dimension | | 60mmx85mmx30mm | | Weight | | 145g |
| | Charging voltage | | +9V - +35V / 1.5A | | GPS Chipset | | Latest GPS SIRF-Star III chipset |
| | Back up battery | | 550mAh lithium-ion battery | | Operating temp | | -20°C to 55°C |
| | Humidity | | 5%-95% | | GPS Sensitivity | | 158Db |
| | LED indicator | | 2 indicators show GSM/GPS status | | GPS Frequency | | L1, 1575.42 MHz |
| | Channels | | 20 channel all-in-view tracking | | Interface | | 5 input and 5 output, 2 AD, 3 USB port |
| | Velocity Accuracy | | 0.1 m/s | | Position Accuracy | | 10 m, 2D RMS |
| | Frequency | | 850/900/1800/1900Mhz GSM | | Time Accuracy | | 1 us synchronized to GPS time |

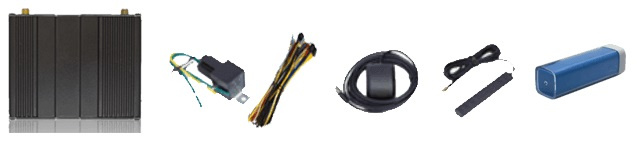

STANDARD PACKAGE CONTENT 1 x GPS tracker
1 x GPS Antenna
1 x GSM Antenna
1 x Relay
1 x Power I/O cable
Optional Accessories
SD card, MIC, Speaker, Fuel sensor, USB cable.
| Prod Model: |
OCT900-WIFI |
| Dimention Of Control Unit: |
60mmx85mmx30mm |
| Interface: |
5 Input and 5 Output, 2 Ad, 3 USB Port |
| GPS Sensitivity: |
158dB |
| Channels: |
20 Channel All-in-View Tracking |
| Velocity Accuracy: |
0.1 M/S |
| Charging Voltage: |
+9V – +35V / 1.5A |
| Time Accuracy: |
1 Us Synchronized to GPS Time |
| GPS Frequency: |
L1, 1575.42 MHz |
| GSM Frequency: |
850/900/1800/1900MHz GSM |
| Other Network: |
WiFi |
Guangzhou Zhuo Kai Electronic Technology Limited Company, a professional electronic technology company, is dedicated to IT promotion in enterprise, and Global Position System (GPS) and wireless mobile communication (GSM/GPRS), GPS tracking system, and Security monitoring system, with its unrivaled, proven solutions.
We offer specialized information integration solutions: Enterprise-internal management system, Comprehensive wiring, System integration, etc, especially in GPS real-time tracking system.
Guangzhou Zhuo Kai Electronic Technology Limited Company, the premier worldwide provider of wireless tracking and recovery systems for mobile assets, is the leader in the global intelligent tracking system. For example, construction and management of vehicle tracking centre, special vehicles (taxies, securicars, construction vehicles, police cars, tourist cars, etc. ), employee checking attendance, elders and kids protection and rescue, precious assets tracking and so on. With real-time tracking system, clients can receive best professional tracking and location service.
Company History
China Electronics Technology Group Corporation NO. 7 Institute
China Electronics Technology Group Corporation, founded in 1959, is the institute of China army tactical communication, China mobile communication, and first-class national military research centre.
Qian Long Electronics Technology Limited
In 2005, based on national market demands for IT promotion in enterprise and internet marketing, Qian Long Electronics Technology Limited was founded, affiliated to China Electronics Technology Group Corporation NO. 7 Institute.
Zhuo Kai Electronics Technology Limited
In 2007, in order to expand information technology application, Qian Long Electronics Technology Limited and Guangdong Information Industry Department decided to found Zhuo Kai Electronics Technology Limited, which is dedicated to IT promotion in enterprise, and Global Position System (GPS), wireless mobile communication (GSM/GPRS), GPS tracking system, and Security monitoring system. Also, it shoulders the responsibility to explore oversea market.
Accomplishments
1. In 2007, we succeeded in completing lots of projects, such as construction of center machine room for China Telecom in Haizhu Area, Comprehensive wiring project for Guangzhou gymnasium, Digital Camera monitoring system for Shenzhen Longgang high school, and Monitoring centre for Police station in Guangzhou. All the projects are successful and attain many praises from clients for both products quality and after-sale service.
2. In 2007, Zhuo Kai Electronics Technology Limited became member in China Software Association, Guangdong Information Association, Guangdong Electronic Commerce Association, and Guangdong Computer Chamber of Commerce.
3. In 2008, we succeeded in putting into markets GSM alarm, CT01, PT01, DIY tracking and monitoring system, GPS tracking system, fire monitoring centre, vehicle management centre, and GSM home alarm. Our products are widely applied by Tobacco Company and Quality Supervision Bureau and achieve great success.
4. In 2009, we developed GPS, GSM/GPRS products, widely applied in bus station voice announcement, mobile assets management, vehicle state examination.
Zhuo Kai Electronics Technology Limited is the premier worldwide provider of tracking and recovery systems for valuable mobile assets. Since 2007, it has earned a reputation as the proven global leader in the market.
