| Prod Model: |
6H51 |
| ID Of The Core: |
50 or 76mm |
| Product Type: |
Film, Roll |
| Tensil Strength: |
Different with Thickness |
| Hardness: |
Soft |
| Smell: |
No. |
| Sample Size: |
A4 or Others |
| Application: |
Motor |
| Type: |
Insulation Film |
| Chemistry: |
Hybrid Insulation |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
20KV~100KV |
| Material: |
Polyimide Film |
| Classification: |
H Class-N |
| Color: |
Amber |
| Brand: |
Toyo |
Product Description
Packaging & Delivery
| Packaging Details | Standard Package: Wooden Pallet, Wooden Case; We can also pack it according to the customers' requirements. |
| Delivery Detail | 3-7 days |
Specifications
1-10mil Polyimide Film:
Thickness: 0.025 - 0.250mm, width: 10-1000mm
Can customize thickness
Good flatness
Product Description

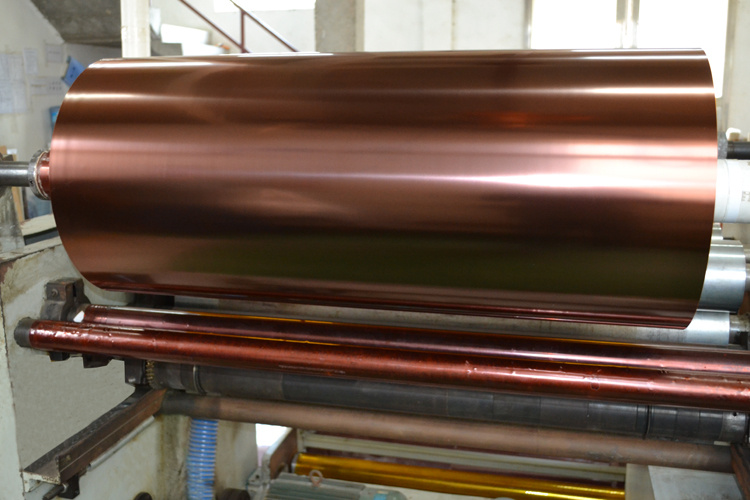

1-10mil Polyimide Film:
Polyimide film (PI) is outstanding in comprehensive Performance and maintains a unique position in commonly used electrical and electronic insulation films.It has superior heat resistance and cold endurance, keeping a normal operation characteristic even in a temperature range of -270 - +400ºC.The properties of this material in aspects like electrical insulation, radiation hardening,corrosion prevention and self-lubrication are also excellent.
For these reasons you will find its wide application in various kinds of motors, electrical apparatus and wires and cables to be used under extreme conditions and need high operational reliability. Among them are planes,space crafts, nuclear industries, nuclear submarines, electric locomotives, petrochemical industries,electronic chemicals like LCD and plasma electronics, mobile phones, computers and digital driving, etc. Our company is characteristic by extra-thick and extra-wide films except common used products. Polyimide film (PI) is outstanding in comprehensive Performance and maintains a unique position in commonly used electrical and electronic insulation films.It has superior heat resistance and cold endurance, keeping a normal operation characteristic even in a temperature range of -270 - +400ºC.The properties of this material in aspects like electrical insulation, radiation hardening,corrosion prevention and self-lubrication are also excellent.
Packaging & Shipping
1-10mil Polyimide Film:
Normally the out - packaging for the goods is wooden pallet or wooden case, we can deliver it by air or by ship.
Airport: Beijing, Tianjin, Qingdao, Nanjing, Shanghai, Guangzhou, Shenzhen
Sea Port: Tianjin,Qingdao, Shanghai, Ningbo, Guangzhou

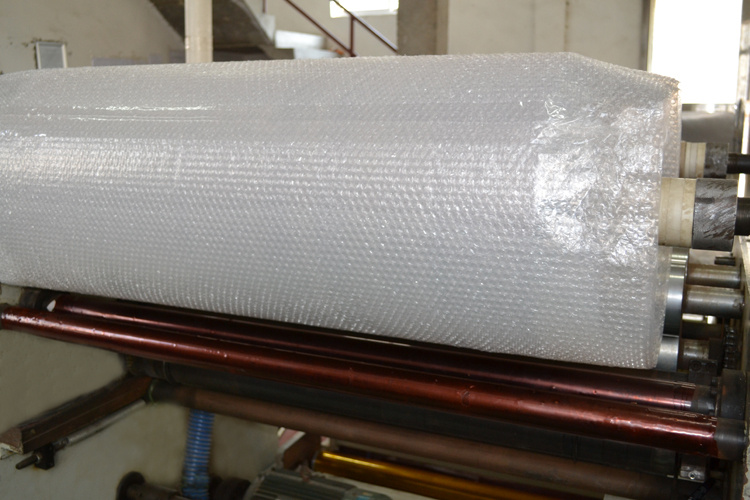

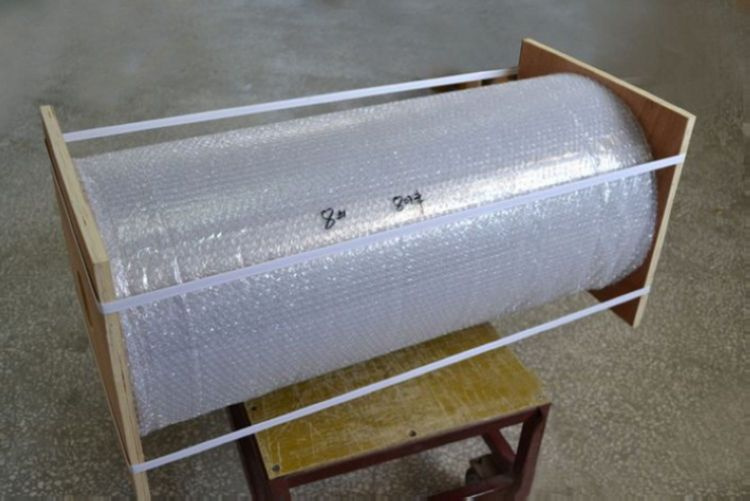

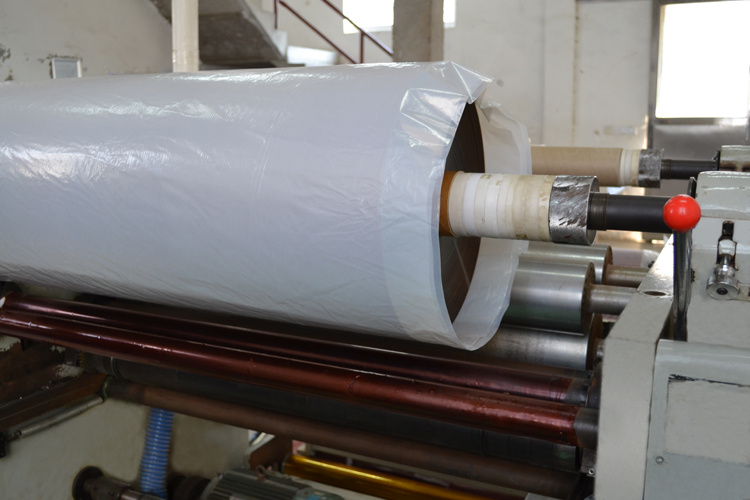

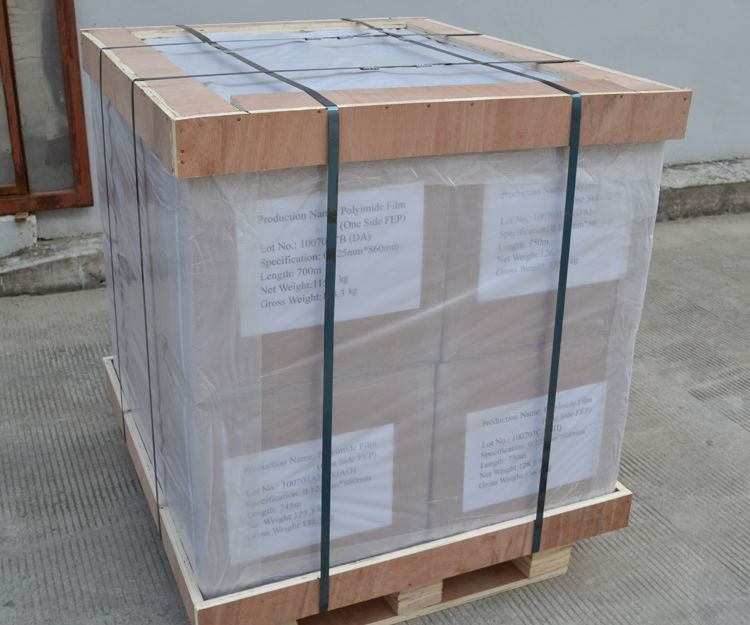

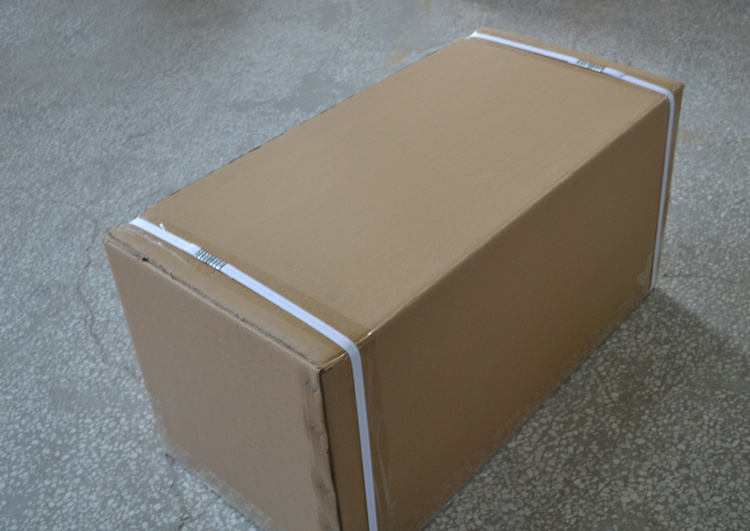

Packing Type Photo is as the following:
We are major in insulation material of various classes, from B to F, and from F to H, TOYO'S products are widely used in Motors, Generators, Welders, Electrical Heaters, and etc. And provide assurances for their long time, stability work.
The test results of from SGS Shanghai branch indicate that the TOYO's products are in conformity with EU RoHS Directive 2002/95/EC and subsequent revision directives. And our product conforms to REACH regulation's requirements (the newest version) of European Union after tested, and also passed UL certification of American and Canada.
" TOYO" Team was composed of many senior electrical engineers, and insist on response to every client's enquiry 100%. Maintaining good cooperative relationship with main manufacturers in domestic for long term, and this provides " TOYO" With stable product quality; Reasonable prices; Timely supply.
We started to do the foreign trade since 2014, because of the good faith, now we have had so many customer from home and abroad. We are also planning to making the investment to enhance the relationship with our key suppliers, and meet our customer's requirements.
Welcome you to contact us and discuss business at any time.
