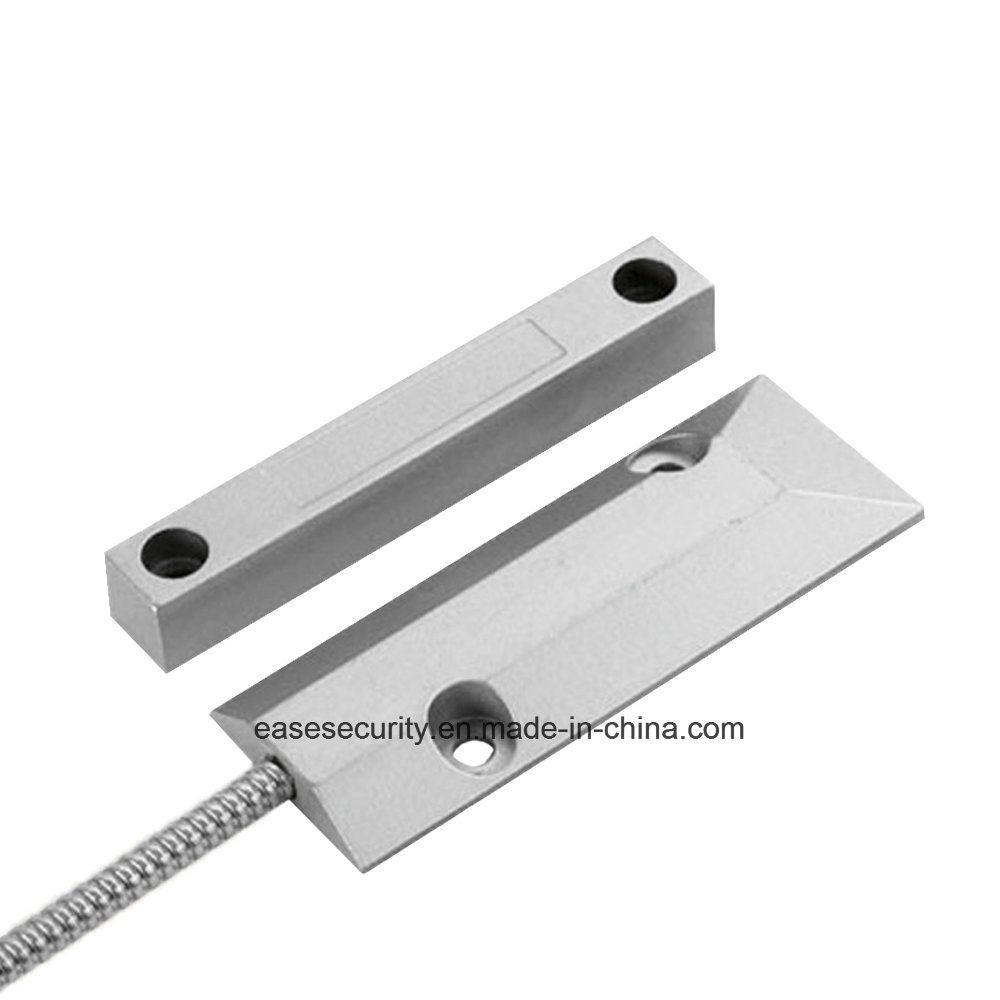

Wired Magnetic Switch Sensor for Rolling Door Garage (SC-55Z)

Name: Wired Magnetic Switch Sensor for Rolling Door Garage (SC-55Z)
Brand: all-electronics-online.com
SKU: 724560372
Availability: InStock
Rating: 4.5 (66 reviews)

Price:	US $ 0.8-1/Pairs
Min Order:	10/Pairs
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Item Name
Wired Magnetic Switch Sensor for rolling door garage (SC-55Z)

Parameters
Dimension:106*38*10mm (switch)
106*16*16mm(magnet)
Housing:Metal(Alloy-Zn ),grey
Gap:50-70mm
60-70mm available
Output :N.C.
:N.O. & Changeover available
Leads:1007UL22AWG530mm
This Overhead Rolling door Magnetic Switch Scroll Magnetic Switch Can work with any kind alarm system with wired zones.

Roller shutter sensor,heavy duty overhead door contact sensor,

for Mounting on Door Tracks,

Armored cable in 380mm or 480mm length

Wider Gap for reduced false alarms

Closed Loop, open loop and SPDT types

Certificates:FCC,CE ,ROHS

Surface mounted with screws, leads 530mm standard length, with armored cover cable of 380mm or 480mm

Diagram SC-61L

Diagram SC-60

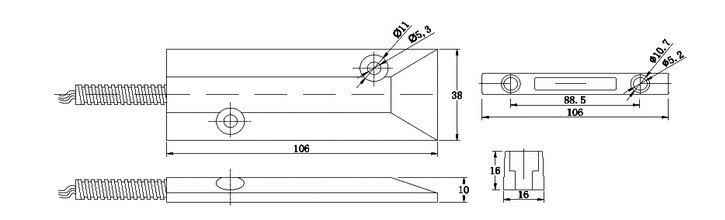

Diagram SC-55Z

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PAIRS)
NC-ZN-6070	NC	zinc+ABS	60-70	0.5A/100V/10W/200mΩ	0
N0-ZN-5060	NO	zinc+ABS	50-60	0.2A/30V/3W/200mΩ	500
COM-ZN-5060	Changeover	zinc+ABS	50-60	0.2A/30V/3W/200mΩ	500

Prod Model:	SC-55Z
Gap:	50-70, 60-70 Optional
Can Be Installed:	Window or Door
Output:	N.C. & N.O. & Changeover Available
Switch Dimension:	1063810mm
Magnet Dimension:	1061616mm
Certificates:	Ce, FCC, RoHS
Signal Transmission:	Wired Alarm
Working Mode:	Passive
Sensor Type:	Electric Alarm
Principle:	Photoelectric
Wires:	Two-Wires
Standard:	Standard
Size:	86 Type
Certification:	CE
Type:	Anti-Theft Alarm
Application:	Indoor
