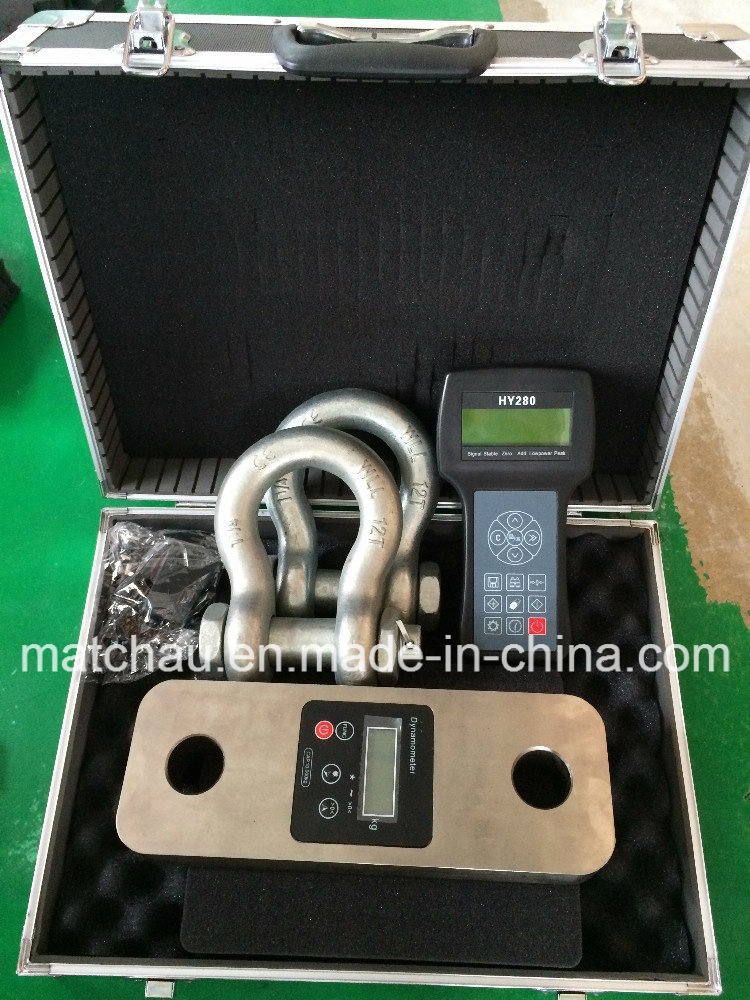

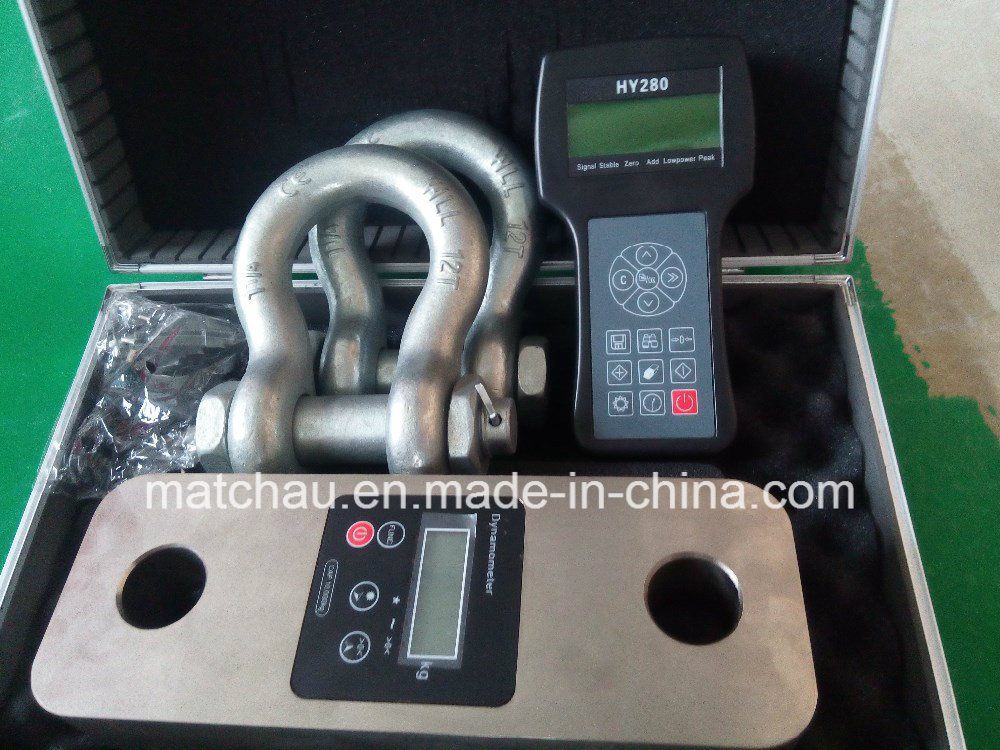

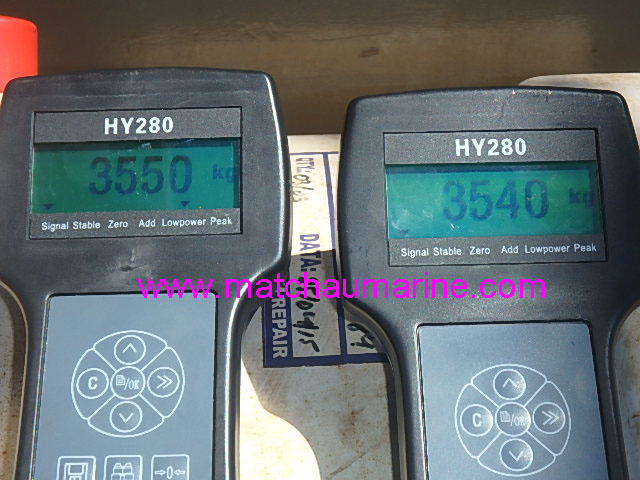

Wireless Electronic Scale For Load TestingProduct Description
Main Technical Data:
Display: 25mm (1'') 5digits LCD
Power On Zero Range: 20% F. S.
Manual Zero Range: 4% F. S.
Tare Range: 20% F. S.
Stable Time: ≤ 10seconds;
Overload Indication: 100% F. S. + 9e
Max. Safety Load: 125% F. S.
Ultimate Load: 400% F. S.
Battery Life: ≥ 40 hours
Battery Type: "LR6(AA)"size alkaline batteries. 1.5Vx3
Operating Temp.: - 10º C ~ + 40º C
Operating Humidity: ≤ 85% RH under 20º C
Remote Controller Distance: Min. 15m
Battery Of Remote Controller: 7AAA battery, 1.5V× 2
Model | Cap.(T) | Division Valve
(kg) | A
(mm) | B
(mm) | C
(mm) | D
(mm) | φ
(mm) | H
(mm) | Material |
| MC-SW6-01 | 1 | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminium Alloy |
| MC-SW6-02 | 2 | 1 | 245 | 116 | 37 | 190 | 43 | 335 | |
| MC-SW6-03 | 3 | 1 | 260 | 123 | 37 | 195 | 51 | 365 | |
| MC-SW6-05 | 5 | 2 | 285 | 123 | 57 | 210 | 58 | 405 | |
| MC-SW6-10 | 10 | 5 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel
Stainless Steel |
| MC-SW6-20 | 20 | 10 | 420 | 128 | 74 | 260 | 127 | 660 | |
| MC-SW6-30 | 30 | 10 | 420 | 138 | 82 | 280 | 146 | 740 | |
| MC-SW6-50 | 50 | 20 | 465 | 150 | 104 | 305 | 184 | 930 | |
| MC-SW6-100 | 100 | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | |
| MC-SW6-200 | 200 | 100 | 725 | 265 | 183 | 440 | 280 | 1380 | |
| MC-SW6R-250 | 250 | 100 | 800 | 300 | 200 | 500 | 305 | 1880 | |
| MC-SW6R-300 | 300 | 200 | 875 | 345 | 200 | 500 | 305 | 1955 | |
| MC-SW6R-500 | 500 | 200 | 930 | 570 | 200 | 500 | 305 | 2065 | |
if you have any other requirements, please feel free to contact me, many thanks....
Best regardsIris,
Zhenjiang Matchau Marine Equipment Co.,Ltd.
Tel: +86-511-85785962
Mobile: +86 18652868760
Fax: +86-511-86120098
Website: www.matchaumarine.com
Zhenjiang Matchau Marine Equipment Co., Ltd is a both manufacturer and export company. We are specialized in producing proof load testing water filled weight bags and marine foam life jackets and inflatable life jacket. Besides, we've also obtained excellent sales performance and rich sales experience of foreign trade business in marine life saving products, fire-fighting equipment, dock rubber products, mooring products, deck machinery with accessories, navigation, communication and other related marine products.
MATCHAU water weight bags have various kinds for choose:
Lifting equipment testing:
Our range of MATCHAU water-filled proof load bags - with capacities from 0.25 ton to 50 tonnes - provides an easy, safe and highly cost effective means of load-testing all kinds of lifting equipment.
Water-filled bags offer a significant advantage over alternative methods in that fluid can be applied gradually and precisely. This means that potential problems can be identified long before maximum load is reached.
Proof Load testing
There have been several serious accidents during proof load testing involving Sub Standard Equipment which was simply not designed for the physical demands of proof load testing.
The use of MATCHAU water filled proof load bags for proof load testing is recognised world wide as the most effective and safest solution.
Lifesaving equipment testing:
At MATCHAU we've developed systems specifically to apply a test load to life saving appliances. MATCHAU Lifeboat test bags and proof load bags provide controlled loading and unloading with minimal handling, resulting in minimum downtime.
Lifeboat testing
Our lifeboat system provides a safe, fast, simple and accurate way of proof load testing, with no need for personnel to be in the craft. Loading is achieved with a control manifold and pumping system, and measured by calibrated flowmeter.
Davit testing
For static and dynamic davit testing, MATCHAU water filled proof load bags allow gradual filling so you can spot potential problems before you get into trouble. Water provides 98% of the weight at full load - so empty bags are light and easy to handle, transport and store.
Also we have load measurement for testing, and it is different capacity making accoring to customer's requirements.
With extensive expertise and experience in load and strain measurement, we offer a comprehensive range of products for sale.
(1)Load Cell Shackles and Load Links up to 500 tonne
(2)Calibrated Flowmeters - alternative mechanical load measurement
(3)Running line tensionmeters - constant load reading on running lines
Our products have been approved by classification societies and government administration, also have got certifications from CCS, GL, BV, DNV, LR, USCG, KR, RINA, NK, EC, etc...
With the concept of customer first, we are committed to providing our customers with urgent response, advanced technology, reasonable price with reliable quality products and perfect after-sales services.
As a professional marine products supplier, Matchau Marine is your reliable partner and you' Ll obtain one-stop solution here!
