| Prod Model: |
F24-10D |
| Application: |
Special Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
18~65V AC/DC,65~440V |
| Material: |
Glass Fiber Reinforced Nylon-6 |
Product Description

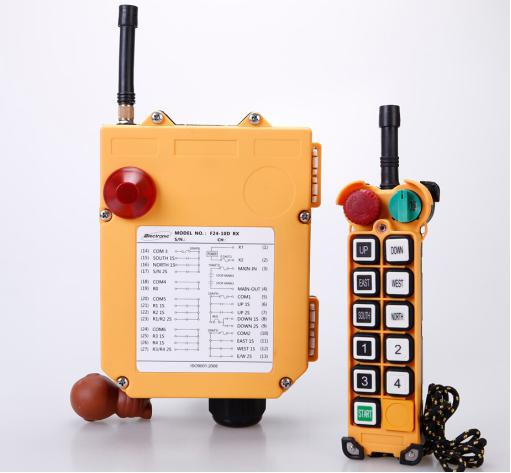

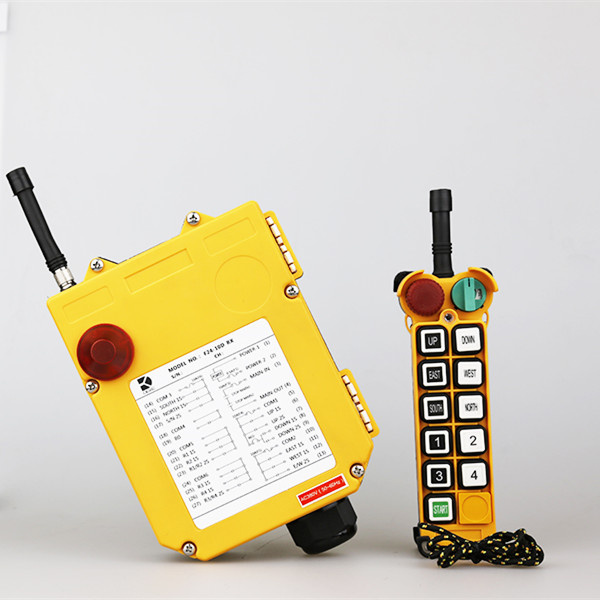

Wireless hoist remote control switch transmitter and receiver
1. Technical specifications
1.1 Basic information:
Control distance | Up to 100m |
Control Motions | 16 |
Frequency generation | Crystal |
Structure | Glass-Fiber |
Operation frequency | 310.0325-331.165 MHz OR 433Mhz |
Certificates | CE, FCC, ISO9001:2008 |
Unique code | Over 4.3billon unique ID codes . |
Working temperature | -35°C___+80°C |
Output capacity | Full sealed relay output with 5 amperes |
1.2 Transmitter specifications
1. Dimensions: 239*65*65mm
2. Weight: 255g
3. Material: glass-fiber
4. Protection degree: IP65
5. Power supply: DC 3V (2AA Batteries)
1.3 Receiver specifications
1. Power supply: AC380V/36V/220V/110V/48V/24V or AC12V/DC12V (±20%)
2. Dimensions: Size:212*164*78mm
3. Weight: 1400g
4. Material: glass-fiber
5. Protection degree: IP65
2. Standard configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual .
3.Products Application:

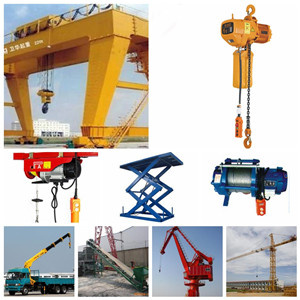

Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
4. Products Features:
* 10 Double speed push button + one START button
* control points are up to 16
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*up/down ,east/west , south/ north push button can be set mutual inhibition or not .
*power button can be set start,speed up,jump strokes, ordinary etc.
*spare 1-2, 3-4 key can be set ordinary, interlock,jump strokes,switch etc.
5. Notes:

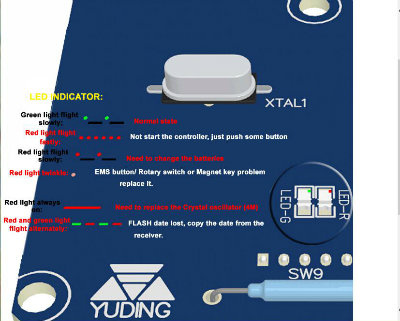

The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
6. Packing
6 set per carton
Carton size: 77*48*34cm
7. Self-inspection
8.Company Advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.

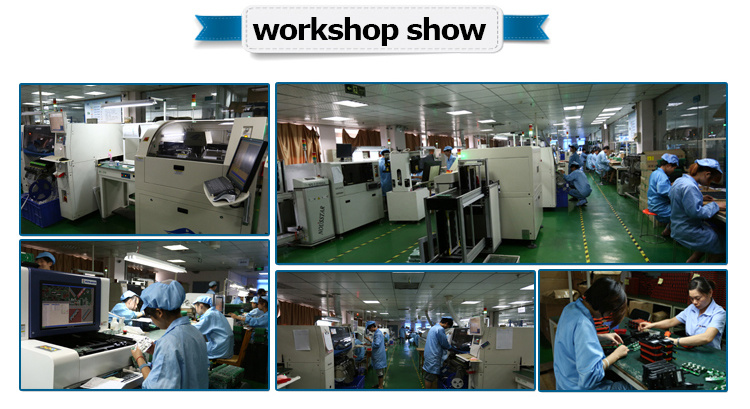

3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
